Specifications

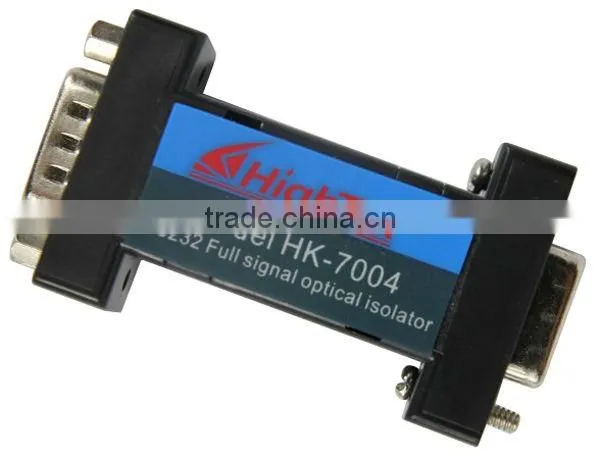

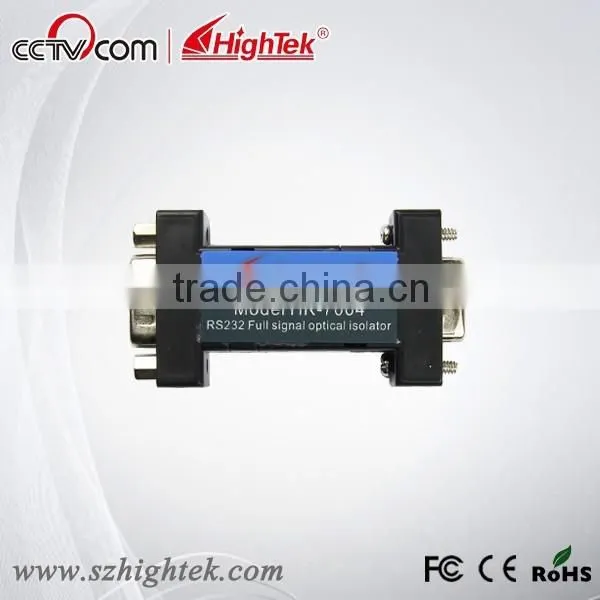

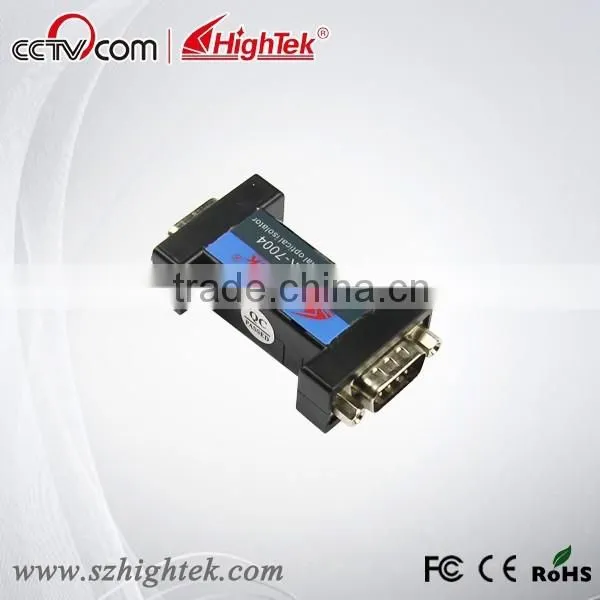

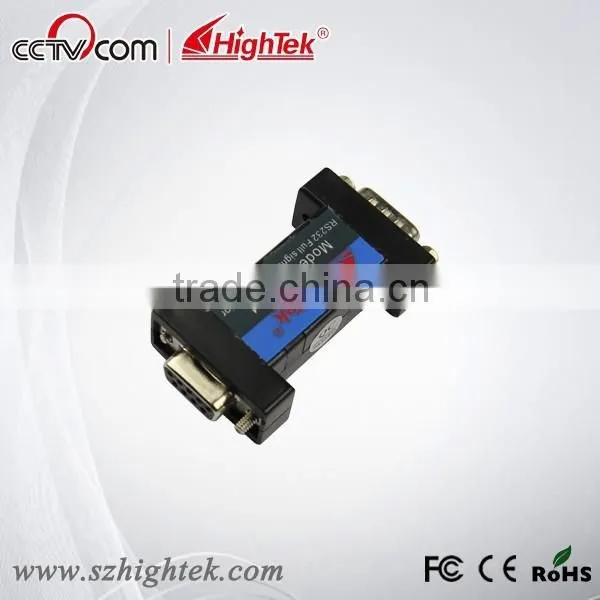

whole-wire rs232 db9 signal isolatorWhole line isolation
Support factory OEM
13-year brand
Lightning protection certificate

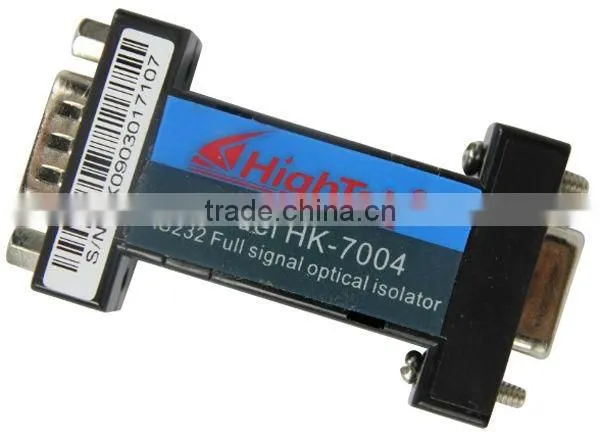

whole-wire rs232 db9 signal isolator details:
Product characteristics
1. An advanced serial stealing technology, efficiency up to 90 % or more ;
2. The unique serial port protection circuit , anti-static , anti-lightning , surge suppression, may be charged hot ;
3. The communication baud rate from 0 ~ 19.2Kbps adaptive ;
4. Built 600W/ms anti-lightning protection and 15KV antistatic protection ;
6. Industrial design , operating temperature range : -45 °C ~ 85 °C, preferably imported components.
Product parameters
1. Interface : Conforms to EIA RS-232 and CCITT V.24 asynchronous protocols
2. Connector: DB9 connector used on both sides
3. Transfer Mode : Asynchronous , full duplex, fully transparent
4. Isolation Voltage : 2500Vrms continuous pulse or 500VDC
5. Transfer Rate : 300BPS-115200BPS
6. Use environment: -40 °C to 85 °C, relative humidity 5 % to 95%
Connector and signal
Pin distribution at RS-232 DTE end
DB9 Male |
RS-232C Interface Signal |
1 |
Protection grounding cable |
2 |
Signal out SOUT(TXD) |
3 |
Signal in SIN (RXD) |
4 |
Data Terminal ready (DTR) |
5 |
Signal Grounding (GND) |
6 |
Data Device Ready (DSR) |
7 |
Request To Sending(RTS) |
8 |
Clear To Sending (CTS) |
9 |
Ring Indication RI |
Pin distribution at RS-232 DCE end
DB9 Female |
RS-232C Interface Signal |
1 |
Protection grounding cable |
2 |
Signal in SIN (RXD) |
3 |
Signal out SOUT(TXD) |
4 |
Data Terminal ready (DTR) |
5 |
Signal Grounding (GND) |
6 |
Data Device Ready (DSR) |
7 |
Request To Sending(RTS) |
8 |
Clear To Sending (CTS) |
9 |
Ring Indication RI |
Use of methods

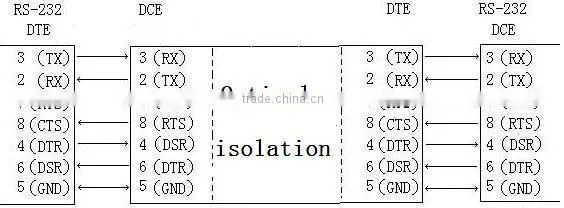

HighTek HK-7004 is DB9/DB9 structure , DB9 hole interface is defined as: 2 feet TX, 3 feet RX, 4 feet DSR, 6 feet DTR, 7 feet CTS, 8 feet RTS, 5 pin GND, use the DB9 female end inserted in the DB9 pin RS-232 serial port , DB9 pin holes with other RS-232 DB9 serial port . Specific wiring as follows:
Above wiring diagram, can be considered HighTek HK-7004 isolated converter DB9 DB9 pin holes and the standard DCE and DTE device, so you need the original wiring of the serial communication link will HighTek HK-7004 series with the available.
Warranty
1. Products can replace within one month after sale;
2. One year warranty after sale;
3. The malfunction and damaged caused by the other barriers (man-made factors or external device) are not warranted
