Specifications

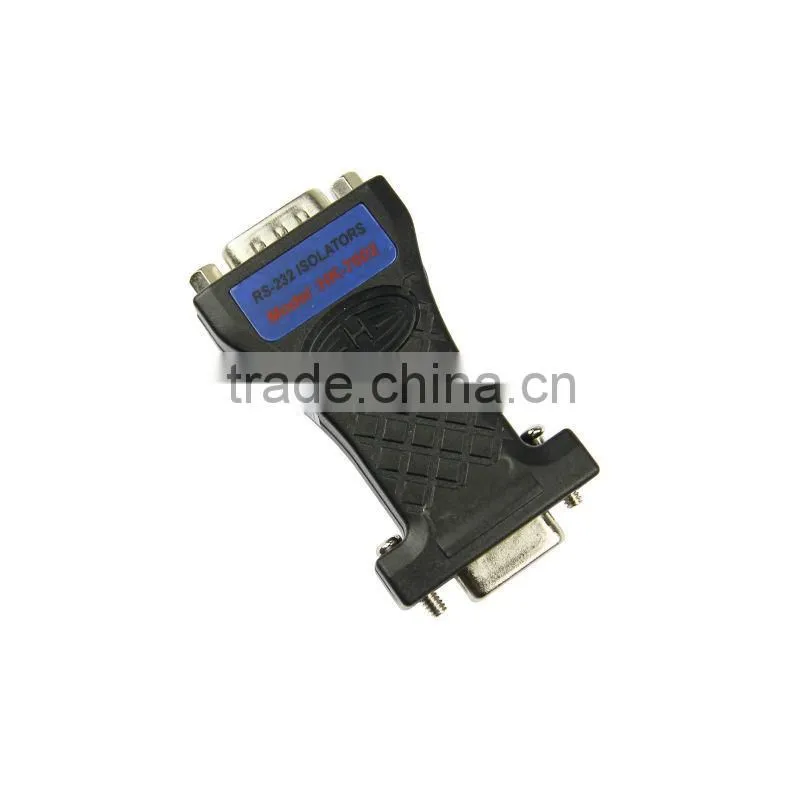

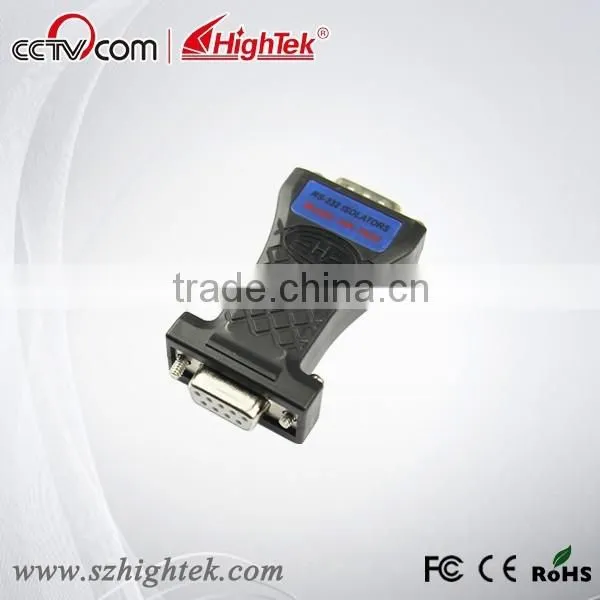

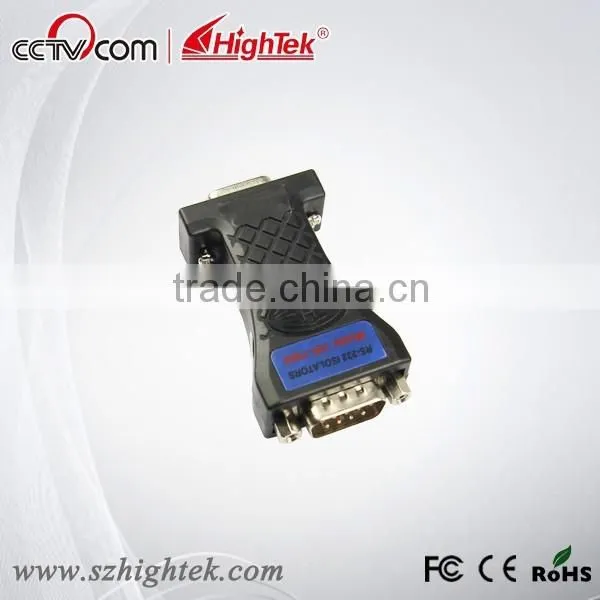

3-wire rs232 serial optical isolator3-line isolation
Support factory OEM
13-year brand
With lightning protection cert
3-wire rs232 serial optical isolator details:
Our HK-7002 products are now being widely used in the applications of point-to-point RS-232communication system, UNIX multi-user system, monitor control system, program control exchanger charging terminal, satellite receiver, ATM auto teller machine etc for the industries of electricity , insurance, telecommunications, railway, post office, financial , banking, securities, program controlling, etc.
Features:
1. Interface: conforming to EIA RS-232 and CCITTV2.4 asynchronous protocols.
2. Connector: DB9 connectors for both ends.
3. Transmission mode: asynchronous, full duplex, full transparent.
4. Isolation voltage: 2,500Vrms impulse or 500VDC continues.
5. Transmission rate: 300BPS-57,600BPS.
6. Power: fromRS-232 interface (TXD,RTS or DTR)
7. Measurements: 63mm*33mm*17mm
8. Weight: 30g
9. Working environments: -40degreesto85degrees
10. Relative Humidity: 5% to 95%
Connector and signal
Pin distribution at RS-232DTE end
| DB9 Female (PIN) |
RS-232C Interface Signal |
| 1 | Empty |
| 2 | Signal out SOUT(TXD) |
| 3 | Signal in SIN( RXD) |
| 4 | Empty |
| 5 | Signal grounding GND |
| 6 | Empty |
| 7 | Empty |
| 8 | Empty |
| 9 | Ring indication RI |
Pin distribution at RS-232DC Eend
| DB9 Female (PIN) |
RS-232C Interface Signal |
| 1 | Protection grounding cable |
| 2 | Signal in SIN(RXD) |
| 3 | Signal out SOUT(TXD) |
| 4 | Data terminal ready DTR |
| 5 | Signal grounding GND |
| 6 | Data device ready DSR |
| 7 | Request sending RTS |
| 8 | Clear sending CTS |
| 9 | Ring indication RI |
Connector and signal
Conforming to EIA RS-232 and CCITTV2.4 standards. 2-3pin for data sending and receiving,7-8pin for RTS and CTS,4-1 pin for DTR and DCD, 6 pin for DSR and 5 pin for GND. RS-232 interface(TODTE): Connector: DB-25/9 hole-shaped connector to be used.
Signal: interior signal cables are separated.
Connection method
HK-7002 can be connected in series with between the serial connection cable of the previous RS-232 and the RS-232 interface, and either end is OK but you have to pay attention to the direction indicated by TO DTE or TO DCE. Generally speaking, PC user and multi-user are DTE devices, MODEM and terminal are DCE devices, however this general rule dose not apply to all situations. To decide DTE or DCE devices, you have to base your conclusion on the signal cable of your devices RS-232 interface. For example, it is DTE for the signal output from DB25 interface pin2, while its receiving input is DCE. Therefore, if crossed RS-232 cable isused to connect two DTE devices(e.g.terminal and multi-users), you have to connect the TODTE end to the device and TODCE end to the cable, no matter which side your HK-7002 is connected.
Application areas
Various kind of multi-user systems such as UNIX.
Protection of multi-user terminal and host.
Protection of satellite receiver.
Protection of multi-user cards.
Protection of ATM automatic teller machines connected with RS-232 devices without pubic grounding.
Protection of MODEM and routers.
Q1: Can you provide OEM service?
Yes, we work on OEM orders.which means design, packing solution,etc will depend on your requests; and your logo will be customized on our products.
Q2: What information should i let you know if i want to get a quotation?
1.Which products are your need?
2.package
3.Quiantitles
Q3: WHY US?
1.The only recommended brand of interface converter by CCTV;
2.Established in 2000, there are 8 branch companies all over China;
3.More than 20 years’ manufacturing in communication filed and more than 15-year customization experience;
4.With professional management, R&D, manufacturing, QC and service team, we are always ready to provide perfect products and service for you;
5.Always the selection of Telefonaktiebolaget LM Ericsson, Huawei, Wachovia Corporation, Foxconn, Motorola, OKI, CNPC, Sinopec and China Mobile since the first cooperation between us.
