Specifications

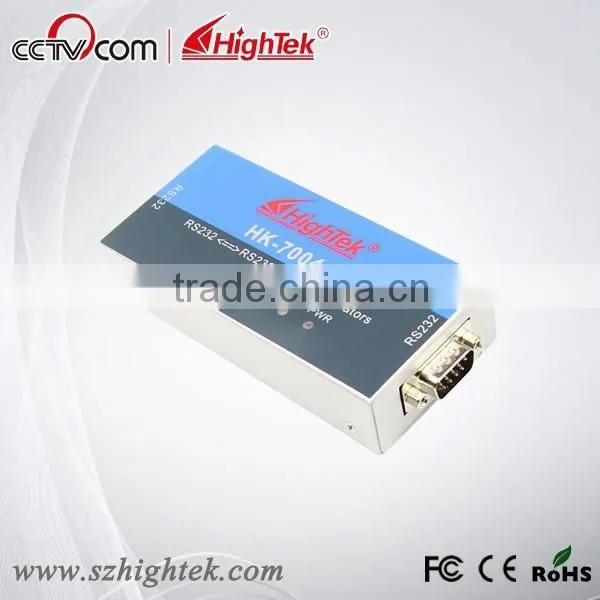

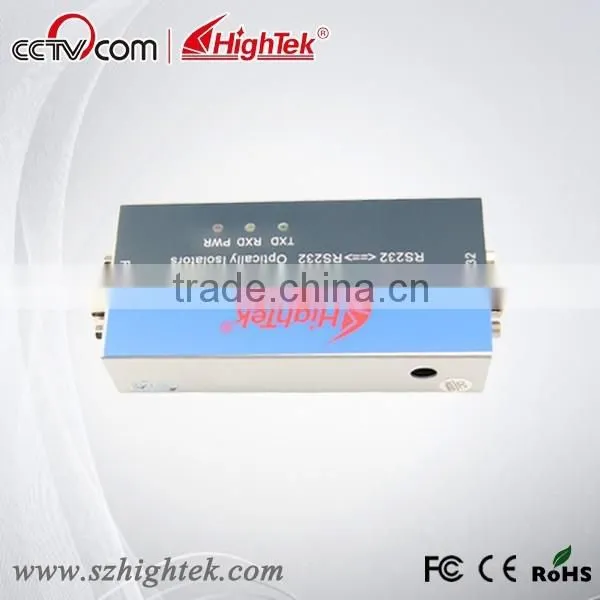

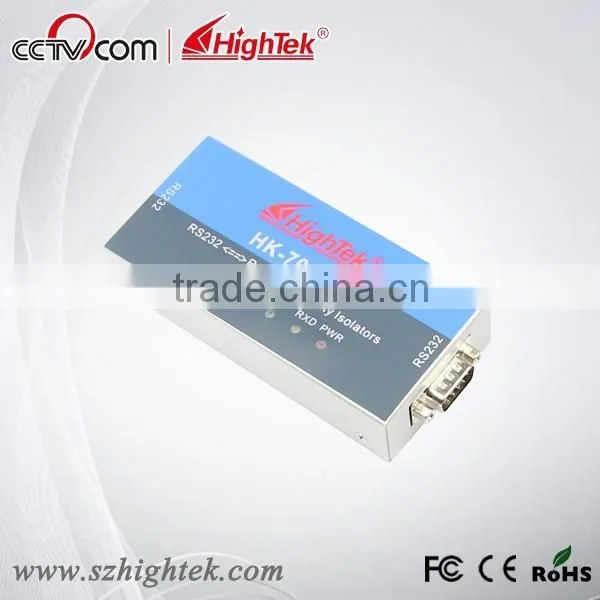

Active 9 Line RS-232 Serial Optical/Photoelectric IsolatorActive 9 Line RS-232 Serial Optical/Photoelectric Isolator
Features:
- Interface: conforming to EIA RS-232 and CCITTV2.4 asynchronous protocols.
- Connector: DB9 connectors for both ends.
- Transmission mode: asynchronous, full duplex, full transparent.
- Isolation voltage: 2,500Vrms impulse or 500VDC continues.
- Transmission rate: 300BPS-115,200BPS.
- Power: DC9V-48V input
- Measurements: 113mm*55mm*33mm
- Weight: 150g
- Working environments: -40 degree C to 85 degree C.
- Relative humidity: 5% to 95%.
Connector and signal
Pin distribution at RS-232 DTE end
DB9 Male |
RS-232C Interface Signal |
1 |
Protection grounding cable |
2 |
Signal out SOUT(TXD) |
3 |
Signal in SIN (RXD) |
4 |
Data Terminal ready (DTR) |
5 |
Signal Grounding (GND) |
6 |
Data Device Ready (DSR) |
7 |
Request To Sending(RTS) |
8 |
Clear To Sending (CTS) |
9 |
Ring Indication RI |
Pin distribution at RS-232 DCE end
DB9 Female |
RS-232C Interface Signal |
1 |
Protection grounding cable |
2 |
Signal in SIN (RXD) |
3 |
Signal out SOUT(TXD) |
4 |
Data Terminal ready (DTR) |
5 |
Signal Grounding (GND) |
6 |
Data Device Ready (DSR) |
7 |
Request To Sending(RTS) |
8 |
Clear To Sending (CTS) |
9 |
Ring Indication RI |
