Specifications
telecom serial rs485 surge protector1.2-line protection
2.With lightning protection cert.
telecom serial rs485 surge protector details:

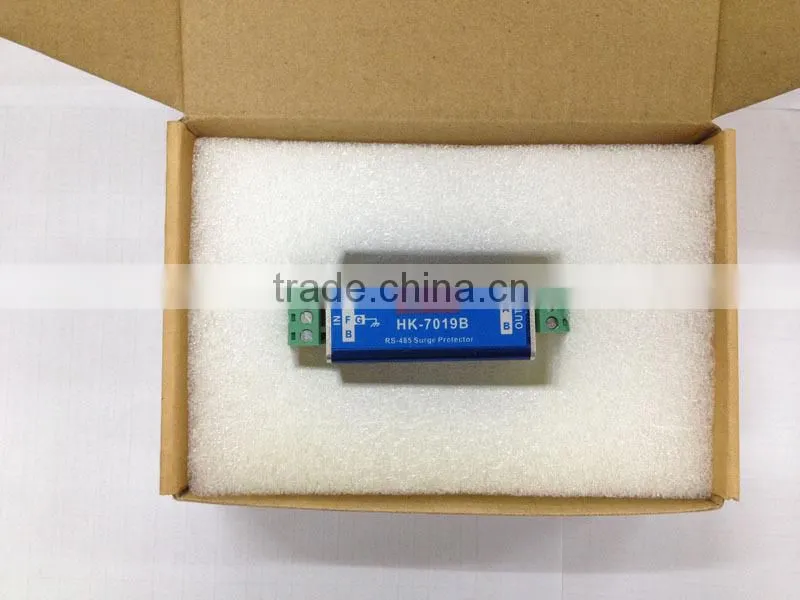

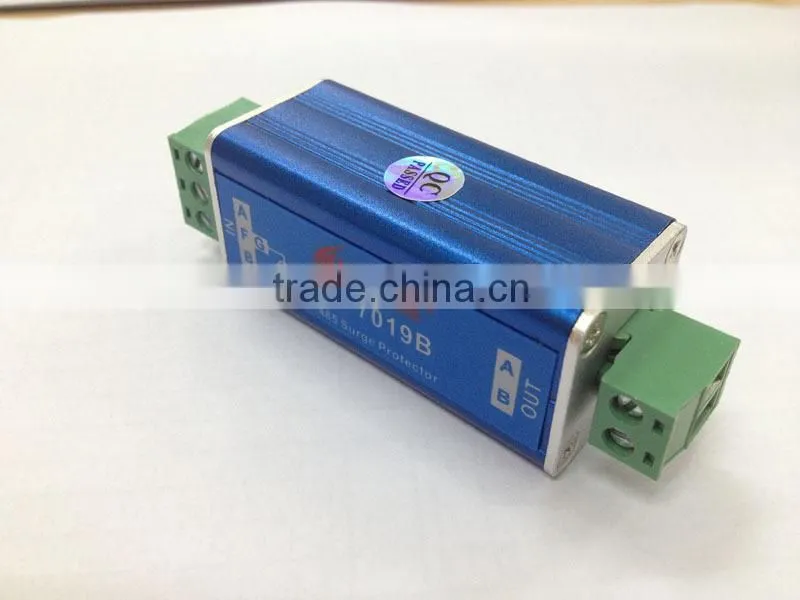

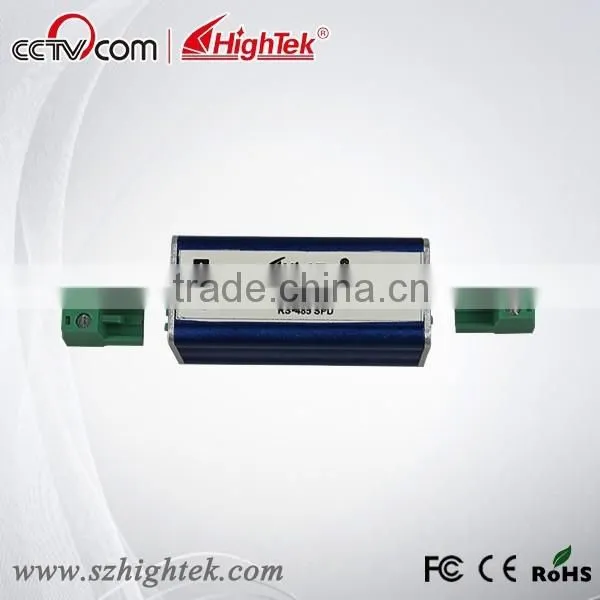

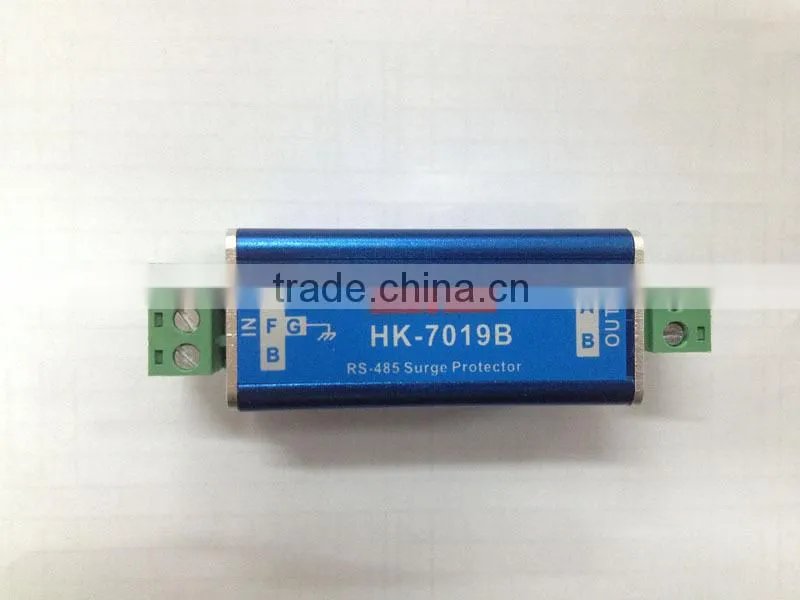

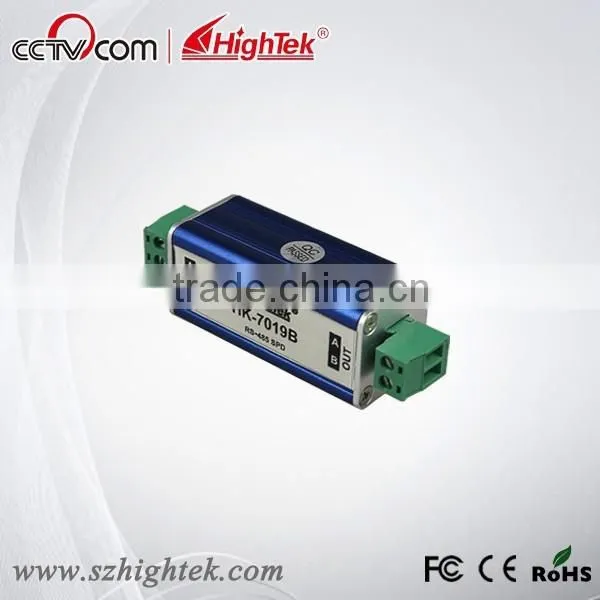

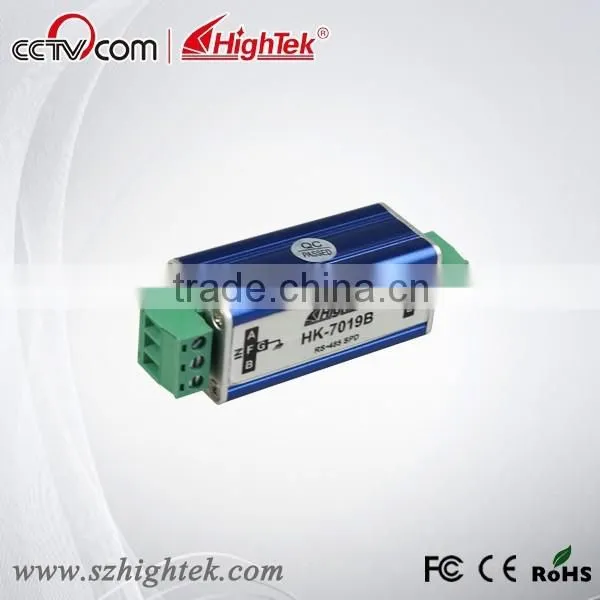

HighTek HK-7019B RS485Signal surge protector based on IEC61000-4-5 and ITU-TK20 & K21 standard design, using multi-level protection circuit, use the latest high-speed surge protection devices, reaction speed, the output residual down, transmission superior performance. Interface uses a standard industrial terminal block, easy to use, applicable to all RS-485 communications for lightning protection.
HK-7019B use metal casing, sealing is good, with dust-proof, anti-corrosion features, series connected with the installation, suppressing high-voltage pulse on the line to protect the back-end equipment from lightning strikes, industrial surge damage.
Typical Applications
- Security monitoring equipment, remote control and transmission
- Digital Public Address System
- Intelligent Community water, electricity, gas
- Instrumentation and various applications RS-485 bus control field of industrial
Works
HK-7019B Signal Applications lightning Discharge, current limiting, clamp, regulator of the principles of design and manufacture of signal lines when subjected to lightning over-voltage, over-current when the lightning or the interference signal the release of energy into the ground, over-voltage limit equipment within the allowable range, to ensure the safe operation of electrical equipment.
Specifications
Standard: comply with RS-485 standard,IEC61000-4-5 and ITU-TK20 &K21
BIL:<=4.5KA(8/20uS Simulated lightning wave)
Operating voltage :0-5V (other special voltage can be made to order)
Clamping Voltage: <= 15V
Applicable rate: 1Mbps
Interface Type: Standard Industrial Terminal Blocks
Insertion loss: <= 0.5dB
Response time: <= 1ns
Operating temperature: -20 degrees Celsius to 60 degrees Celsius
Working environment: -25 degrees Celsius to 85 degrees Celsius
Humidity: Relative humidity 5% to 95%
Input Power: None
Power: None
Size: 80mm * 25mm * 25mm
Shell: aluminum alloy
Weight: 10g
Installation and Maintenance
1. Installation will be HK-7019B and protected access to the signal path between devices, HK-7019B The output must be close to the protected equipment, HK-7019B The FG input pin must be grounded, lightning protection grounding resistance shall not be greater than 4 ohms.
2. HK-7019B in the elements are subject to stringent testing, usually do not have maintenance, fault detection, it will be removed from the lines, using multimeter measurement of input, output pin A pin or between B and A and B foot between the legs The resistance value, the value should be less than or equal 12 ohms. In addition, A, B between the pin and the FG pin 8M ohm resistance should be greater than or equal. If the measured data does not meet the above requirements, indicating HK-7019B has become obsolete or damaged, it is timely replacement of the HK-7019B.
Q1: Can you provide OEM service?
Yes, we work on OEM orders.which means design, packing solution,etc will depend on your requests; and your logo will be customized on our products.
Q2: What information should i let you know if i want to get a quotation?
1.Which products are your need?
2.package
3.Quiantitles
Q3: WHY US?
1.The only recommended brand of interface converter by CCTV;
2.Established in 2000, there are 8 branch companies all over China;
3.More than 20 years’ manufacturing in communication filed and more than 15-year customization experience;
4.With professional management, R&D, manufacturing, QC and service team, we are always ready to provide perfect products and service for you;
5.Always the selection of Telefonaktiebolaget LM Ericsson, Huawei, Wachovia Corporation, Foxconn, Motorola, OKI, CNPC, Sinopec and China Mobile since the first cooperation between us.
Welcome to contact us!
Mr.Steve Fang
Telephone:+86-755-61566101
Fax:+86-755-61566066
Skype: hightektech
Address: 7/F,Bldg.5,Wuwu Science & Technology Park,Longhua District,Shenzhen,China
