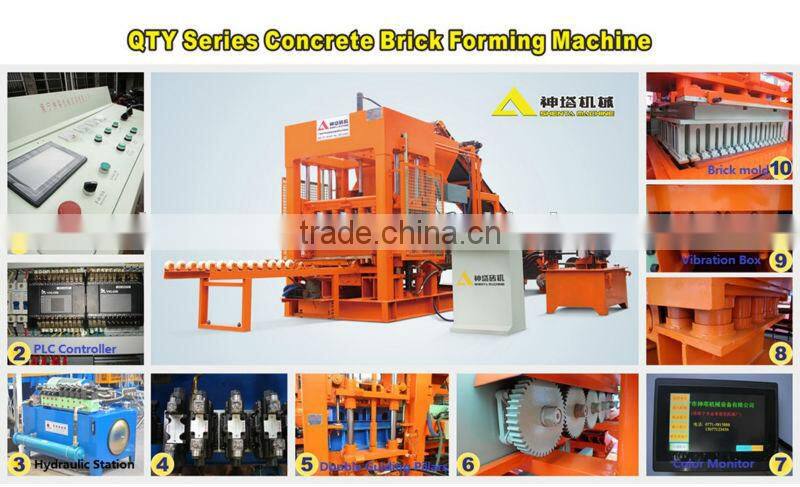

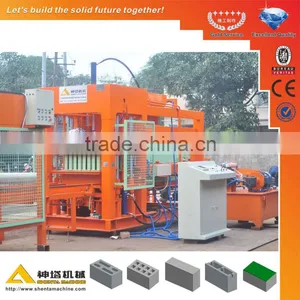

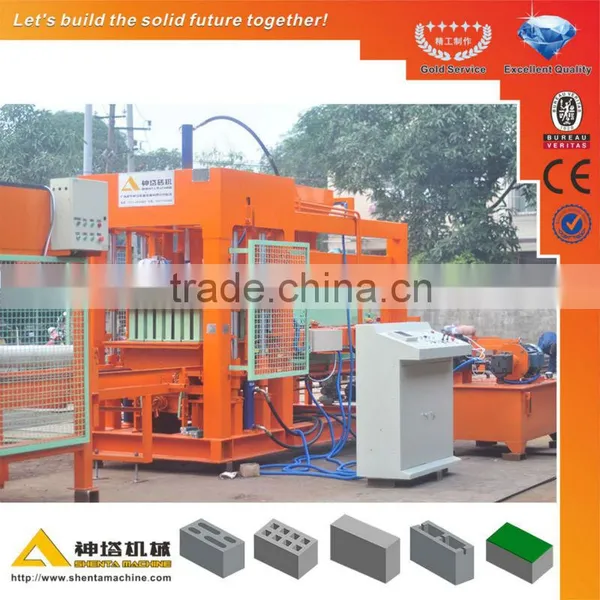

QTY8-15 full automatic brick making machine
QTY8-15 is the automatic brick making machine. It is all hydraulic transmission, fully automatic operations. It has the features of compact structure, easy and humanized operation, little maintenance and low failure rate. It uses the hydraulic press and synchronous vibration to form the brick. By adopting high quality frequency converter, distributing the material in low frequency and forming the brick in high frequency, the machine working life has been well-guaranteed and power consumption greatly reduced.
This brick making machine can have different foming moulds placed to produce different bricks.We have a list of brick moulds for choose from, and we also can develop moulds as your requirement.
Advantages of automatic brick making machine
1. Long service life:
--Made of high strength steel, good quality welding and finishes;
--Japan or Taiwan good quality hydraulic system components.
2. High precision, Low malfunction rate:
--Japan PLC full automatic control system, all hydraulic transmission, interlocking functions,
--Data auto-collecting contactor, alarms for lack of pallet and material.
3. Fully automatic operations:
--Material conveying, material and color pigment distributing, brick forming, pallet feeder, brick discharging.
4. Fast brick forming speed, ensured brick density:
--Brick formed by high hydraulic press and high frequency synchronous vibration, ensure the bricks airtight and solid.
--Drops 8 blocks per mould, only 15 seconds per cycle. (Calculated based on standard brick (390x190x190mm).
5. Cost saving: High qualified rate, low cement consumption.
6. Multi-function: Suitable for different kinds of brick types and materials.
7. High quality finished brick: Good looking, accurate size, durable, long service life.
8. SHENTA MACHINE offer good pre-sale and after sale service.
Main specifications of automatic brick making machine
Overall Dimension |
4900x1900x3000 mm |
Forming Cycle |
15-25 s |
Pallet Size |
900x900x30 mm |
Vibration Frequency |
4300 rpm |
Net Weight |
9 t |
Vibration Force |
100 kn |
Power Capacity |
45.2kw |
Vibration Power |
25 kw |
Workers per production line |
5-6 people |
Area required |
4000 m2 |
Theoretic productivity for automatic brick making machine
Brick Types |
Brick Dimension |
Blocks/Mold |
Blocks/Hour |
Blocks/Shift |
Brick image |
Hollow Brick |
390*190*190mm |
8 |
1920 |
15360 |
|
Porous Brick |
240*115*90mm |
18 |
4320 |
34560 |
|
Paver Brick |
240*53*115mm |
21 |
5040 |
40320 |
|
Solid Brick |
240*53*115mm |
39 |
9360 |
74880 |
|
Note: The production capacity is affected by material. brick size and other factors.
Brick making machine could be customized, we can design the molds according to customers' require.
Brick raw materials for automatic brick making machine
3.Cement: 10~20%; 4.Crushed Stone (<5cm): 30~40%;
5.Construction waste or Mineral Slag.
Packing and Shipping for brick making machine
Experienced in selling brick making machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation. All the key parts are protected by wooden boxes.
Company profile
Guangxi SHENTA Machinery Equipment Co.,Ltd. was established in 1973. The factory covers an area of 40,000 m2 and owns about 200 employers.
40 years' professional experience in brick making machine manufacturing had brought us a good reputation in both domestic and exporting markets.
Our production are mainly as below:
1. Full automatic brick making machines, semi-automatic brick making machines.
2. Manual brick making machines, mechanical brick making machine, hydraulic press brick making machine, isostatic press brick making machine.
3. Concrete mixers, brick stackers, brick pallet loaders, brick material screw conveyor, cement silo and other brick making assistant equipments.
4. Automatic brick production line.
Our main exporting markets are:
India, Vietnam, Indonesia, Pakistan, Thailand, Bangladesh, Nepal, Burma, Laos, Sri Lanka, Saudi Arabia, South Africa, Russia etc.
We will keep the corporate value of "Providing first-class products and service" and build a solid future with you.
Exhibitions
We take part in many construction machinery exhibitions every year, such as Bauma ConExpo in India, China, South Africa, Germany; machinery exhibitions in Vietnam and Indonesia; Canton Fair in Guangzhou; The ASEAN-China Exposition in Nanning, etc.
Our services
1. Pre-sale:
Provide brick factory setting solution, fitting selections based on customer’s need and factory layout design.
2. Sales:
1)Free service of machine installation and commissioning;
2)Training for operator and maintenance person.
3. After-sale:
1)Help customers to establish brick production craft formula;
2)Provide consultation all the time;
3)Supply brick machine moulds and parts all the time.
4. Brick making machine OEM and ODM service.
If any further information needed, please don't hesitate to contact me. ^_^
