SHENTA MACHINE QTY10-15 Automatic Interlocking Brick Machine Price

SHENTA MACHINE QTY10-15 Automatic Interlocking Brick Machine Price photo-1
US$ 38,000 - 45,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paving Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or Fangcheng Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Paving Block Making Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 11,000blocks/hour
Place of Origin Guangxi, China
Brand Name SHENTAMACHINE
Model Number QTY10-15
Voltage 380V
Power 50kW
Dimension(L*W*H) 5200x2700x3100mm
Certification CE, ISO, BV
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Professional China block machine manufacturer-SHENTA MACHINE welcome you!

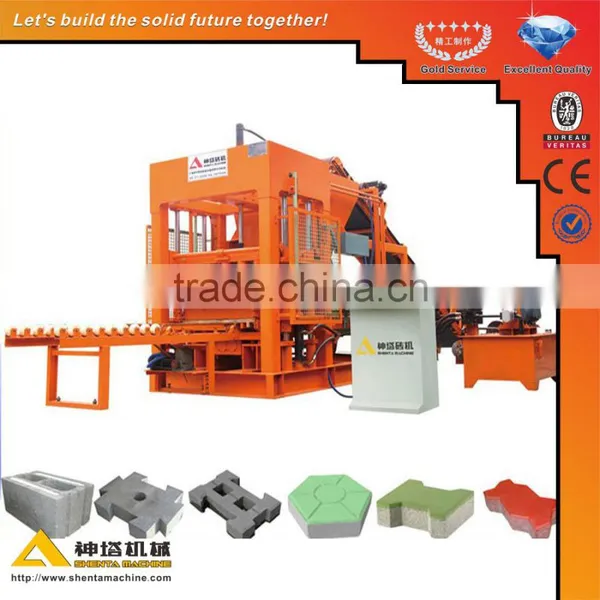

SHENTA MACHINE QTY10-15 automatic interlocking brick machine price

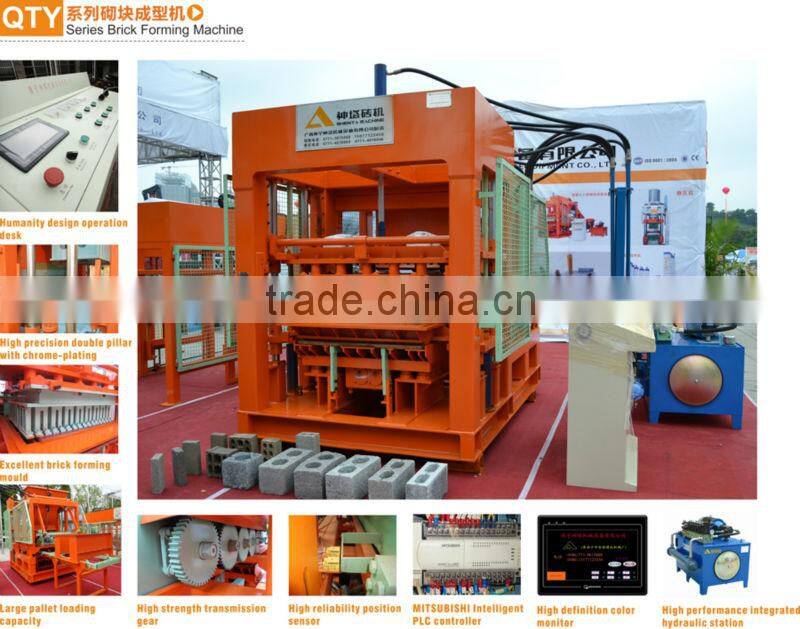

I. Characteristic of QTY10-15 interlocking brick machine

1.The main machine adopt Japanese Mitsubishi PLC controller, has the functions of HMI operation and brick automatic output, automatic reset, lack material and lack plank alarm, easy and humanized operation, the electric parts are provided by well-known company to ensure the safety and stable running;
2.With multifunction feature to produce both the load-bearing brick and non-load-bearing brick, according to change the mouldsto produce different wall bricks, as well as produce multi-hole bricks and road pavers bricks;
3.The main machine utilized the molding method of pressure and high frequency vibration to make the more airtight and solid block, the hydraulic system adopts Taiwan/Japan high quality components; ;
4.The high quality frequency converter can protect the working life, as well as reduce the power consumption.

SHENTA MACHINE QTY10-15 automatic interlocking brick machine price


II. Main specification for QTY10-15 interlocking brick machine

Operation Cycle

15~25s

Pallet Size

1100*900*25mm

Brick Height

60~200mm

MainPower Capacity

50Kw

Mixer Model

JS750

Vibration Force

120kN

Net Weight

15t

Main Machine Dimension

5200*2700*3100mm

Power Source

3Phase, 380V/50Hz (Special voltage & frequency is available according to your local power source.)



III. Theoretic Productivity for QTY10-15 interlocking brick machine

Brick Type

Dimension

Blocks/Cycle

Blocks/Hour

Blocks/Shift

Remark

Hollow Brick

390*190*190mm

10

2400

19200

 SHENTA MACHINE QTY10-15 automatic interlocking brick machine price

Porous Brick

240*115*90mm

21

5040

40320

 SHENTA MACHINE QTY10-15 automatic interlocking brick machine price

Paver Brick

200*100*60mm

36

8640

61920

 SHENTA MACHINE QTY10-15 automatic interlocking brick machine price

Solid Brick

240*115*53mm

48

11520

92160

 SHENTA MACHINE QTY10-15 automatic interlocking brick machine price

Note: Special brick model is available according to customer demand.



IV. Brick Raw Material for QTY10-15 interlocking brick machine

Our brick machine can adopt the following raw materials to make the good quality hollow brick, solid brick and paver brick.

1. Cement: 10%~20%;
2. Sand: 30~40%;
3. Crushed Stone (<5cm): 30~40%;
4. Fly Ash or Additive: ~10%
5. Construction
SHENTA MACHINE QTY10-15 automatic interlocking brick machine price

V. Brick Samples for QTY10-15 interlocking brick machine

Our brick machine can produce the concrete hollow brick, solid brick, porous brick, paver brick, interlock brick, road traffic stone and so on.

SHENTA MACHINE QTY10-15 automatic interlocking brick machine price


Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protected by  wooden boxes.

SHENTA MACHINE QTY10-15 automatic interlocking brick machine price


I. Factory Ability:



1. Workshop Area: 40,000 square meter;
2. Facility:


CNC Lathe

06 sets

Boring Lathe

02 sets

Shaper

02 sets

Milling Machine

04 sets

Press Brake

02 sets

CNC Flame Cutter

01 set

Crane

10 sets

Shot Blast Machine

01 set

X-ray Inspection Instrument

01 set

SHENTA MACHINE QTY10-15 automatic interlocking brick machine price


II. Quality Control & Certificate:

We adopt the high quality steel materials, and every process will have the strict inspection and test comply with the ISO-9001or CE standard to ensure the machine has perfect performance.

SHENTA MACHINE QTY10-15 automatic interlocking brick machine price



III. Our Achievement:

Until now we have successfully export and handover our brick machine and production line to customers in Vietnam, Indonesia, Angola, India and Papua New Guinea, and acquire the good reputation of user.

SHENTA MACHINE QTY10-15 automatic interlocking brick machine price



IV. Exhibitions:

We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; Bauma China in Shanghai, India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc.

SHENTA MACHINE QTY10-15 automatic interlocking brick machine price



V. Contact Information:



Welcome contact us via email or telephone as below:
