machine for sale. Shenta Branch QTY8-15 hydraulic automatic interlocking block making machine
Technical Specification of interlocking block making machine
Outside Dimension (mm) | 5200x1900x2800 | Operation Cycle (s) | 15~25 |
Main Machine Weight (Ton) | 9 | Vibration Frequency (rpm) | 4300 |
Power Consumption (Kw) | 45.2 | Vibration Force (Kn) | 100 |
Pallet Dimension (mm) | 900x900x25 | Vibration Power (kW) | 22 |
Operator quantity | 5 people | Land required | 5000m2 |
Characteristics of interlocking block making machine
1. Control system:Adopt intelligent programmable logic controller (PLC) and high performance touch screen. Realize the man-machine conversation and fully automatic intelligent operation
2. High efficient vibration system:Adopt intelligent control technique in the frequency conversion vibration system, distribute materials in low frequency and form the bricks in high frequency. Moreover, with the synchronous vertical vibration technology, the brick forming speed becomes faster and the bricks are more compacted
3. Machinery Manufacturing:Made of high strength steels according to the national standard. Special welding techniques and advanced mechanical working processes bring high precision, durable and a long service life.
4.Transmission system: Adopt fully hydraulic transmission, four pillars oriented and synchronous mechanism. Machine operation is stable, precise and less malfunctions
5. Feeding system: Adopt the forced advanced rotating arch breaker. It is suitable for various materials, and the process is uniform and quick.

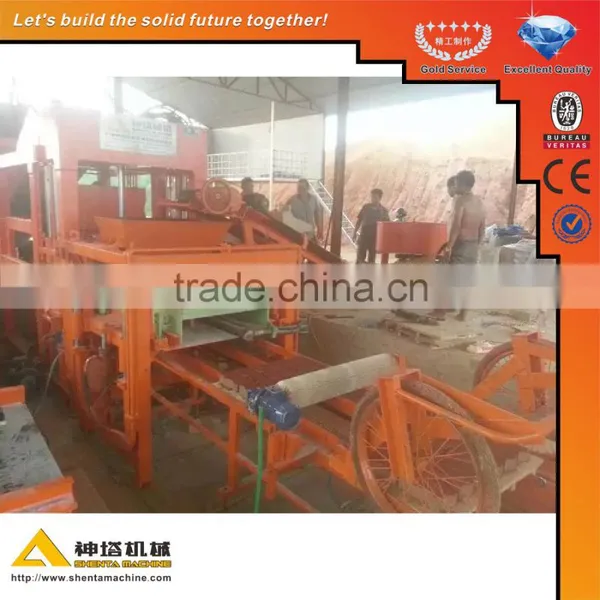

Details pictures of interlocking block making machine
Production capacity of interlocking block making machine
Brick Size | Blocks/Mould | Blocks/Hour | Blocks/Shift |
Hollow Brick (400x200x200mm) | 8 | 1,920 | 15,300 |
Hollow Brick (400x150x200mm) | 10 | 2,400 | 19,200 |
Hollow Brick (400x100x200mm) | 14 | 3,360 | 26,800 |
Hollow Brick (390x190x190mm) | 8 | 1,920 | 15,300 |
Porous Brick (240x115x90mm) | 18 | 4,320 | 34,500 |
Solid Brick (240x53x115mm) | 36 | 8,640 | 69,000 |
Interlock Brick (225x112x60mm) | 21 | 5,000 | 40,000 |
Pavers Brick (200x100x60mm) | 21 | 5,000 | 40,000 |
Remark: The production capacity data are theoretical and depends on machine settings, mix design, aggregates used and other environmental conditions.
Brick sample of interlocking block making machine
Raw materials of interlocking block making machine
1.Sand: 30~40%
2.Fly Ash or Additive: 0 ~10%
3.Cement: 10~20%
4.Crushed Stone (<5cm): 30~40%
5.Construction Refuse or Mineral Slag
Guangxi SHENTA Machinery Equipment Co., Ltd, established in 1973, is the earliest professional and leading manufacturer of block making machine .
Outdoor advertising in Vietnam
Exhibition show
Our certificates
Do you have any question after reading? Is this interlocking block making machine you require? If it is,please contact May as follows
