Professional Automatic Cement Block Making Machine Plant QTJ5-20

Professional Automatic Cement Block Making Machine Plant QTJ5-20 photo-1
US$ 28,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen Shanghai Fangchenggang
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Molding Machine
Method Other, Vibration Forming
Automatic Yes
Capacity 19200-86400pcs/8hrs
Place of Origin Guangxi, China
Brand Name SHENTA MACHINE
Model Number QTJ5-20
Voltage 380V/3Phase/50HZ
Power 44Kw
Dimension(L*W*H) 3400x2040x4300mm
Certification ISO9001:2008, CE, BV, ect.
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Professional automatic cement block making machine plant QTJ5-20






Characteristic of automatic cement block making machine plant

  1. Full mechanical transmission with feature of compact structure and reasonable design.
  2. Adopt high quality and intelligent PLC controller, HMI operates and brick automatically output, automatically reset, lack material and lack plank alarm, easy and humanized operation is more safety and reliable.
  3. The block making machine utilize high frequency vibration to mold the brick, thefinished product is more dense and solid.
  4. The high speed arch breaking device can consumedly shorten the material distributing time.
  5. Need only 5 workers to operate the production line.

Technical Specification



Outside Dimension (mm)

3400x2000x4500

Operation Cycle (s)

20~30

Main Machine Weight (Ton)

9

Vibration Frequency (rpm)

4300

Power Consumption (Kw)

44

Vibration Force (Kn)

62

Pallet Dimension (mm)

1050x550

Vibration Power (kW)

19



Theoretical Productivity



Brick Size

Blocks/Mould

Blocks/Hour

Blocks/Shift

Hollow Brick (400x200x200mm)

4

580~720

4,600~5,700

Hollow Brick (400x150x200mm)

6

860~1,080

6,900~8,600

Hollow Brick (400x100x200mm)

9

1,300~1,620

10,400~13,000

Hollow Brick (390x190x190mm)

5

720~900

5,800~7,200

Porous Brick (240x115x90mm)

16

2,300~2,880

18,400~23,000

Solid Brick (240x53x115mm)

32

4,600~5,760

36,800~46,000

Interlock Brick (225x112x60mm)

16

2,300~2,880

18,400~23,000



Production Line Layout of automatic cement block making machine plant

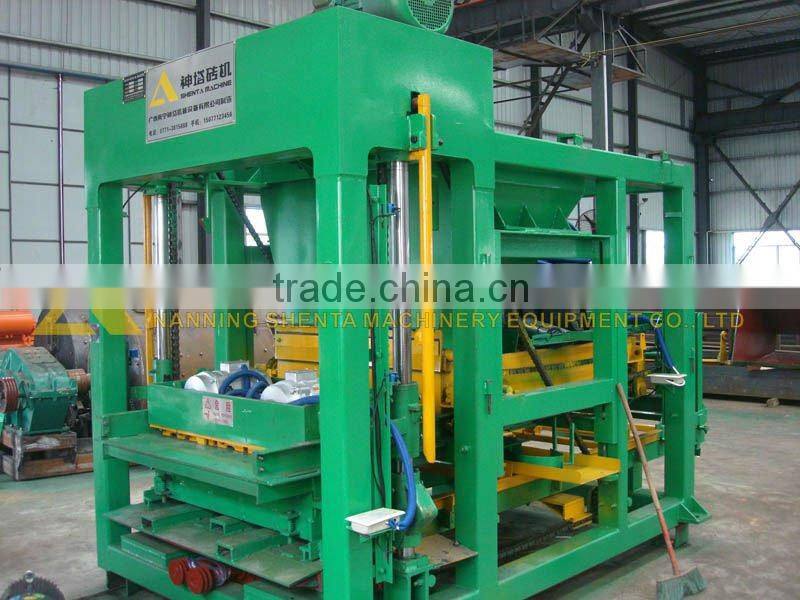

Main Machine



Professional automatic cement block making machine plant QTJ5-20



Professional automatic cement block making machine plant QTJ5-20



Brick machine production process



Professional automatic cement block making machine plant QTJ5-20



Brick raw material



Many kinds of materials such as concrete, cement, sand, crushed stone, dust and fly coal ash, cinder,

gravel, perlite, construction refuse, etc. can be used to make brick.



Professional automatic cement block making machine plant QTJ5-20

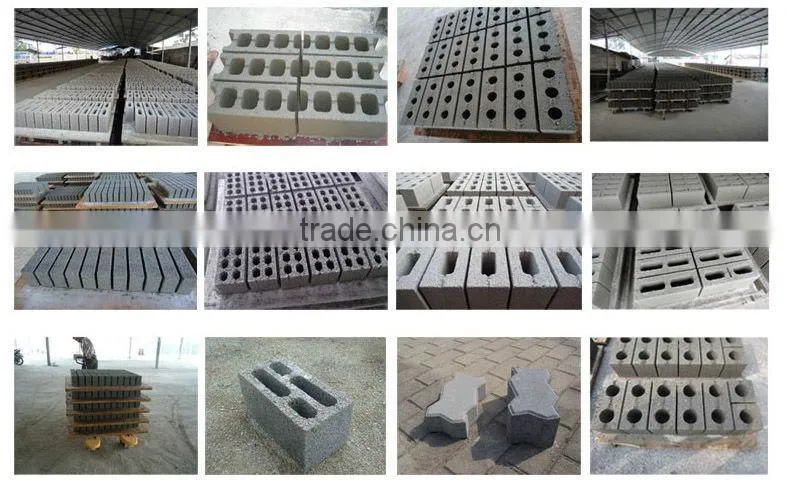

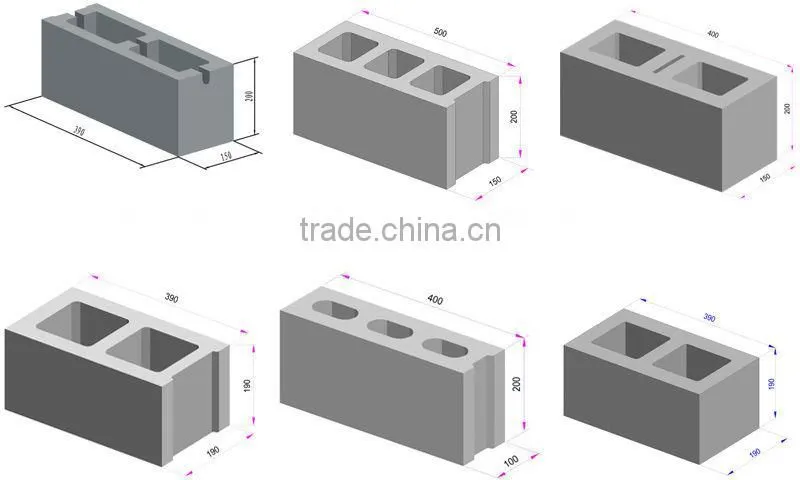

Brick samples



Various types of concrete block, cement brick, solid brick, hollow block, perforated brick, paving brick,

interlocking block, building brick, garden and landscaping block, grass block, slope block, etc. can be made.





Professional automatic cement block making machine plant QTJ5-20



Professional automatic cement block making machine plant QTJ5-20



Professional automatic cement block making machine plant QTJ5-20

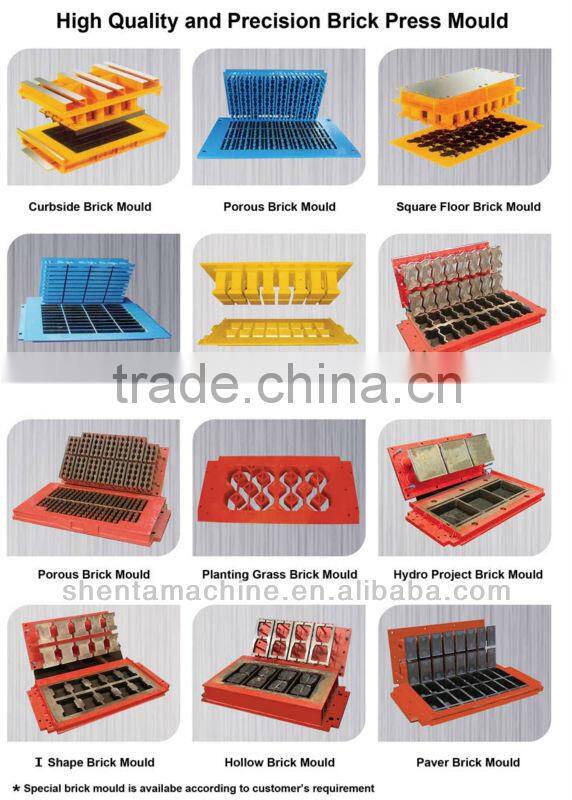

Brick Making Moulds

 Professional automatic cement block making machine plant QTJ5-20

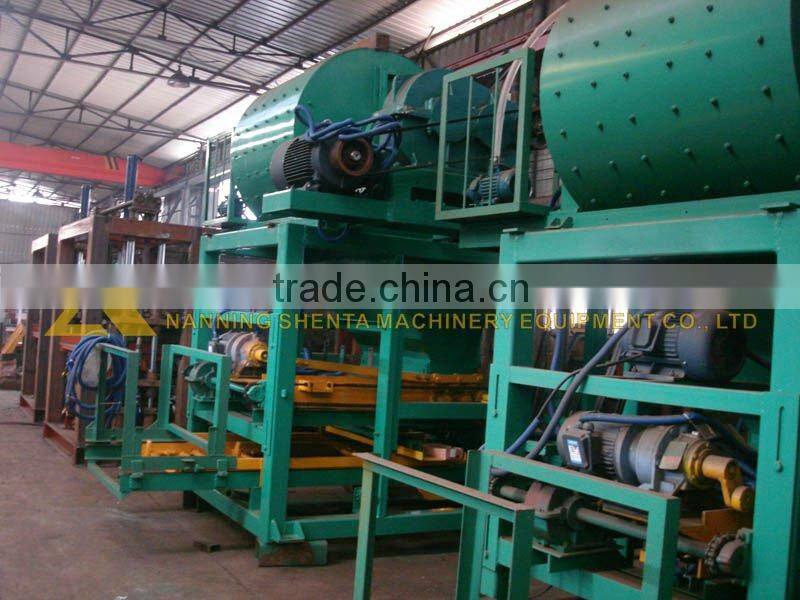

Machine Working Site



Professional automatic cement block making machine plant QTJ5-20

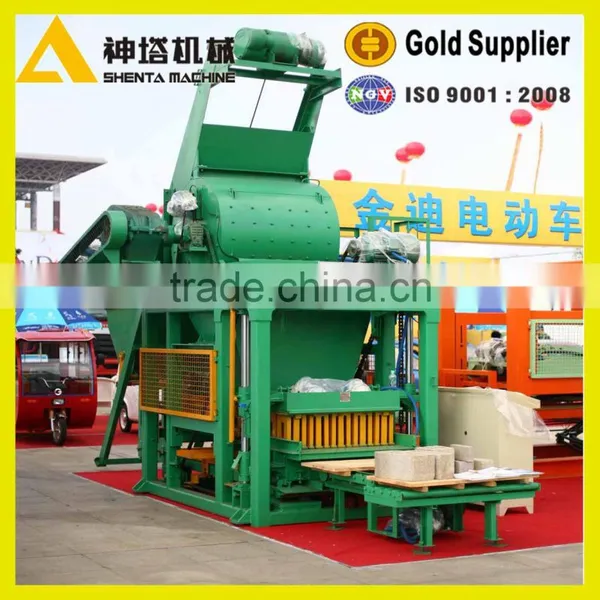

EXhibition show



Professional automatic cement block making machine plant QTJ5-20



About SHENTA MACHINE



Our advantage:

→ We are brick and block making machine manufacturer with 40 years professional experience.

→ We can offer large scale, medium scale and small scale brick and block making machine and production line.

→ We have more than 40,000 square meters production area with over 200 workers.

→ Welcome to visit Shenta factory





Professional automatic cement block making machine plant QTJ5-20



Professional automatic cement block making machine plant QTJ5-20





Pre-sale:

Analyze the customer’s need and factory layout design, confirm scale of operation;

Select the fitting choice;

Provide perfect solution to set up a factory.



Sales:

Help to set up the factory;

Provide free service of installation and commissioning;

Provide training for operator and maintenance person.



After-sale:

Help customers to establish production craft formula;

Provide the consultation all the time;

Supply moulds and parts all the time.



Buying tips:

We are involving in small scale, medium scale, large scale brick and block making machine.

when you want to buy, please tell me:

1) Your brick's size ( length, width and height);

2) Your brick's pricture(If you have);

3) Your production request per day.



Thank you for your attention to SHENTA MACHINE.

Welcome to inquire more information of QTJ5-20 automatic cement block making machine plant

Your inquiry will be highly appreciated.
