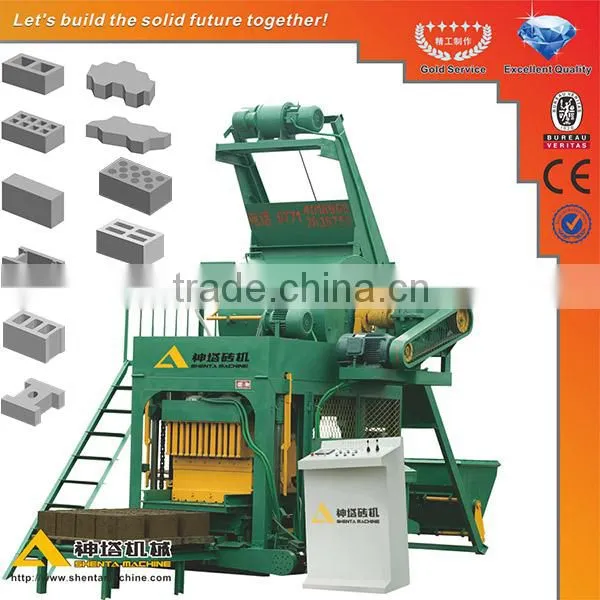

SHENTA QTJ4-18 concrete interlocking brick molding machine
QTJ4-18 is the concrete brick molding machine. It is all mechanical transmission, with concrete mixer assembled, drops 5 blocks of standard brick 390x190x190mm. It has the features of compact structure, reliable operation, easy to use, little maintenance and low failure rate. It uses the synchronous vibration and weight of top mould for the compression of the brick. The finished bricks are with excellent shape, dense structure, high strength and lower cement consumption.
This concrete brick molding machine can have different moulds placed inside to produce different blocks. We have a list of standard moulds to choose from. We can also manufacture custom block or brick moulds for your needs.
--built with high quality steel, good quality welding and quality finishes.
--Japan or Taiwan quality electric parts.
2.High precision, Low malfunction rate:
---Taiwan PLC full automatic control system, all hydraulic transmission;
---interlocking functions, data auto-collecting contactors, alarms for lack of pallet and material.
3.Full automatic operations:
--automatic mixer
--automatic material conveyor
--automatic material feeder
--automatic block molding
--automatic pallet feeder
--automatic block output.
4.Fast brick forming speed, ensured block density:
--Block formed by synchronous vibration of press head and mold table.
--Drops 4 blocks per mould, only 18 seconds per cycle. (Calculated based on brick size 390x190x190mm).
5.Cost saving:
--high qualified rate, low cement consumption.
6.Concrete mixer included:
--SHENTA MACHINE patented design, space saving. You also can save cost for mixer.
7.Multi-function:
--Suitable for different kinds of brick types and materials.
8.High quality finished block:
--good looking, accurate size, durable, long service life.
9.SHENTA MACHINE offer reliable pre-sale and after sale service.
Main specifications of QTJ4-18 brick molding machine
Overall Dimension | 5600x3000x4300 mm | Forming Cycle | 20-25 s |
Pallet Size | 840x450x30 mm | Vibration Frequency | 4300 rpm |
Net Weight | 8 t | Vibration Force | 55 kn |
Power Capacity | 44 kw | Vibration Power | 15 kw |
Workers per production line | 4-5 people | Area required | 3000 m2 |
Productivity for QTJ4-18 brick molding machine
Block Types | Brick Dimension | Blocks/Mold | Blocks/Hour | Blocks/Shift | Brick image |
Hollow Block | 390*190*190mm | 5 | 900 | 7200 | |
Porous Block | 240*115*90mm | 16 | 2880 | 23040 | |
Solid Block | 240*53*115mm | 32 | 5670 | 46080 | |
Interlock Block | 225*112.5*60mm | 16 | 2880 | 23040 | |
Note: The production capacity is affected by material, brick size and other factors.
Brick samples for QTJ4-18 brick molding machine
This brick molding machine can produce all kinds of concrete bricks both load-bearing and unload-bearing bricks. Such as hollow brick, solid brick, porous brick, paver brick, interlock brick, road traffic stone, curbs and so on.
1.Sand: 30~40%; 2.Fly Ash or Additive: 0 ~10%;
3.Cement: 10~20%; 4.Crushed Stone (<5cm): 30~40%;
5.Construction Refuse or Mineral Slag.
Packing and Shipping for brick molding machine
Experienced in selling brick molding machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protected by wooden boxes.
Company Profile
Guangxi SHENTA Machinery Equipment Co.,Ltd. was founded in 1973, based in Nanning, Guangxi, China. The factory covers an area of 40,000 m2, with more than 200 staff. We specialize in the production of all kinds of brick moulding machines.
About 40 years professional experience had brought us we a good reputation both in domestic and exporting markets.
Our production are mainly as below:
1. Full automatic brick molding machine, semi automatic brick molding machine.
2. Manual brick molding machine, mechanical brick molding machine, hydraulic brick molding machine, isostatic press brick molding machine.
3. Concrete mixers, brick stackers, brick pallet loaders, brick material screw conveyor, cement silo and other brick making assistant equipments.
4. Automatic block production line machine.
Our main exporting markets are:
India, Vietnam, Indonesia, Pakistan, Thailand, Bangladesh, Nepal, Burma, Laos, Sri Lanka, Saudi Arabia, South Africa, Russia etc.
We will keep the corporate value of "Providing first-class products and service" and build a solid future with you.
Exhibitions
We take part in many construction machinery exhibitions every year, such as Bauma ConExpo in India, China, South Africa, Germany and machinery exhibitions in Vietnam and Indonesia; Canton Fair in Guangzhou; The ASEAN-China Exposition in Nanning and so on.
Our services
1. Pre-sale:
Provide brick factory setting solution, brick equipment fitting selections and confirm scale of operation based on customer’s need, factory layout design.
2. Sales:
1) Free service of brick moulding machines installation and commissioning;
2) Training for brick moulding machines operator and maintenance person.
3. After-sale:
1) Help customers to establish brick production craft formula;
2) Provide brick moulding machines consultation all the time;
3) Supply brick moulds and parts all the time.
4. Brick moulding machines OEM and ODM service
If any further information needed, please don't hesitate to contact me. ^_^
