Specifications
Interlock brick production line1. Automatic PLC control system
2. Easy operation
3. ISO 9001 certificate
4. Shenta Machine

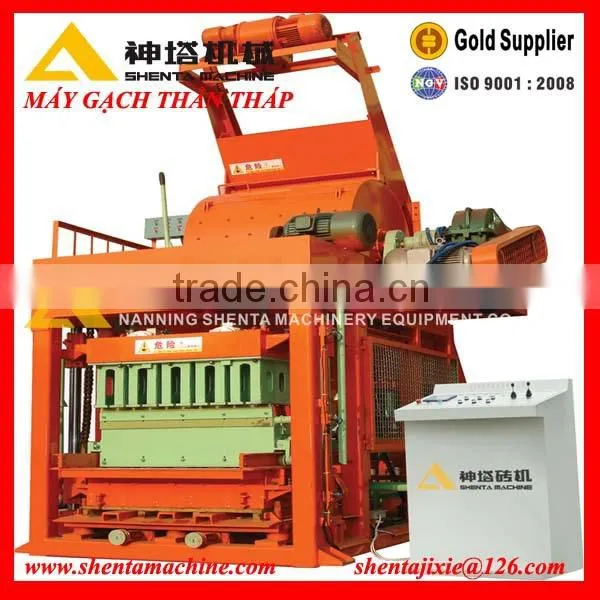

QTJ5-20 Automatic concrete interlock brick production line

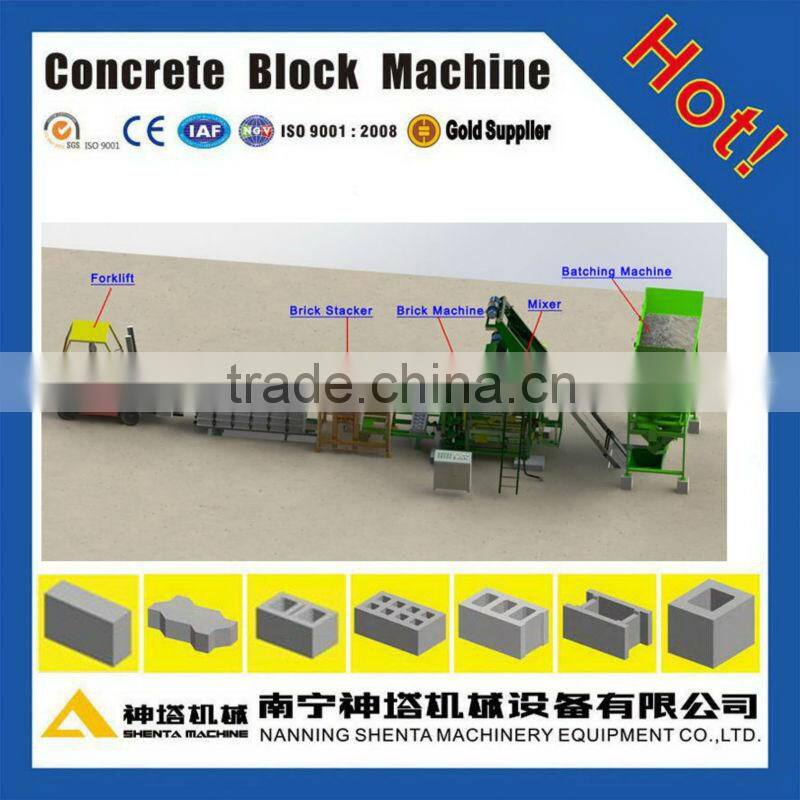

Equipment list
1. Batching machine;
2. QTJ5-20 brick forming machine (mixer is included);
3. Automatic brick stacker;
4. Forklift.
Characteristic
1. Full mechanical transmission, has different operation modes such as “Full Automatic” and “Manual” which ensure the automatic mixing,distributing and pallet feeding.
2. Adopts compulsion distributing device, the materials feeding is more quick and symmetrical.
3. Compact and reliable frame structure, easy operation, maintenance and cleaning.
4. Multi-purpose and strong adaptability, change different mould to produce various load-bearing brick and non-load-bearing brick and other hollow or solid wall brick.
Brick Machine Technical Specification
Outside Dimension (mm) |
3400x2040x4300 |
Operation Cycle (s) |
20~25 |
Main Machine Weight (Ton) |
8 |
Vibration Frequency (rpm) |
4300 |
Power Consumption (Kw) |
44 |
Vibration Force (Kn) |
55 |
Pallet Dimension (mm) |
1050x550x30 |
Vibration Power (kW) |
15 |
Theoretical Productivity
Brick Size |
Blocks/Mould |
Blocks/Hour |
Blocks/Shift |
Hollow Brick (390x190x190mm) |
5 |
900 |
7,200 |
Porous Brick (240x115x90mm) |
16 |
2,880 |
23,040 |
Solid Brick (210x60x105mm) |
32 |
5,760 |
46,080 |
Brick Material
Concrete, cement, crushed stone, sand, fly ash, cinder, stone powder, slag, gravel, perlite, construction refuse, industrial wastes, etc.
Brick Type
Concrete block, cement brick, solid brick, hollow brick, cellular block, paving brick, kerbstones, grass block, slope block, interlocking brick, etc.
Brick Sample
QTJ5-20 Working Site
Exhibition
Our advantage:
→ We are brick and block making machine manufacturer with 40 years professional experience.
→ We can offer large scale, medium scale and small scale brick and block making machine and production line.
→ We have more than 40,000 square meters production area with over 200 workers.
→ Welcome to visit Shenta factory
Pre-sale:
Analyze the customer’s need and factory layout design, confirm scale of operation;
Select the fitting choice;
Provide perfect solution to set up a factory.
Sales:
Help to set up the factory;
Provide free service of installation and commissioning;
Provide training for operator and maintenance person.
After-sale:
Help customers to establish production craft formula;
Provide the consultation all the time;
Supply moulds and parts all the time.
Thank you for your attention to SHENTA MACHINE.
Welcome to inquire more information of QTJ5-20 Automatic concrete interlock brick production line.
Your inquiry will be highly appreciated.
We build the solid future for you!
