used for making kinds of blocks of automatic block production line

40GP/40HQ container, according to the customer's request, seaworthy packing.

Specifications

Automatic block production line:
1.40 years experience
2.PLC automatic controller
3.High productivity
4.Low investment

used for making kinds of blocks of automatic block production line





Characteristic of brick machine of automatic block production line

1. Adopt Taiwan import PLC controller, HMI operates and brick produce are full automatic, has the function of automatic reset, lack material and lack pallet alarm, the operations are more humanity, the electric parts are provided by well-known company to ensure the safety and stable performance, the malfunction rate is more lower.
2. The main machine utilized the advanced pressure and vibration technology to form the block, the strength and density of brick is higher.
3. The hydraulic system parts adopt high quality production import from Taiwan or Japan, the working life is longer.
4. Swift speed arch breaking device can consumedly shorten the concrete material distributing time.
5. The control system has the data setting device, the distributing time and vibration time is resettable to meet various material.
6. Adopt the four guide pillar and super long-life wearable materials to ensure the high precision press of forming mould and press head.
7. Multi-purpose and strong adaptability, change different mould can produce various wall brick, porous brick, color paver brick, grass brick and shielding-slope brick.
8. Super strong welded profile steel frame structure provides the long term stable and reliable operation.

9. The high quality frequency converter can protect the working life, as well as reduce the power consumption.

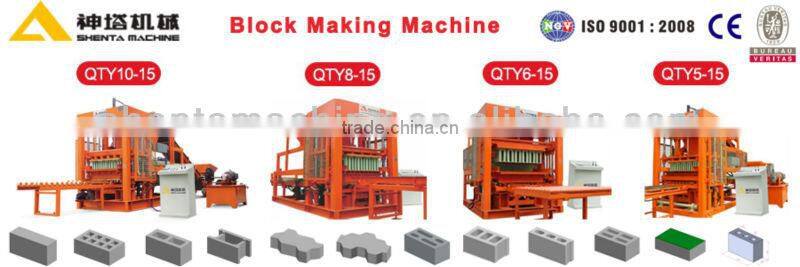

Technical Specification of brick machine of automatic block production line



Model	Exciting Force	Forming Cycle	Pallet Size	Total Power	Net Weight	Overal Dimension
QTY5-15	60(KN)	15~25(s)	1080X550X30(mm)	37(Kw)	7(ton)	3800X1800X3000 (mm)
QTY6-15	65(KN)	15~25(s)	1280X550X30(mm)	41.2(Kw)	8(ton)	3900X2100X3000 (mm)
QTY8-15	100(KN)	15~25(s)	900X900X30(mm)	45.2(Kw)	9(ton)	5200X1900X3100 (mm)
QTY10-15	120(KN)	15~25(s)	1100X950X30(mm)	50(Kw)	10(ton)	5200X2100X3100 (mm)

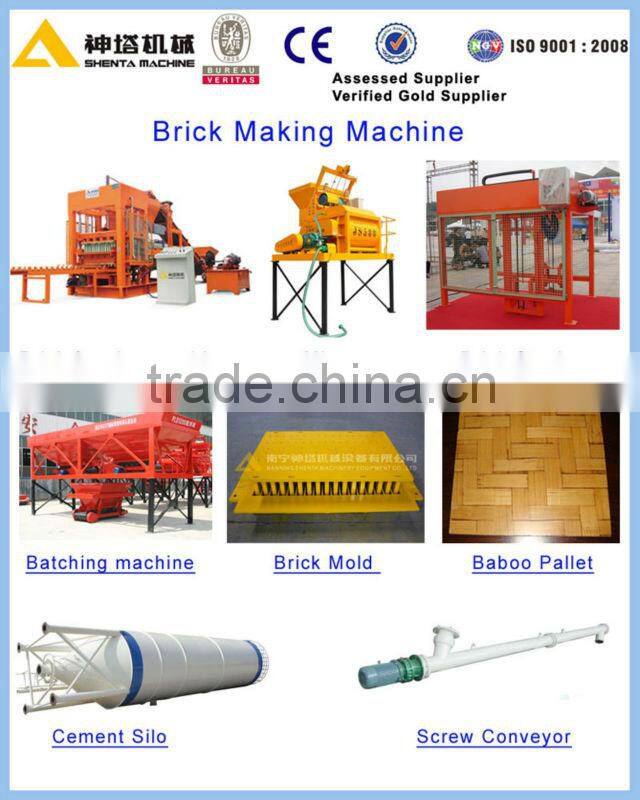

Equipement of automatic block production line

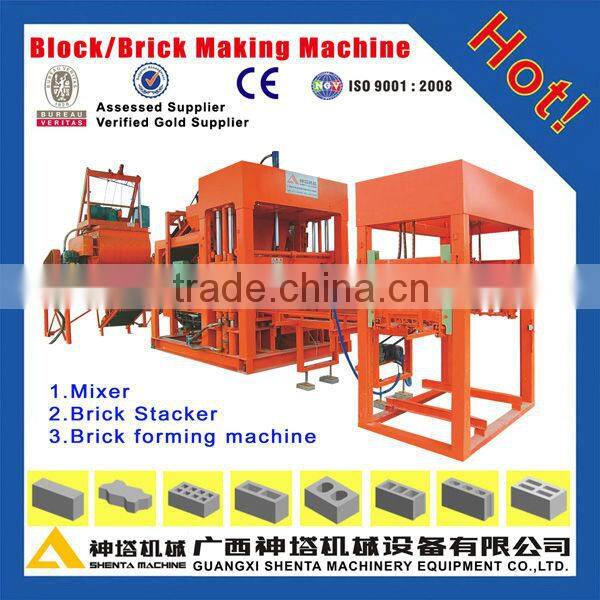

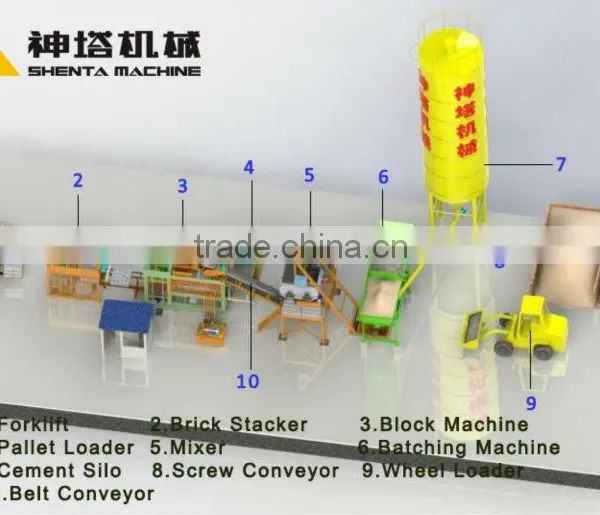

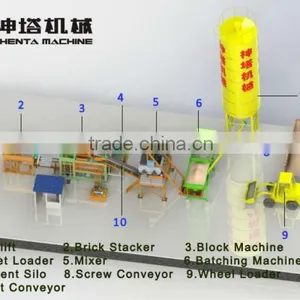

Simple automatic block production line

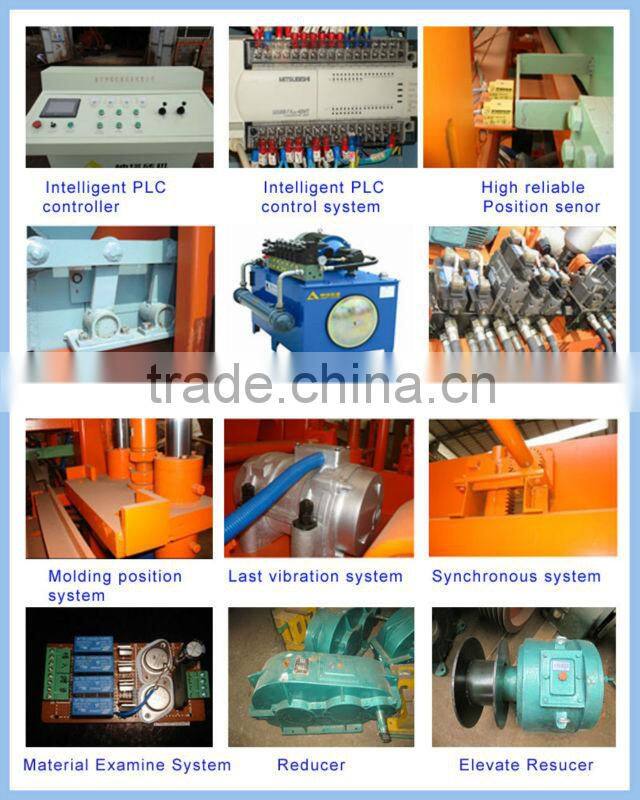

Host block machine deatils











Production Process of used for making kinds of blocks of automatic block production line







Brick raw material of used for making kinds of blocks of automatic block production line





Many kinds of materials such as concrete, cement, sand, crushed stone, dust and fly coal ash, cinder, gravel, perlite, construction refuse, etc. can be used to make brick.



Ratio sample: Cement—12%; Fly ash or refine stone powder or refine sand—38%; Crushed stone (diameter<15mm)—50%

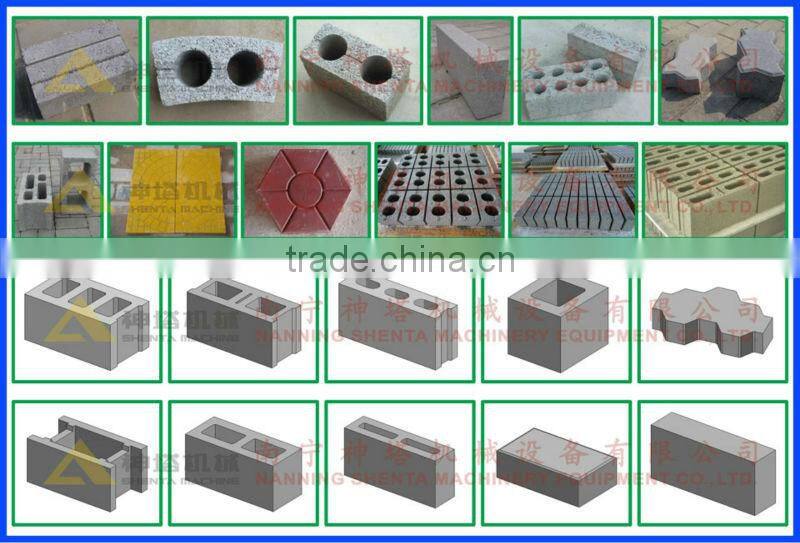

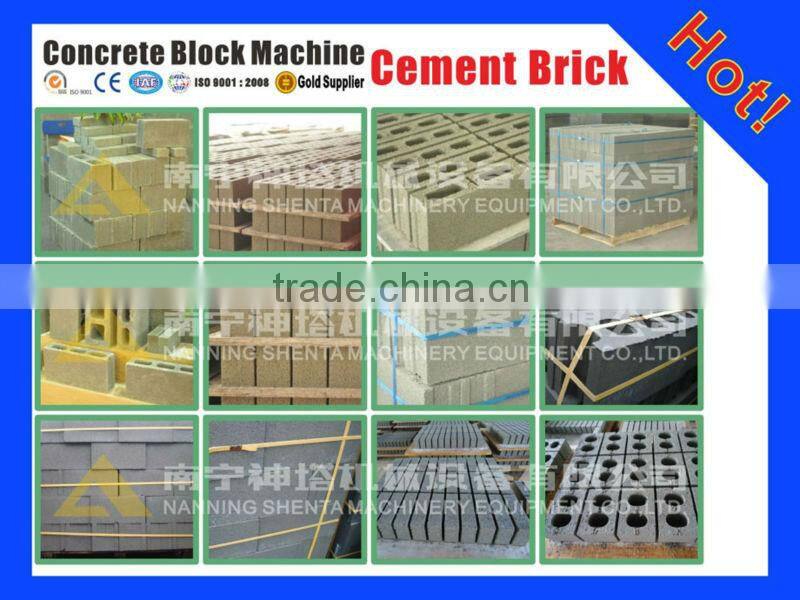

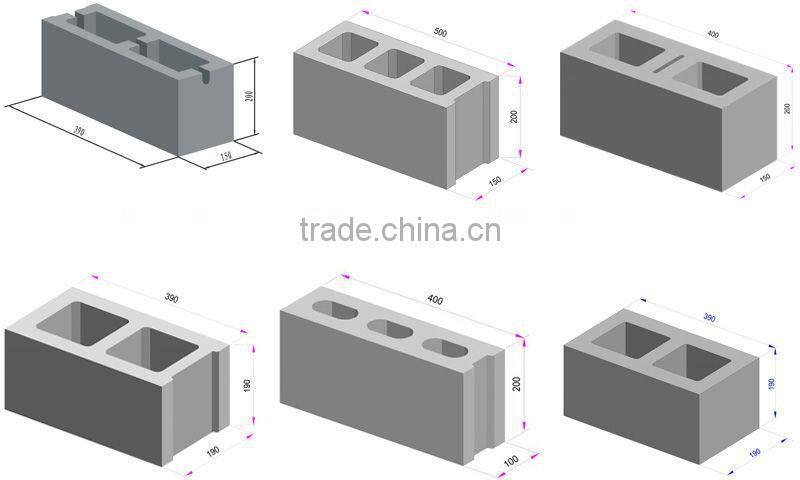

Brick Samples of used for making kinds of blocks of automatic block production line





Various types of concrete block, cement brick, solid brick, hollow block, perforated brick, paving brick,  interlocking block, building brick, garden and landscaping block, grass block, slope block, etc. can be made.















Machine working site







Exhibition show







Company profile





Our Advantages

→ We are brick and block making machine manufacturer with 40 years professional experience. → We can offer large scale, medium scale and small scale brick and block making machine and production line. → We have more than 40,000 square meters production area with over 200 workers. → Welcome to visit Shenta factory.











Pre-sale:



Analyze the customer’s need and factory layout design, confirm scale of operation;



Select the fitting choice;



Provide perfect solution to set up a factory.



Sales:

Help to set up the factory;

Provide free service of installation and commissioning;

Provide training for operator and maintenance person.



After-sale:

Help customers to establish production craft formula;

Provide the consultation all the time;

Supply moulds and parts all the time.



Buying tips:

We are involving in small scale, medium scale, large scale brick and block making machine.

when you want to buy, please tell me:

1) Your bricks size ( length, width and height);

2) Your bricks pricture(If you have);

3) Your production request per day.



Thank you for your attention to SHENTA MACHINE.

Welcome to inquire more information of automatic block production line.

Your inquiry will be highly appreciated.
