Network joystick keyboard controller for ip ptz camera
Technical Specification :
4D IP control keyboard
> Support IP PTZ Control
> Support ONVIF protocol
> Auto-search the ONVIF devices in LAN
| Model No. | IE-C100 |
| Main Chip | GM8126 |
| Power supply | DC12V-1A/Postive outside negative inside |
| RS485 | 3.81 pitch terminal,TA,TB |
| RS232 | Db9 male port |
| Enthernet | RJ45,IEEE802.11b/g/n |
| Support protocol | Onvif 2.4 |
| browser | IE,Firefox,Chrome,Safari and so on |
| weight | 3kg |
| certificate | CE,FCC,Rohs |
| warranty | one year |
> 4D IP control keyboard
> Support IP PTZ Control
> Support ONVIF protocol
> Auto-search the ONVIF devices in LAN
> Support Offline search & add devices.
> Support control IP PTZ to call and set Presets, zoom, focus, Iris, Wiper and Tour functions....etc.
> 160x32 blue LED displayer
IP Keyboard Controller can be applied to installed in Multi-IP PTZ camera places, such as school, hospital, hotel, factory, workshop, etc., realize the unified control of the Onvif protocol in the LAN.
Production Instruction:
Can effectively prevent from scratching. Using industrial-grade LCD,can display excellent quality .Covered with a layer of rigid organic glass makes the characters more clearly. It supports Onvif protocol, high compatibility, extension IP keyboard controller adopt aluminum wire , high-end atmosphere, unique surface hardening, built-in web server configuration interface more simple and more clear, easy operate , just few steps can control IP PTZ camera
Key Features:
> Support Network control model, It has unique IP address.
> Support ONVIF protocol, realize the control to PTZ.
> Support Auto-search the ONVIF devices in LAN
> Support Offline search & add devices.
> Support Max 253pcs front-end equipments in one LAN.
> Support many famous brand IP PTZ Coding
> Support control IP PTZ to call and set Presets, zoom, focus, Iris, Wiper and Tour functions....etc.
> Support adding the front-end equipments’s parameter in IE Browser.
> Japan-Original 4D Joystick
> 160x32 blue LED displayer, can display IP PTZ’s status info.
Backside port of ip keyboard controller
Packing photo of ip keyboard controller

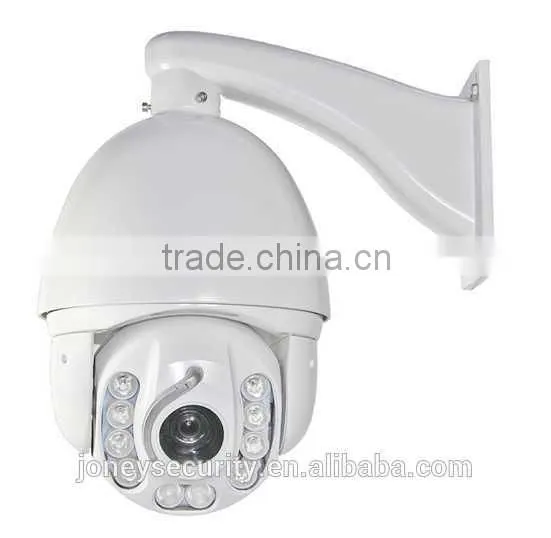

IP network ptz camera
