Specifications
1.3.5 inch LCD screen2.Digital multimeter/ PTZ Controller / Video signal generator / UTP cable tester/Audio
3.DC12V 1A power

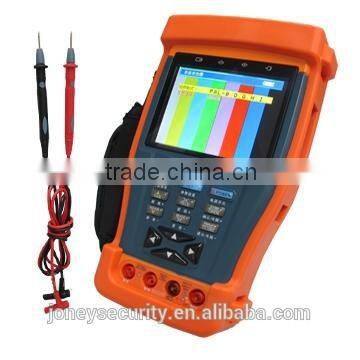

3.5 inch LCD CCTV Camera tester T894
Feartures ip camera tester cctv tester ip camera tester
*3.5" TFT LCD (Supply 12V 1A Power to Camera)
*CCTV system installation and maintenance
*Dome camera and All in one camera testing
*The CCTV transmitting channel testing
* Digital multimeter /PTZ Controller / Video signal generator / UTP cable tester/Audio tester
*Battery works 12 hours
Specification ip camera tester cctv tester ip camera tester
Model |
JY-T894 |
Video Test | |
Signal mode |
NTSC/PAL (Auto adapt) |
Display |
3.5 inch digital TFT-LCD, 960 x 240 resolution |
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
Video Output Mode |
1.0 Vp~p |
Video Level test | |
Level test |
Video signals measured in IRE or mV |
PTZ controller | |
Communication |
RS232, RS422 simplex and RS485 |
PTZ Protocol |
Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. |
Baud Rate |
150, 300, 600, 1200, 2400, 4800, 9600, 19200bps |
Video Signal Generation | |
Color bar generation |
Output one channel PAL/NTSC colorbar video signal for testing monitor or video cable |
Digital multimeter | |
Multimeter |
Voltage, current, resistance and capacitance measuring, continuity testing, diode testing |
UTP CABLE TEST | |
UTP cable test |
Test UTP cable connection status and display in the screen. Read the number of the test box |
DC12V 1A power output | |
DV12V power output |
Output DC12V1A power for camera |
Audio input test | |
Audio input test |
test the pickup and other audio equipments on the front-end |
RS485 data analyst | |
Data Monitor |
Captures and analyzes the command data from controlling device |
POWER | |
Power Adapter |
DC5V, 2A |
Battery |
Built-in 3.7V Lithium polymer battery, 3000mAh |
Rechrgeable |
After charging 3~4 hour, working time lasts 12 hours |
Low Consumption |
Energy saving technology |
General | |
Working Temperature |
-10°C -- +50°C |
Working Humidity |
30% ~ 90% |
Dimension/Weight |
176mm x 94mm x 36mm/340g |
