2.8 Inch Digital TFT LCD Monitor Security Camera CCTV Tester Pro

Name: 2.8 Inch Digital TFT LCD Monitor Security Camera CCTV Tester Pro
Brand: JONEY
SKU: 128323149
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

JONEY

Model Number:

JY-T891

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name JONEY

Model Number JY-T891

Specifications

1.2.8 inch LCD screen
2.PTZ Controller / Video signal generator / UTP cable tester/Audio
3.DC12V 1A power
4.2 years warranty

Product Description

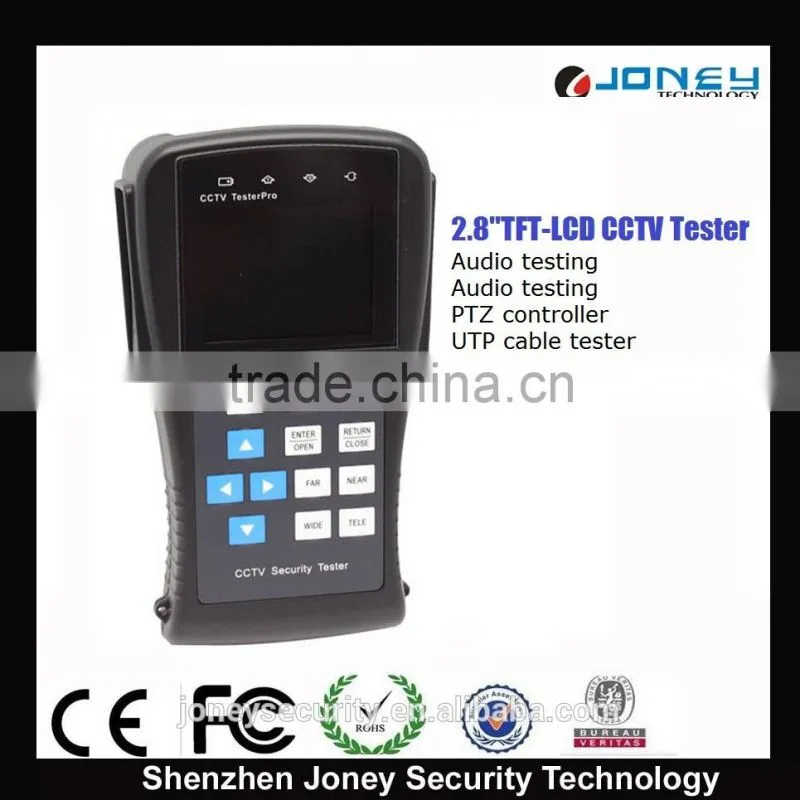

2.8 inch LCD CCTV Camera tester T891

Feartures camera tester cctv tester camera tester

2.8" TFT-LCD,960 (H) x 240 (V) resolution
Video Level testing, video signals measured in IRE or mV
DV12V 1A power output for camera
Audio input test, testing the audio signal from pickup devices

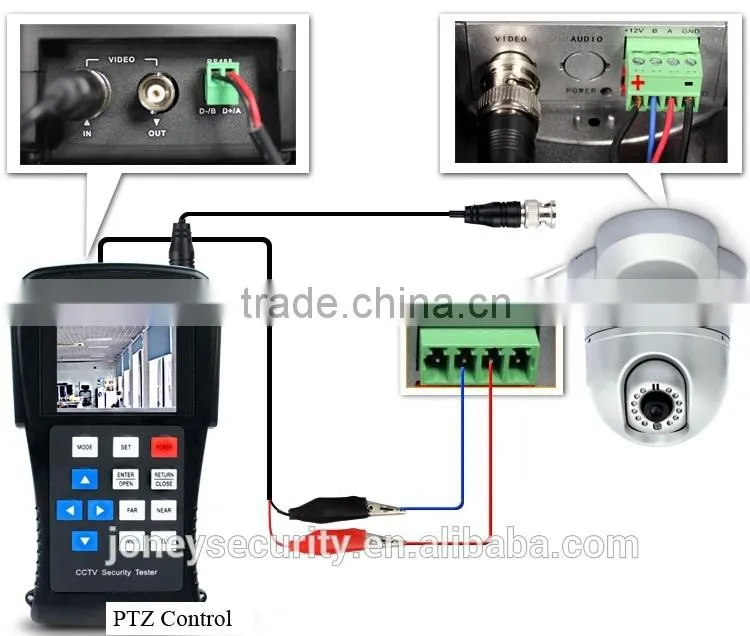

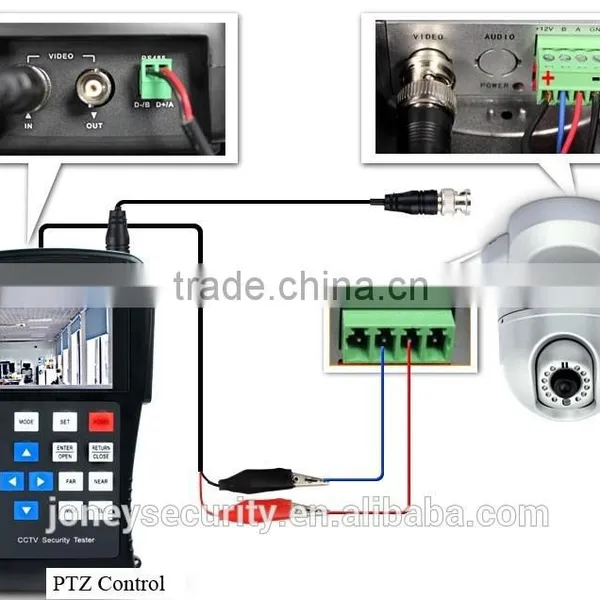

PTZ control. Pan/tilts the P/T unit, zoom in/out the lens, adjusts the focus, aperture and sets and calls the preset position
PTZ continuing rotate test
Video displaying. Automatically adapts and displays the video format of NTSC/PAL
LCD brightness/contrast/color saturation are adjustable
Video generating. The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven-system colorful imagines)
Data analyst, Captures and analyzes RS485 controlling data to help the technician to find out the problem

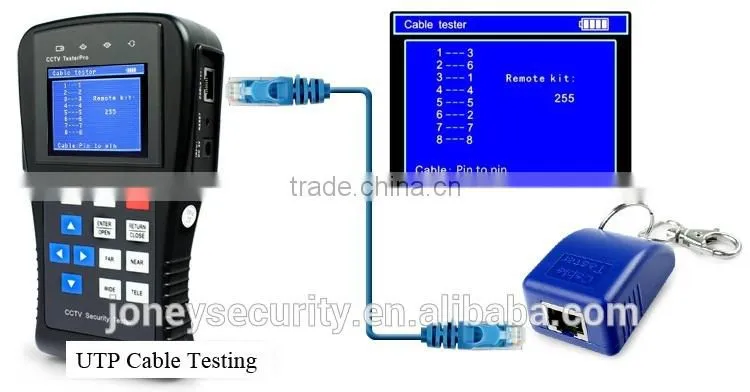

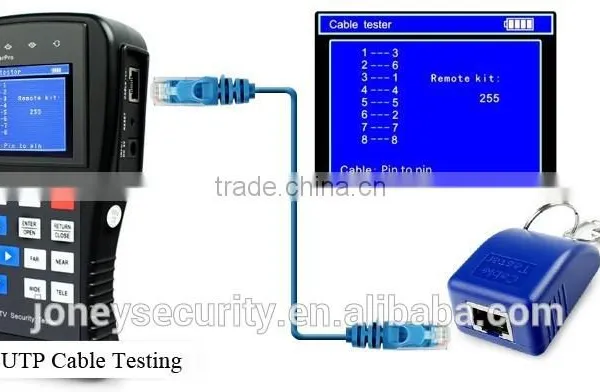

Cable testing. It is powerful in testing LAN cable, measuring the connecting status, displaying the sequence of connection and the NO. of the LAN cable
Multi-interface and Multi-baud rate. Support RS232, RS485, and RS422 interface; baud rate ranging from 150, 600 to 19200bps
Multi-protocol. Supports more than twenty PTZ protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.
PTZ address scanning, search up the ID of PTZ camera
Lithium Ion Polymer Battery (3.7V DV3000mAh). The device employs advanced power control and protection circuit. The device is high power-efficient energy saving and environmental protection. It can last 12 hours for normal use after charging for 4 hours

Specification camera tester cctv tester camera tester

Model	JY-T891
Video Test
Signal mode	NTSC/PAL (Auto adapt)
Display	2.8 inch digital TFT-LCD, 960 x 240 resolution
LCD adjustment	Brightness, Contrast, Saturation adjustable
Video IN/OUT	1 channel BNC Input & 1 channel Output
Video Output Mode	1.0 Vp~p
Video Level test	Video signals measured in IRE or mV
PTZ controller
Communication	RS232, RS422 simplex and RS485
PTZ Protocol	Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
Baud Rate	150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
Video Signal Generation
Color bar generation	Output colorbar video signal for testing monitor or video cable
UTP CABLE TEST
UTP cable test	Test UTP cable connection status and display in the screen. Read the number of the test box
DC12V 1A power output
DV12V power output	Output DC12V1A power for camera
Audio input test
Audio input test	Test the audio from pickup device
RS485 data analyst
Data Monitor	Captures and analyzes the command data from controlling device
POWER
Power Adapter	DC5V, 2A
Battery	Built-in 3.7V Lithium polymer battery, 2800mAh
Rechrgeable	After charging 3~4 hour, working time lasts 15 hours
Low Consumption	Energy saving technology
General
Working Temperature	-10°C -- +50°C
Working Humidity	30% ~ 90%
Dimension/Weight	166mm x 95mm x 48mm/293g
