Home > Products > CCTV ACCESSORIES > Handhold 3.5 inch TFT LCD Display CCTV camera tester

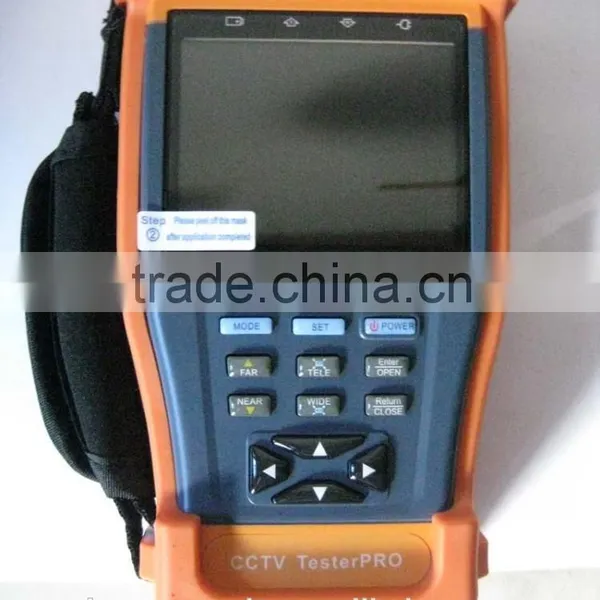

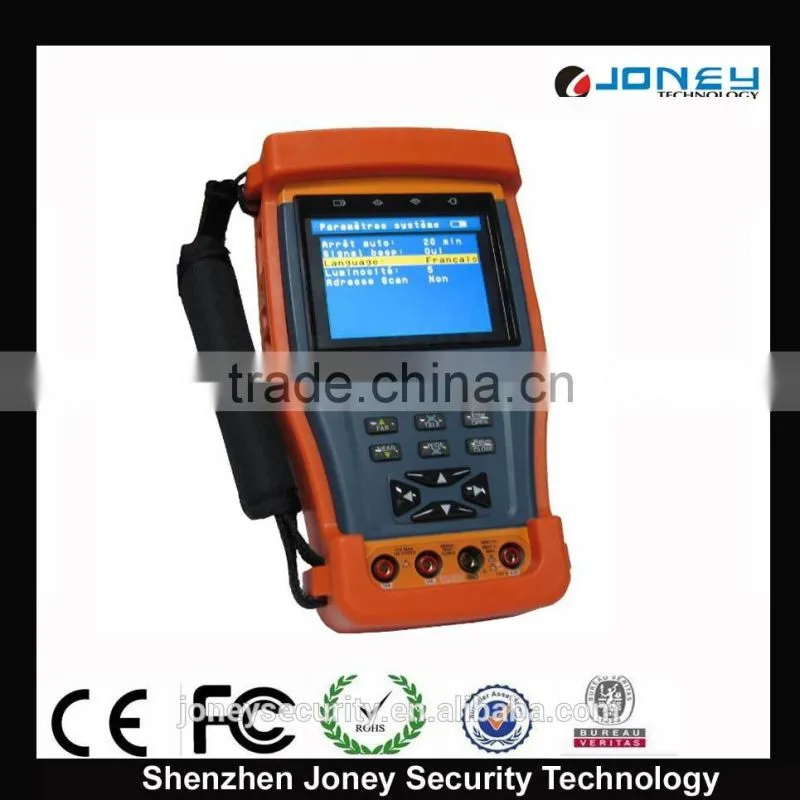

Handhold 3.5 inch TFT LCD Display CCTV camera tester
- 10000 Piece / Pieces per Month
- Shenzhen
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JONEY | Model Number: | JY-T893 |
Product Description
Specifications
1.3.5 inch LCD screen2.PTZ Controller / Video signal generator / UTP cable tester/Audio
3.DC12V 1A power output for camera
3.5 inch LCD CCTV Camera tester T893
Feartures ip camera tester cctv tester ip camera tester
*3.5" TFT LCD (Supply 12V 1A Power to Camera)
*CCTV system installation and maintenance
*Dome camera and All in one camera testing
*The CCTV transmitting channel testing
* /PTZ Controller / Video signal generator / UTP cable tester/Audio tester
*Battery works 12 hours
Specification ip camera tester cctv tester ip camera tester
Model | JY-T893 |
Audio input test | test the pickup and other audio equipments on the front-end |
Battery | Built-in 3.7V Lithium polymer battery ,3000mAh |
Baud Rate | 150,300,600,1200,2400,4800,9600,19200bps |
Color bar generation | Output one channel PAL/NTSC colorbar video signal for testing monitor or video cable. |

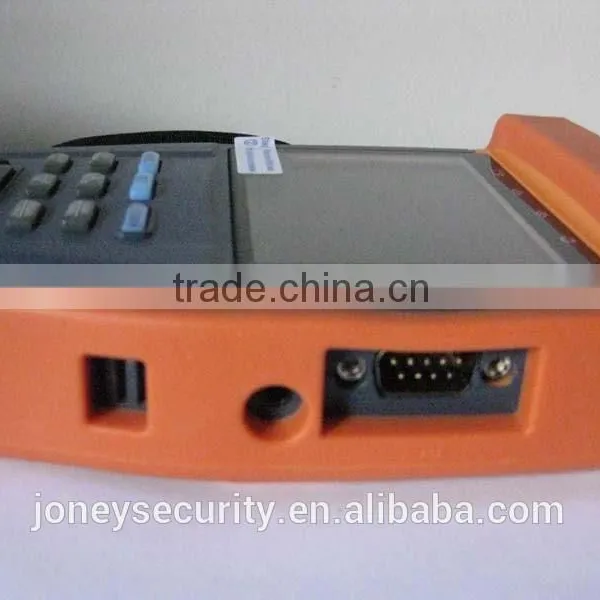

Communication | RS232, RS422 simplex and RS485 |
Data Monitor | Captures and analyzes the command data from controlling device |
DC12V power output | Output DC12V1A power for camera |
Dimension/Weight | 176mmx94mmx36mm/1.3kg |
Display | 3.5 inch digital TFT-LCD ,960 x 240 resolution |
LCD adjustment | Brightness, Contrast, Saturation adjustable |
Level test | Video signals measured in IRE or mV |
Low Consumption | Energy saving technology |
Multimeter | Voltage, current, resistance and capacitance measuring, continuity testing, diode testing. |
Power Adapter | DC5V, 2A |
PTZ Protocol | Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. |
Rechargeable | After charging 3-4 hour, working time lasts 12 hours |
Signal mode | NTSC/PAL (Auto adapt) |
UTP cable test | Test UTP cable connection status and display in the screen. Read the number of the test box. |
Video IN/OUT | 1 channel BNC Input & 1 channel Output |
Video Output Mode | 1.0 Vp-p |
Working Humidity | 30%-90% |
