Place of Origin Guangdong, China
Brand Name JONEY
Model Number JY-T890

Specifications

1.2.8 inch LCD screen
2.PTZ Controller / Video signal generator / UTP cable tester/Audio
3.DC12V 1A power
4.2 years warranty



Product Description

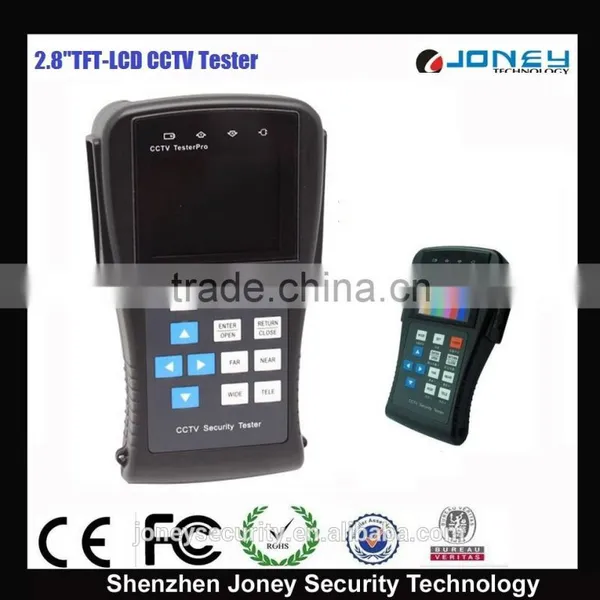

2.8 inch LCD CCTV Camera tester T890

Feartures camera tester cctv tester  camera tester

  • 2.8"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable,
  • NTSC/PAL auto display,  NTSC/PAL colorbar generator,
  • PTZ controller,UTP cable tester, PTZ data analyst, PTZ address scanning,
  • Lithium Ion Polymer Battery support 11 hours working time.

2.8 inch Digital Portable LCD Monitor CCTV Camera CCTV Tester2.8 inch Digital Portable LCD Monitor CCTV Camera CCTV Tester2.8 inch Digital Portable LCD Monitor CCTV Camera CCTV Tester

2.8 inch Digital Portable LCD Monitor CCTV Camera CCTV Tester

Specification camera tester cctv tester camera tester



Model

JY-T890

Video Test

Signal mode

NTSC/PAL (Auto adapt)

Display

2.8 inch digital TFT-LCD ,960 x 240 resolution

LCD adjustment

Brightness, Contrast, Saturation adjustable

Video IN/OUT

1 channel BNC Input & 1 channel Output

Video Output Mode

1.0 Vp-p

Video Level test

Video signals measured in IRE or mV

PTZ controller

Communication

RS232, RS422 simplex and RS485

PTZ Protocol

Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.

Baud Rate

150,300,600,1200,2400,4800,9600,19200bps

Video Signal Generation

Color bar generation

Output channel colorbar video signal for testing monitor or video cable

UTP CABLE TEST

UTP cable test

Test UTP cable connection status and display in the screen. Read the number of the test box.

RS485 data analyst

Data Monitor

Captures and analyzes the command data from controlling device

POWER

Power Adapter

DC5V, 2A

Battery

Built-in 3.7V Lithium polymer battery ,2000mAh

Rechargeable

After charging 3-4 hour, working time lasts 11 hours

Low Consumption

Energy saving technology

General

Working Temperature

-10℃---+50℃

Working Humidity

30%-90%

Dimension/Weight

166mmx95mmx48mm/293g



2.8 inch Digital Portable LCD Monitor CCTV Camera CCTV Tester2.8 inch Digital Portable LCD Monitor CCTV Camera CCTV Tester

2.8 inch Digital Portable LCD Monitor CCTV Camera CCTV Tester
