Specifications
1.take the excellent product2.low price and good severs
3.manufacturer of plastic machine
4.PVC window small profile machine
Contact: Tracy
Skype: sydsaler1
Email: saler01(at)shine-east(.)cn
PVC profile making machine/plastic machinery
Specifications
plastic machinery
FSJSZ Series PVC profile extrusion line is mainly used in PVC door & Window and wall ceiling panel .

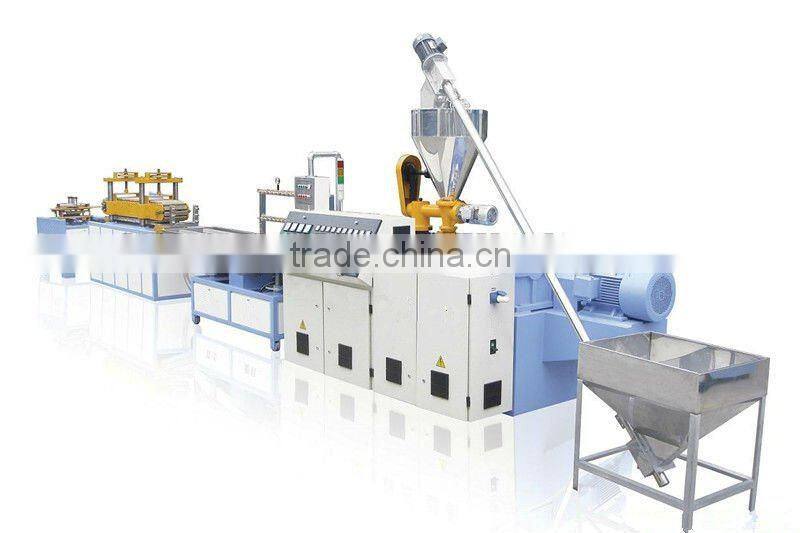

PVC Profile Extrusion Line
FSJSZ Series PVC profile extrusion line is mainly used in PVC door & Window and wall ceiling panel .
The whole extrusion line consists : FSJSZ Twin parallel ( conical) screws extruder die, vacuum calibrating table, Haul off unit, Cutting unit and stacker etc.
(1)Precise designed screw thread lines ensure material with multi profile in good flow melting condition and the PVC profile quality in smoothly ;
(2) Vacuum Calibrating table especial designed enlarged Centrifugal pump
cooling system and ensure the PVC profile in good smooth condition .
(3)The haul off unit adopted the unique lift technique by Friend Company. it work stable and reliable.
(4) Cutting the profile length by automatic counting for 4m.6m,8m 12m. etc.
with PVC powder and scraps suction collect device. ,
(5) Multi-holes profile and section profile available.
(6) PLC/ PCC electrical control system for the customer selection.
Technical Parameter:
|
Model
|
Profile width Range (mm) |
Extruder Model
|
Haul of force ( KN) |
Max.Output (kg/h) |
Total installed Power( Kw) |
OverallDimension LXWXH |
FPVC-180 |
180 |
FSJSZ-51/105 |
15 |
120 |
58 |
12X2.0X2.0 |
FPVC-240 |
240 |
FSJSZ-60/125 |
30 |
180 |
82 |
16X2.0X2.0 |
FPVC-400 |
400 |
FSJSZ-65/132 |
30 |
250 |
110 |
20X2.6X2.5 |
FPVC-600 |
600 |
FSJSZ-80/156 |
40 |
420 |
165 |
25X2.6X2.5 |
FPVC-800 |
800 |
FSJSZ-80/156 |
50 |
420 |
200 |
28X2.6X2.5 |
