Gusset plate production line, trough screw extrusion lines with special mixing function and high plasticizing capacity design to ensure good and stable high yield plasticizing rubber extrusion . The device die with two throttle design , wall thickness can be adjusted according to different pinch of ensuring error-free weight pinch . Pinch host extrusion capacity production line can be between 70 kg to 120 kg per hour .

Vacuum forming production line using a special pinch increase vortex cooling system for cooling stereotypes, tractor smooth, no indentation product surface , good reliability, great traction . To meet the needs of high-speed extrusion . Cutter movement speed to keep pace with the pulling speed , all action reasonable design , stable operation can be automatically cut to length

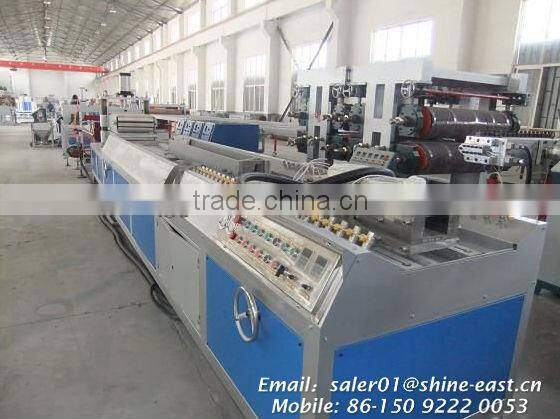

Main parameter:

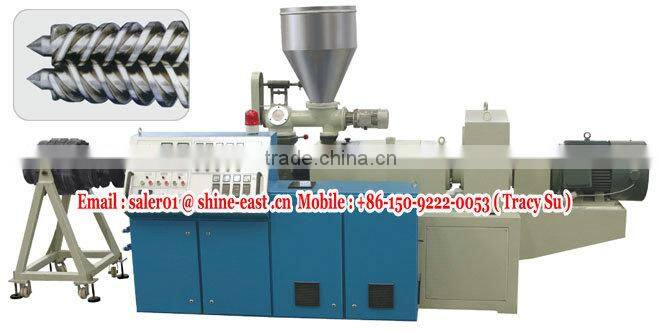

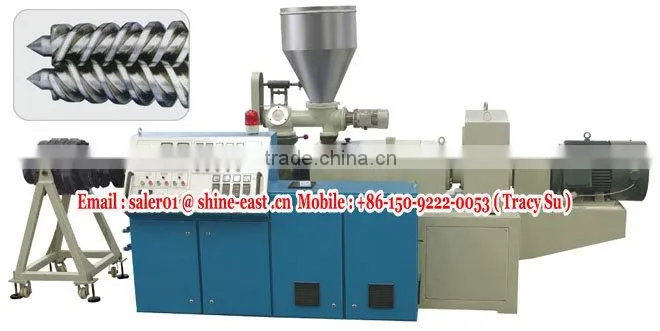

Item Description Unit SJSZ51/105

1 Output Capacity Kg/h Max. 150

2 Number of the Screws 2

3 Diameter of the Screw mm 51/105

4 Rotating Direction of the Screws Forth & Reverse

5 Rotation Speed of the Screw r/min 1-34.7

6 Available Working Length of the Screws mm 1430

7 Main Motor Power Kw 18.5

8 Speed Adjusting Mode frequency conversion adjustable, ABB Inverter

9 Gear reducer Rigid-gear surface low noise design

10 Heating Capacity of the Screw barrel Kw 16( casting-aluminium electric-thermal elements )

11 Material of the Screws and the barrel 38CrMoA1

12 Nitriding Depth of the Screws and the barrel mm 0.5~0.7

13 Nitriding rigidity of the Screws and the barrel HRC 50~55

14 Cooling Mode of the Screw barrel by air cooling

15 Temperature Adjustment of the Screws By Screw-core Temperature Adjusting Device

16 Indicators Melt pressure & temperature indication by gauge

17 Temperature controller Brand: Omron, Japan

18 Element of Electric System ( contactors, buttons, switches ) Brand: Schneider

19 Power of the Vacuum Pump Kw 1.5

20 Max. Vacuum Degree MPA -0.093

21 Cooling Water Consumption L/min 1~3

22 Plastic Material Feeding Mode By Fixed-quantity Screw

Feeding Device

23 Rotation Speed of the Feeding Screw R/min 3.5~47 ( frequency conversion )

24 Height of the Screw Axes mm 1000

25 Figure Dimensions ( L× W× H ) mm 3300× 1450× 2100

26 Weight Kg 4000

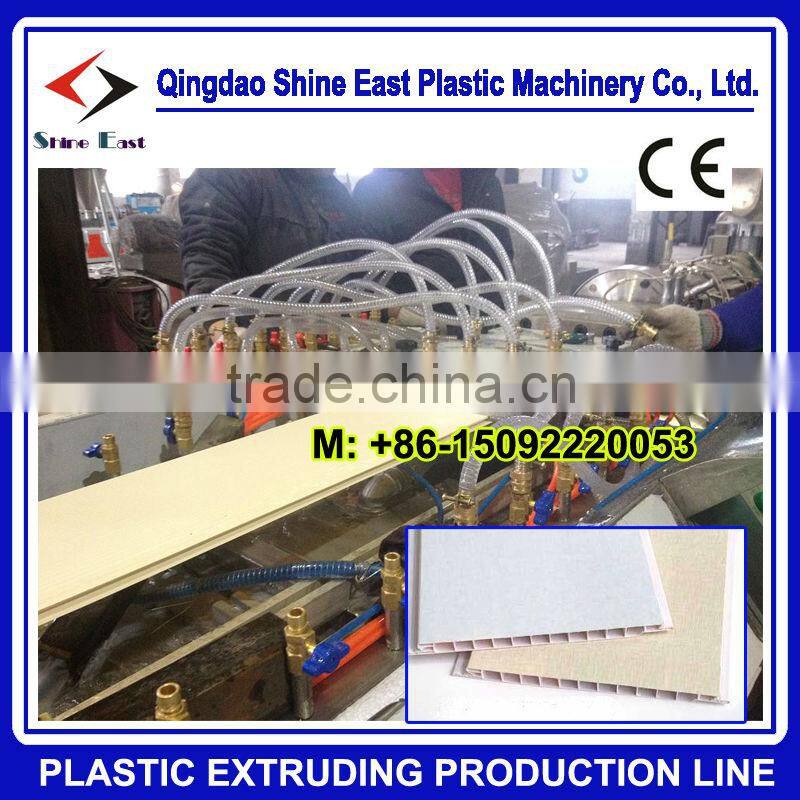

A. 2.4.3 Vacuum calibration table type QDY-210

Item Description Unit ZDY-210

1 Length of the table mm 4000

2 Material of the tank stainless steel

3 power of vacuum pump and quantity Kw 5.5*3, 4*1

4 Water pump power Kw 1.5*1, 0.75*1

5 max vacuum degree MPA 0.02-0.09

6 valid length of holding mold mm 5900

7 vacuum interface and water pip interface PCS 32 /32

8 max vacuum exhausting m3/h 180

9 Up-down Adjusting Range mm ± 40

10 Left-right Adjusting Range mm ± 40

11 Axes line height mm 1000

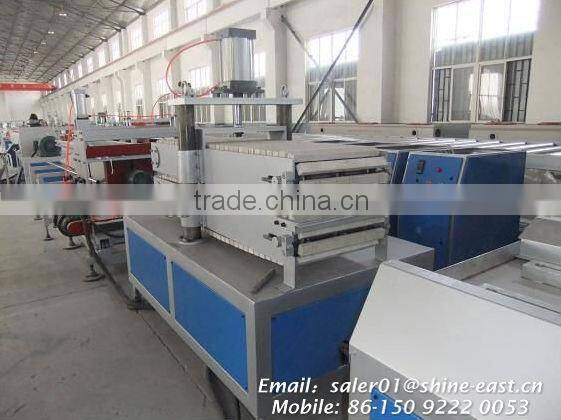

A. 2.4.4. Hauling-off Machine type QYY-210

Item Description Unit QDY-210

1 Hauling Motor Power Kw 4

2 max hauling Force N 30000

3 Hauling moving Speed m/min Up to 0.3-4.5 m/min

4 pedrail width and valid length mm 240/2800

5 pedrail clamping unit adopt pneumatic clamping

6 reducer amount and power 2 sets/1.5kw

7 Speed adjustment Frequency Conversion ABB Inverter

8 Axes Height mm 1000

9 Element of Electric System From Seimens, Suzhou

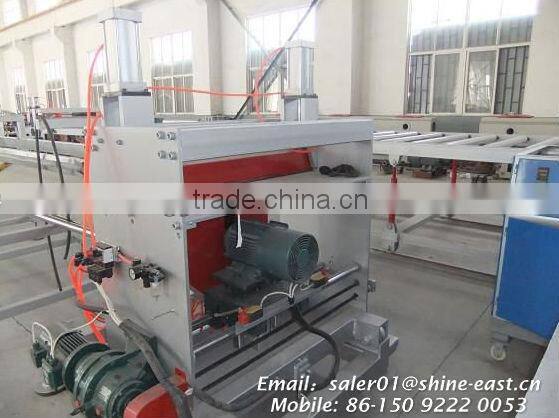

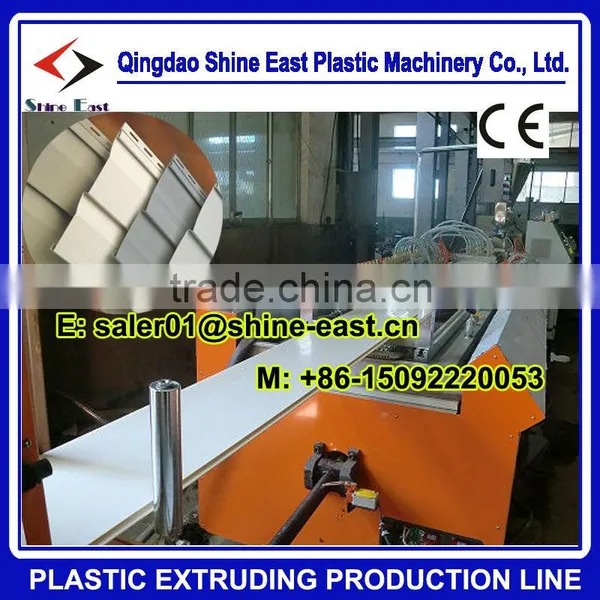

A. 2.4.5 Cutting machine type QDY-210

Item Description Unit QGY-210

1 Saw diameter mm Φ 400

2 Cutting motor power KW 1.1

3 cutting direction from down to up

4 Rotation speed Rev/min 2840

5 cutting time and moving length 1-5sec/hypo; 0-500mm

6 Material of Cutting Saw Alloy steel

7 Clamping Mode Pneumatically Drive

8 dust absorption unit blower: 1.5kw, round bag style

9 Cutting Control Pre-set length, Automatically Cutting, or manual operation

10 Electric elements Brand: Siemens

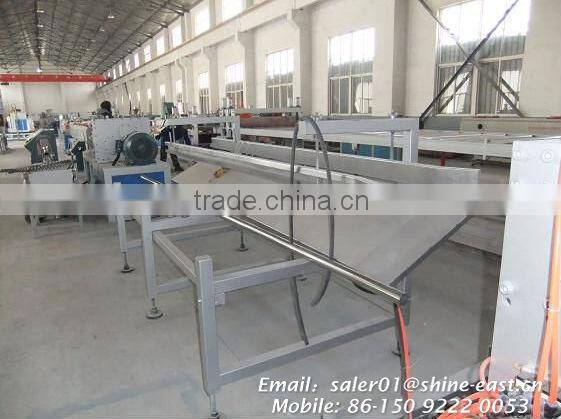

A. 2.4.6 Stacker type SFL-6000

Item Description Unit SFL-6000

1 Working Mode Pneumatically drive

2 drive of discharging frame pneumatic; 63× 100 cylinder-2 sets

3 material of panel 1Cr18Ni9Ti Stainless Steel

4 Working length mm 6000

5 Axes Height mm 1000

6 Material of the tilting plate Stainless Steel

7 Figure Dimension Mm 6000× 700× 1250

8 Weight Kg 450
