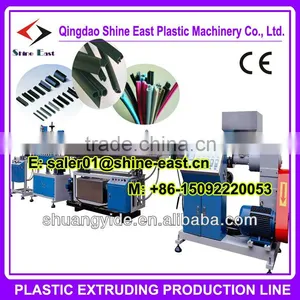

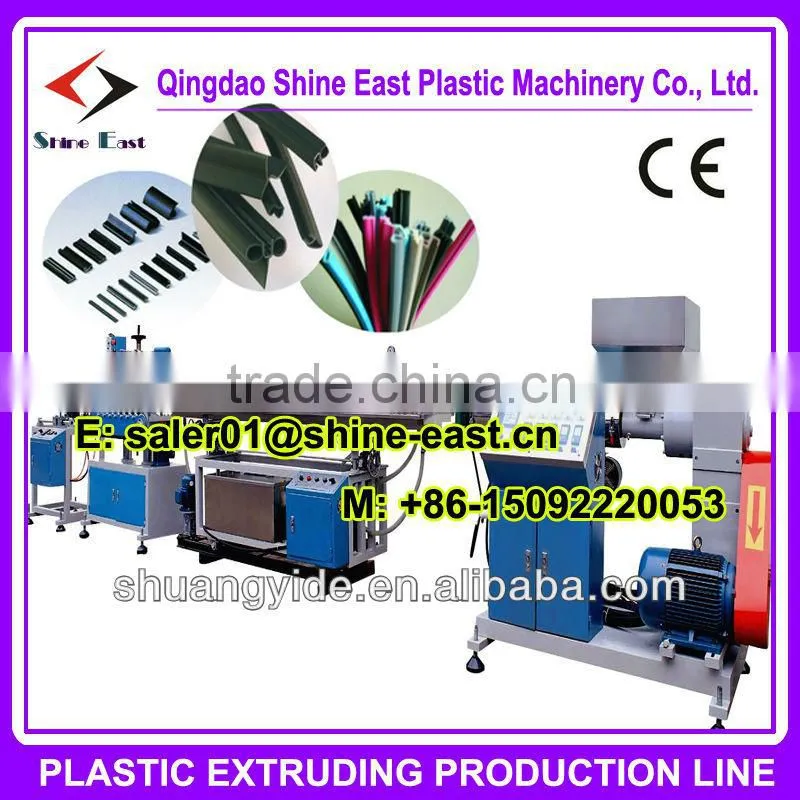

Help CenterPVC/SPVC/TPE/TPV/TPO/TPU Sealing Strip Extrusion Machine / Door Gasket Frame Production Line for Window and Door or Car
Related Products
-
PVC/SPVC/TPE/TPV/TPO/TPU Automotive Sealing Strip Extrusion Machine / Door Gasket Fram Production LineUS$ 30,000 - 200,000MOQ: 1 Set -
PVC/SPVC/TPE/TPV/TPO/TPU Sealing Strip Extrusion Machine / Door Gasket Fram Production LineUS$ 30,000 - 200,000MOQ: 1 Set
-
Automotive Sealing Strip Extrusion Machine / Plastic MachineryUS$ 30,000 - 200,000MOQ: 1 Set
-
Plastic Profile Machine / Profile Machine / PVC Vinyl Siding Production MachineUS$ 23,950 - 86,000MOQ: 1 Set
-
PVC Ceiling Panel Making Machine / Profile Production LineUS$ 30,000 - 65,000MOQ: 1 Set
Specifications
1.PVC Seal strip machine2.high speed: 10-20m/min
3.Low cost
4. daily output >10000m
5. Power 2kW
Plastic Machine for New automotive Seal Strip
PVC/SPVC/TPE/TPV/TPO/TPU Sealing Strip Machine:
Raw material:
PVC soft granule
Output:
30-40kg/h
Extruder:
single screw extruder
Process Flow:
PVC+Additive→Mixing→Loader→Single screw extruder→Cooling water tank→Haul-off→Winder
(Auxiliary machines:Crusher,Air compressor)
Feature of final product:
1. Good appearance:Smoth and beautiful
2. Good elasticity and anti-compressive deformation,resistance aging and ozone and chemical action
3. Good PVC material quality:Range the temperature from -20 °F - 150 °F (-29°C - 65.5°C)
4. Good Weather resistant
5. Good Fire and Water resistance
6. Suitable for Window and Door.
Automotive Seal Strip is one of the most important parts of the car, which is widely used in the door, window, car body, skylight, motor racks and backup (baggage) box and other parts, with sound insulation, dustproof, seepage control water and shock absorption function.
High performance single screw extruder and multi extrusion, and equipped with precision mold and auxiliary lines, it can process different automotive seal strip materials such as PVC/SPVC, TPE (TPV, TPO,TPU) and different types (hard and soft, soft hard combination, lined with alloy frame, metal fixture, tongue shape of car seal buckle, etc.); This production line is equipped with gluing machine, flocking machine, drying road etc, and can meet the requirement of automotive interior flocking strip production. Replacing the corresponding screw barrel, this production line can also be used to process the seal strip used on common mechanical device, with a wide range of application
.
Equipment list:
1. SJ-65/25 single screw extruder 1 set
2. Mould 1 set
3. Vacuum trough 1 set
4. Hauling off 1 set
5. Winding machine 1 set
Pre-sale
We provide presales service in various forms, for example, making investment budget, manufacturing planning, etc. So that customers make a reasonable plan with less cost.
In-sale
Detailed design of lay-out that is the position of the procession
Technological information of the machine you want
Schedule about design, manufacturing and installation
Working & Producing progression
Training course for the technician so that the installation is safe and standard
After-sale
For customers buying our products, we provide them free training so that they can use and maintain
the machine independently. Our Warranty is 1 year for whole machinery. We will provide the technical
advice and find the solution immediately for you when the machine is in trouble-shoot. For those wear parts, we guarantee the high quality parts for long-term supply
For choosing proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (tons per hour )
3).what is the max and min size of the finish prducts For example, the diameter of pipe(inch or mm); thickness of pipe wall(mm); width and thickness of sheet (mm)? If profile product, you’d better offer the picture of sample or drawing of sample.
4).what is the electric device you need ? Siemens,Omrn or domestic ?
5) When do you want the machine? (times for delivery)
6) Other requirements about the machine you want.
7) Please inform us your voltage, all we offer is 380V/3P/50HZ
Rely on us for a fast and competent response to all your service needs anywhere in the world. Whatever you need-from troubleshooting and training to spare parts-we’re on the job.
