QD-253 Post Purge Timer / off Delay Timer / Time Delay 12-390 Seconds Adjustable
US$ 2 - 3
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HC
Model Number:
QD-253
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QD Series Time Delay on Break (3 or 5 Minutes Fixed or .03-10 Minutes Adjustable)US$ 1 - 2MOQ: 100 Pieces -
QD-072 Air Conditioner Time Delay, Time Delay RelayUS$ 1 - 2MOQ: 100 Pieces
-
QD204/205/206 Time Delay on Break (3 or 5 Minutes Fixed or .03-10 Minutes Adjustable)US$ 1 - 2MOQ: 100 Pieces
-
QD-175 Bypass Timer / Time Delay Adjustable From 10-1000 SecondsUS$ 1 - 2MOQ: 100 Pieces
-
QD100/101/068 Time Delay on Make ( 3 or 5 Minutes Fixed, .03-10 Minutes Adjustable)US$ 1 - 2MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
HC
Model Number
QD-253
Theory
Time Relay
Usage
General Purpose
Size
Miniature
Protect Feature
Other
Contact Load
Other
Specifications

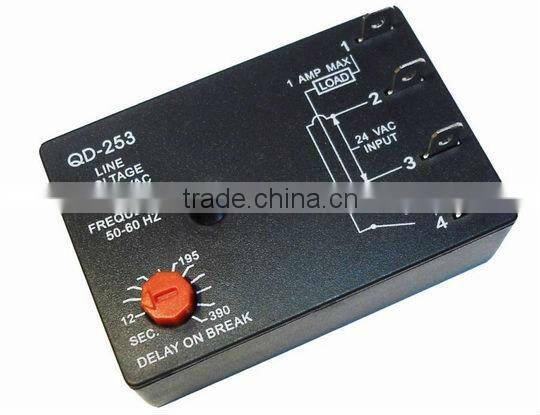

* Post purge timer / off delay timer*QD-253 knob-adjustable OFF delay 12-390 seconds
Post purge timer / off delay timer
*QD-253 knob-adjustable OFF delay 12-390 seconds
* OFF delay purges ducts of residual air to increase efficiency
Installation
1. Disconnect power.
2. Connect terminals as shown in the wiring diagram below.
3. Select desired delay on break period.
4. Reapply power, check operation.
Specification
Input:
Line Voltage: 18-30 VAC
Line Frequency: 50/60 HZ
Output Output Ratings:
Maximum: 1 amp
Minimum: 20 mA
Inrush: 10 amps
Time Delays (Adjustable Only)
OFF delay: 12-390 seconds
Mode of Operation
Power must be applied before and during the time delay period. When the initiate contact closes, the load energizes and remains energized as long as the initiate contact is closed. The time delay begins when the initiate contact opens. At the end of the time delay period, the load is turned off. If the initiate contact recloses during the time delay period, the load remains energized and the time delay is reset to zero. Removal of the input power during the delay turns off the load and resets the time delay to zero. A one-second interrogation delay is provided to avoid nuisance trips due to thermostat bounce or tampering.

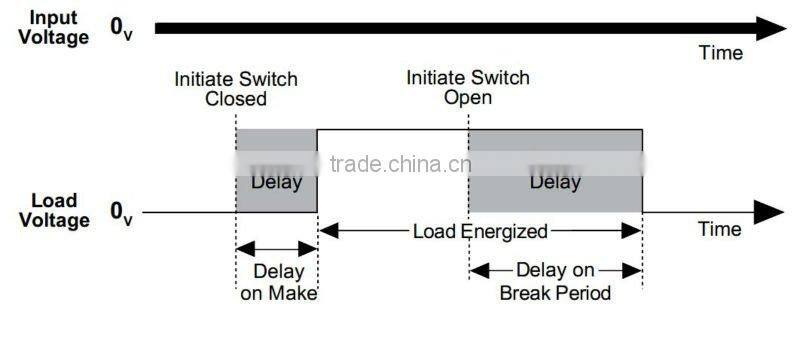

Timing Diagram
System Diagram
For Replace:
Mars:32393 ICM253 Gemline:IC216
