QD-072 Air Conditioner Time Delay, Time Delay Relay
US$ 1 - 2
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Type:
Other, Air Conditioner Parts, Compressor
Application:
Commercial
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-

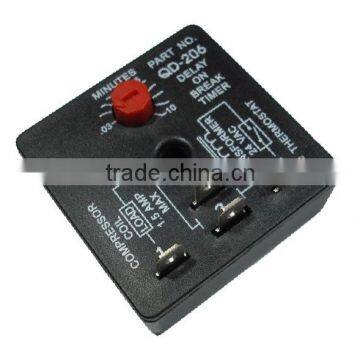

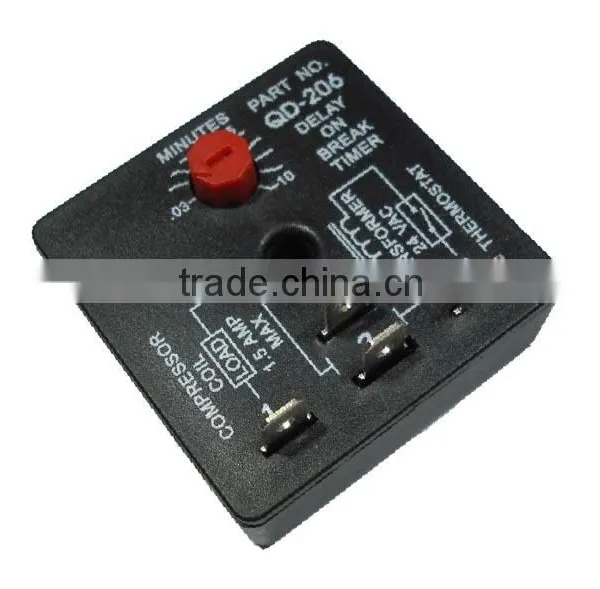

QD204/205/206 Time Delay on Break (3 or 5 Minutes Fixed or .03-10 Minutes Adjustable)US$ 1 - 2MOQ: 100 Pieces -

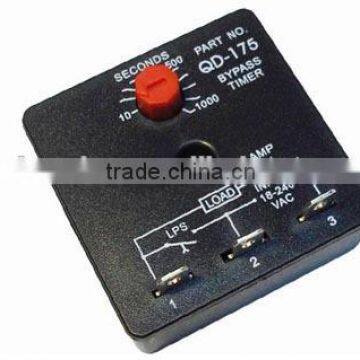

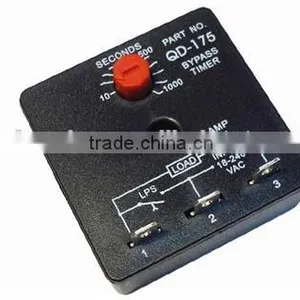

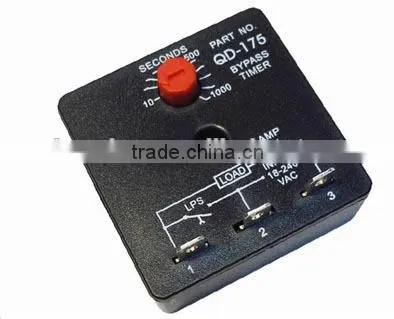

QD-175 Bypass Timer / Time Delay Adjustable From 10-1000 SecondsUS$ 1 - 2MOQ: 100 Pieces
-

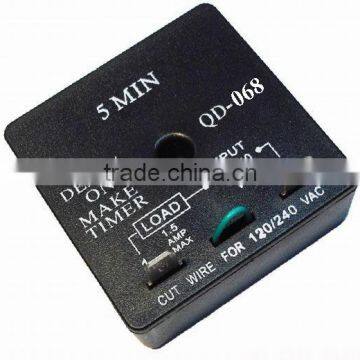

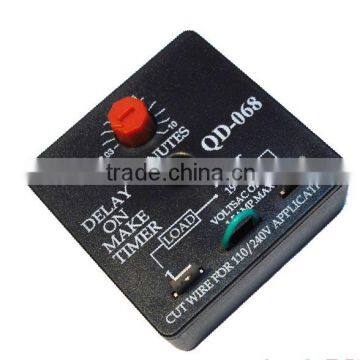

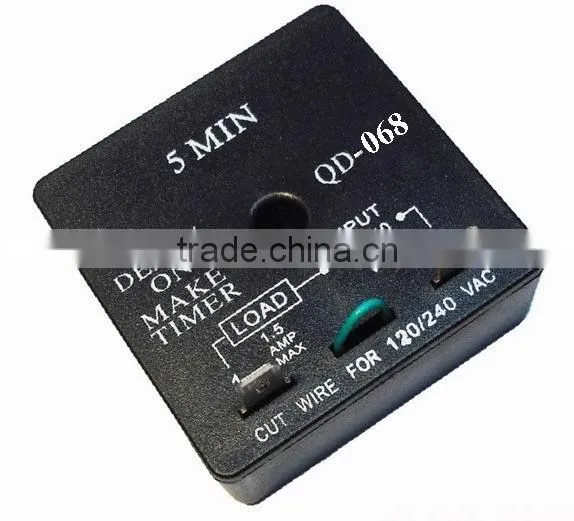

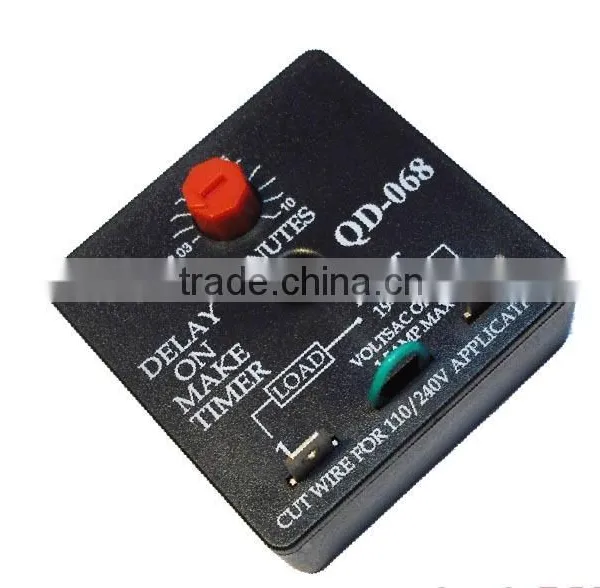

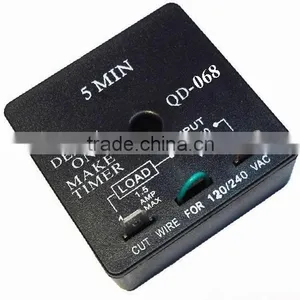

QD100/101/068 Time Delay on Make ( 3 or 5 Minutes Fixed, .03-10 Minutes Adjustable)US$ 1 - 2MOQ: 100 Pieces
-
DS-ALL Universal Adjustable Defrost TimerUS$ 2 - 3MOQ: 100 Pieces
-

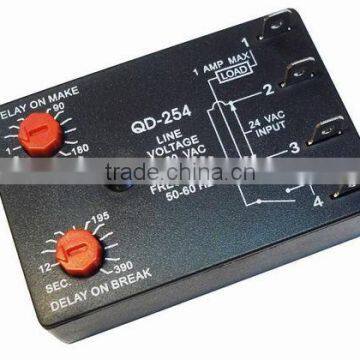

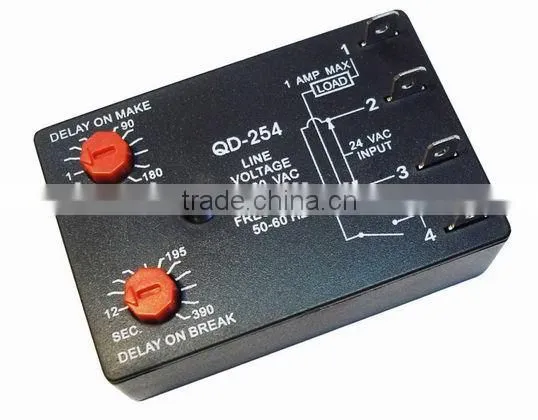

QD-254 Post Purge Timer / ON/OFF Delay TimerUS$ 2 - 3MOQ: 100 Pieces
Type
Other, Air Conditioner Parts, Compressor
Application
Commercial
Place of Origin
Jiangsu, China
Brand Name
HC
Model Number
QD-072
Time delay reply, air conditoner time delay, Time delay & time relay
Works with anticipator thermostat
* Time delay on break
* QD-072 Knob adjustable time delay from .03-10 minutes
Installation
1. Disconnect power.
2. Connect terminals in series with the starting device as shown in the system diagram below.
3. For 24 VAC circuits, apply control as packaged. For 120/240 VAC circuits, cut the jumper wire.
4. Select the desired time delay.
5. Reapply power, check operation.
Specification
Input:
Line Voltage: 18-240 VAC
Line Frequency: 50/60 HZ Output:
Output Ratings:
Maximum: 1.5 amps
Minimum: 40 mA
Inrush: 15 amps
Time Delay: .03-10 min. adjustable
Mode of Operation
Upon application of power, the load is energized. When the thermostat opens or there is a loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period. The QD-072 provides true thermostat interruption protection, even in the presence of a trickle current.
Timing Diagram
System Diagram
For replaces:
Other time delay relay for air conditioner & refrigerator defrost timer:
http://hc-elec.en.china.cn/productgrouplist-214942932/Time_delay_relay_defrost_timer.html
Our advantage:
1.Good quality and price
2.Experienced work staff and R&D staff
3.Prompt delivery guaranteed
