QD204/205/206 Time Delay on Break (3 or 5 Minutes Fixed or .03-10 Minutes Adjustable)

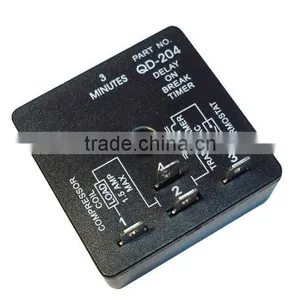

QD204/205/206 Time Delay on Break (3 or 5 Minutes Fixed or .03-10 Minutes Adjustable) thumbnail-1

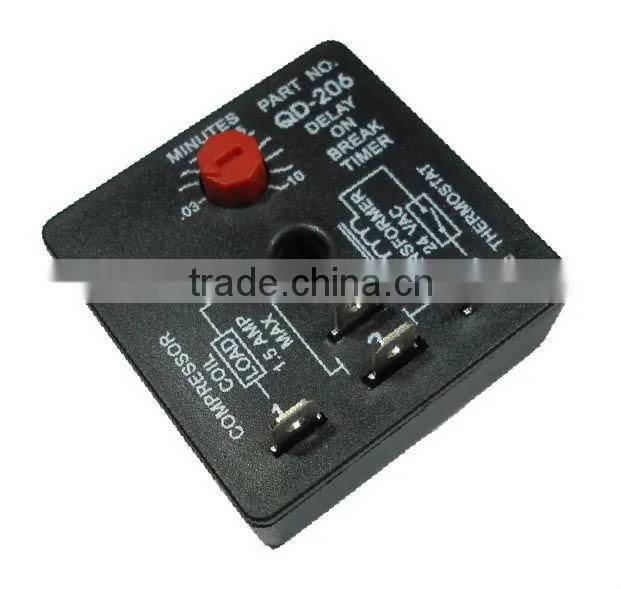

QD204/205/206 Time Delay on Break (3 or 5 Minutes Fixed or .03-10 Minutes Adjustable) photo-1
US$ 1 - 2 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HC
Model Number:
QD204/205/206
Contact Supplier Request Quote Chat Now
Changzhou HanCong Electrical Control Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HC
Model Number QD204/205/206
Theory Time Relay
Usage General Purpose
Size Miniature
Protect Feature Other
Contact Load Other

Specifications

*Time delay on break
*QD-204 3 minutes time delay
*QD-205 5 minutes time delay
*QD-206 adjustable time delay from .03-10 min

Time relay /  time delay on break

Works with anticipator thermostats

*QD-204 3 minutes time delay
*QD-205 5 minutes time delay
*QD-206 adjustable time delay from .03-10 minutes

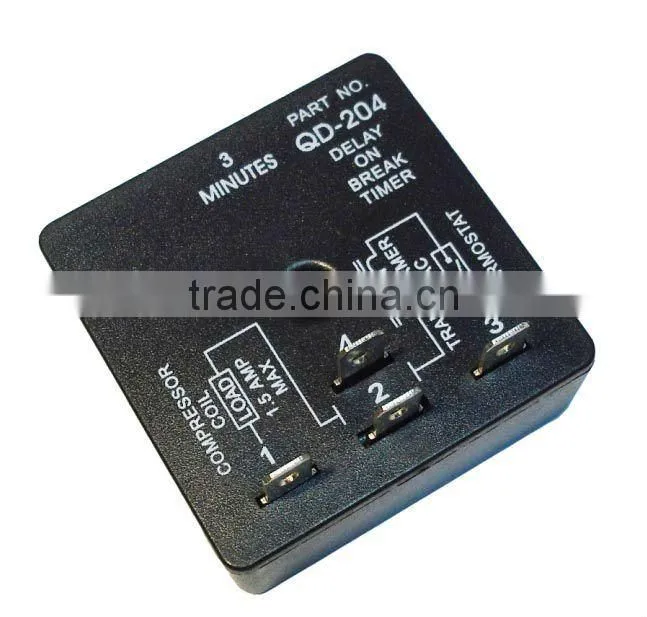

  QD204/205/206 time delay on break (3 or 5 minutes fixed or .03-10 minutes adjustable)

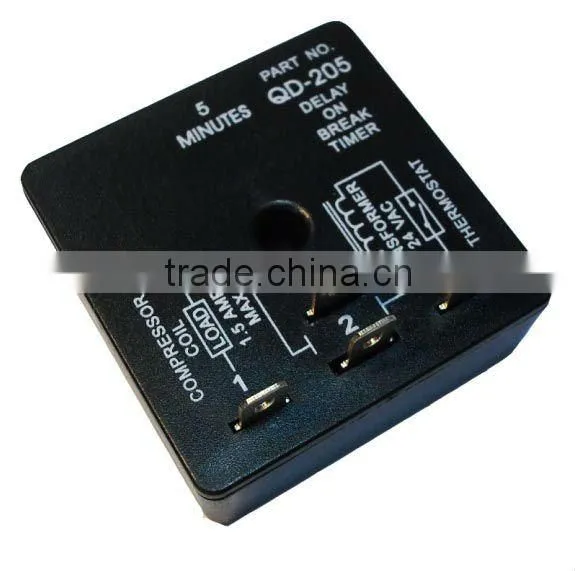

QD204/205/206 time delay on break (3 or 5 minutes fixed or .03-10 minutes adjustable)





QD204/205/206 time delay on break (3 or 5 minutes fixed or .03-10 minutes adjustable)



 Installation


1. Disconnect power.
2. Connect terminals as shown in the wiring diagram below.
3. Select desired time delay (adjustable models only).
4. Reapply power, check operation.



Specification

Input:
Line Voltage: 18-30 V
Line Frequency: 50/60 HZ
Output:
Output Ratings:
Maximum: 1.5 amps
Minimum: 40 mA
Inrush: 15 amps
Time Delay:
3 or 5 minute fixed
.03-10 minutes. adjustable




Mode of Operation

With application of power, the load is energized. When the thermostat opens or there is a loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period. QD Models 204/205/206 provide true thermostat interruption protection, even in the presence of a trickle current.

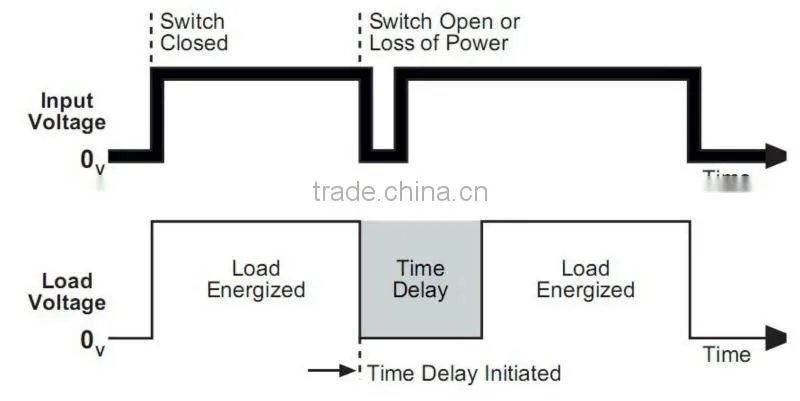

Timing Diagram



QD204/205/206 time delay on break (3 or 5 minutes fixed or .03-10 minutes adjustable)

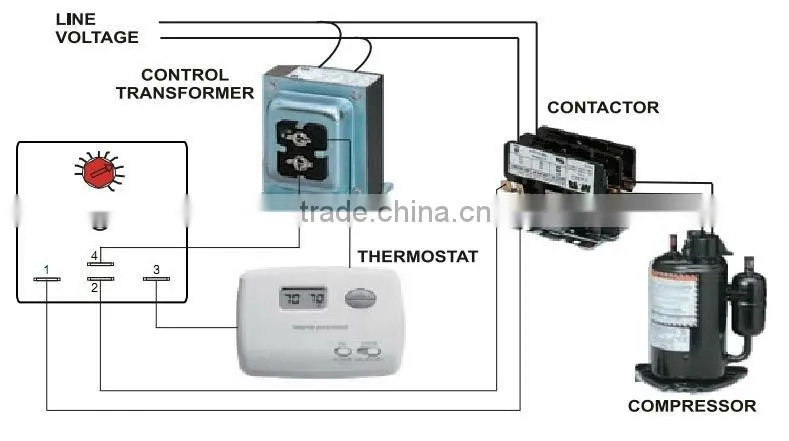

System Diagram

QD204/205/206 time delay on break (3 or 5 minutes fixed or .03-10 minutes adjustable)



For replaces:

 QD204/205/206 time delay on break (3 or 5 minutes fixed or .03-10 minutes adjustable)
