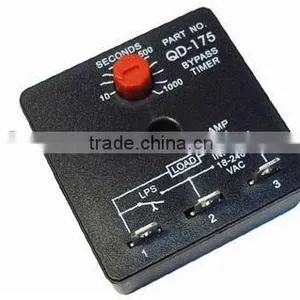

QD-175 Bypass Timer / Time Delay Adjustable From 10-1000 Seconds
US$ 1 - 2
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HC
Model Number:
QD-175
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QD100/101/068 Time Delay on Make ( 3 or 5 Minutes Fixed, .03-10 Minutes Adjustable)US$ 1 - 2MOQ: 100 Pieces -
DS-ALL Universal Adjustable Defrost TimerUS$ 2 - 3MOQ: 100 Pieces
-
QD-254 Post Purge Timer / ON/OFF Delay TimerUS$ 2 - 3MOQ: 100 Pieces
-
QD-253 Post Purge Timer / off Delay Timer / Time Delay 12-390 Seconds AdjustableUS$ 2 - 3MOQ: 100 Pieces
-
QD Series Time Delay on Break (3 or 5 Minutes Fixed or .03-10 Minutes Adjustable)US$ 1 - 2MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
HC
Model Number
QD-175
Theory
Time Relay
Usage
General Purpose
Size
Miniature
Protect Feature
Other
Contact Load
Other
Specifications
* Bypass timer / time delay* Ideal for "winterstart" kits
* Knob adjustable time delay from 10-1000 seconds
Time delay , time relay, bypass timer
•QD-175 Knob adjustable from 10-1,000 seconds
• Ideal for "winterstart" kits
Installation
1.Disconnect power.
2.Connect terminals as shown in the wiring diagram below.
3.Select the desired time delay.
4.Reapply power, check operation.
Specification
Input
Line Voltage: 18-240 VAC
Line Frequency: 50/60 HZ
Output Output Ratings:
Maximum: 1 amps
Minimum: 40 mA
Inrush: 10 amps
Time Delay: 10-1,000 seconds
Mode of Operation
When power is applied to the input, regardless of the state of the pressure switch, the load is energized and timing begins. After the timing delay is complete, the pressure switch will control the load. The control is reset by removing power during or after the time delay.
Timing Diagram
For replaces:
| Mars | Supco | ICM |
| • 32395 | • TDP68 | 175 |
