Affordable laser metal cutting machine, co2 laser marking machine with CE for hot sale
Feature Description:
1.The structure of the machine is more compact and more reasonable, the electric performance steady,
2.The type of the machine has doubly efficacy of high-speed engraving and high-speed cutting, the precision is high.
3.The import guide rail equipped with the machine runs steadily, the depth of engraving can be adjusted automatically.
4.The scrap left after engraving is only a little; The verge after cutting has no burr and does not need to polish
5.It is integrates engraving, image scanning, grade carve, cutting etc.
Technical Parameters:
Laser Power |
80W (optional) |
Laser Type |
Hermetic CO2 glass tube |
Power Supply |
AC220±10% 50HZ / AC110±10% 60HZ |
Working Area |
1200*900mm |
Max Moving Speed |
0-40000mm/min |
Worktable |
honeycomb worktable,up and down table, aluminium knife(optional) |
Locating Precision |
<0.01mm |
Min Shaping Character |
Character 3×3mm Letter:2×2mm |
Operating Temperature |
5°C-35°C |
Resolution ratio |
≤4500dpi |
Control Configuration |
DSP |
Data transfer Interface |
USB(offline) |
System Environment |
WINDOWS 2000/ WINDOWS XP/Visa/win7 |
Cooling Way |
Water Cooling and Protection System |
Graphic Format Supported |
files which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,etc.) |
Compatible Software |
CorelDraw, AutoCAD |
Cutting Thickness |
0–20mm(depends on different material) |
Color Separation |
Separation of cutting up to 256 colors |
Sloping Engraving |
Yes, slope can be designed discretionarily |
|
Cuts off the water supply the protection |
Yes |
Packing |
plywood case or according to customer’s request |
Net Weight/Gross Weight |
380/430kg |
Machine Dimension |
1980*1300*1120mm |
Package Dimension |
2100*1700*1300mm |
Optional parts |
High-grade cooling system/imported focus lens/double head/cylinder rotary attachment/irregular rotary attachment |
DX-1290 Low cost laser cut hard paper card machine for sale
can work on:
Wood,Acrylic, Glass, Coated Metals, Ceramic, Delrin, Cloth, Leather, Marble, Matte Board, Melamine, Paper, Mylar, Pressboard, Rubber, Wood Veneer, Fiberglass, Painted Metals, Tile, Plastic, Cork, Corian, Anodized Aluminum.
main parts:
1.Hi-precision gears and Linear rails improve work eficiency and precision .
2.Mirror are resistant and long life span. DSP off line system guarantee machine run fust and stable without computer for reducing cost.
3.3M synchronous belt make laser head long-term and stable operation. Brass and stainless screw fix mirror bracket and fittings more stable.
4.We can offer one or two laser heads and tool section or honey platform according your industry category and materials.
5.Funnel collects waste and exhaust fan draw away smoke for cleaning and environmental protection.
6.With automatic up and down lift table which hight is 400mm. Up-down lift can meet your need to engrave and cut different hight objects.
Detailed advantage of laser cutting machine:
1. For laser tube,we use RECI brand,very popular among customers,its lifetime is 3 times longer than common laser tubes.
2.We use stepper motor,providing enough power,ensuring high speed of machine.
3.We use Taiwan HIWIN/PMI linear rail for transmission,to ensure high precision,faster speed,lower noise,and its lifetime is 10 times longer than common rail ways.
4.we have two kinds of worktable: Aluminum knife table for hard material like wood,acrylic,helping small cutted pieces fall off; and honeycomb worktable for soft material like leather,cloth,to keep the material as flat as possible,ensuring cutting effect.
If you work on both hard and soft material,we can make the table with double use.
5.The control system is DSP, supporting offline work. There is USB interface on the panel,so it support U disk,very convenient.
6.We use Updated RD software LaserworkV8,the latest version.
7.Red dot will help position the laser,protecting operator.

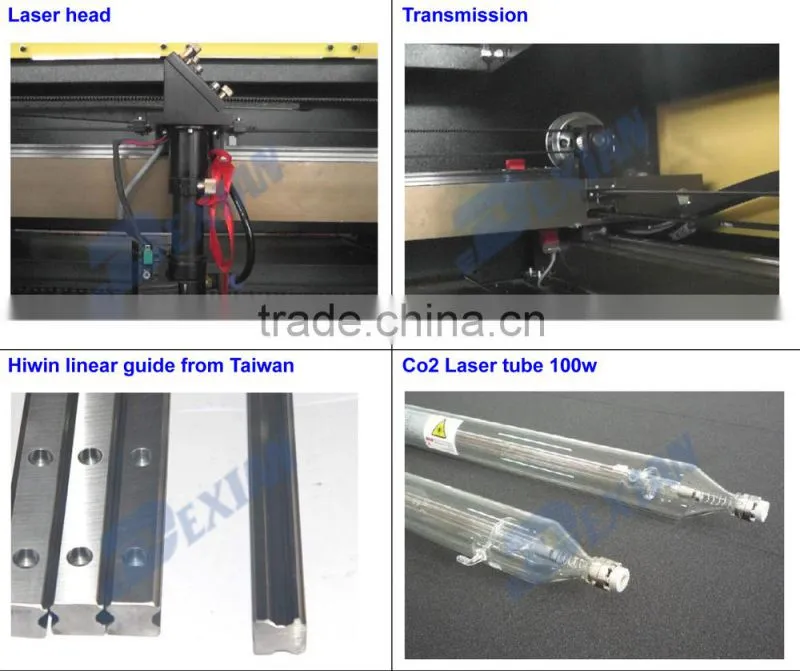

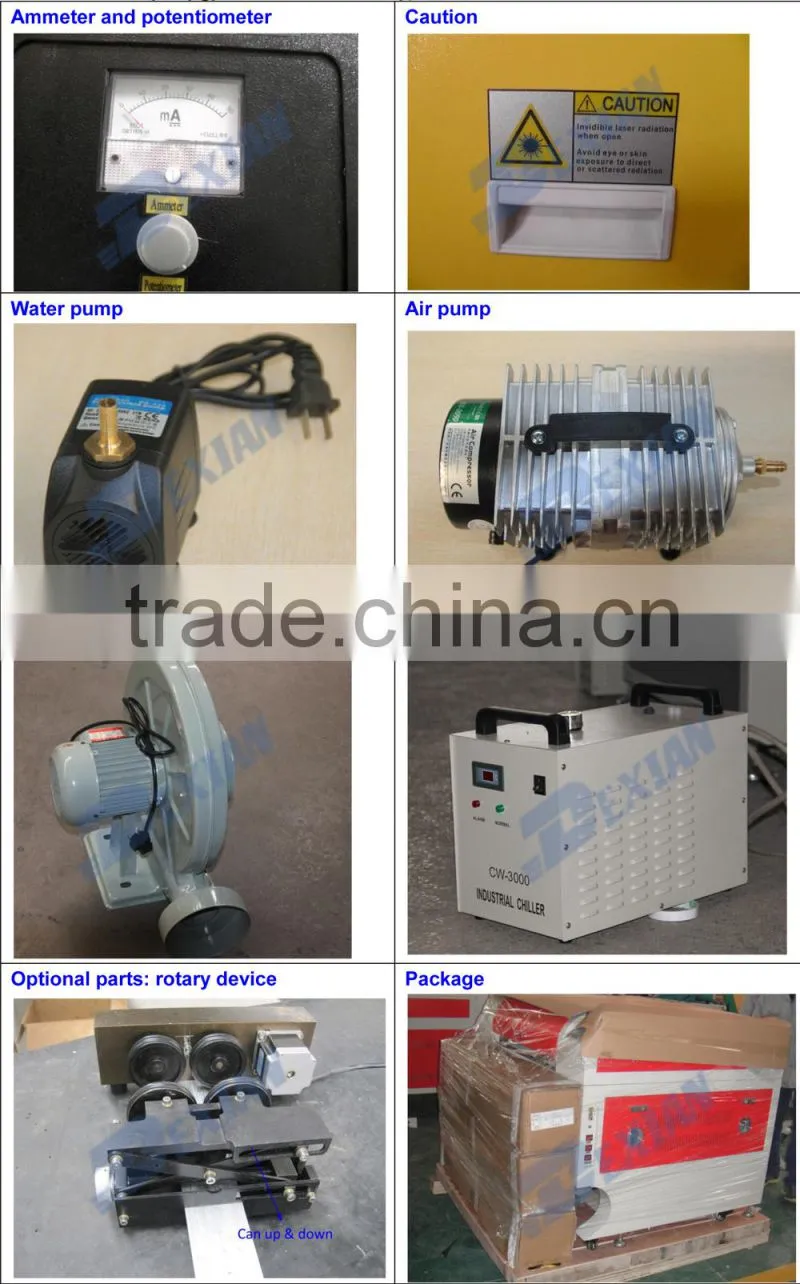

Details of laser cutting and engraving machine
|
Samples Show of laser cutting machine:
