400*600, 600*900, 1200*900mm Laser Wood Carving Machine With 60W Laser

400*600, 600*900, 1200*900mm Laser Wood Carving Machine With 60W Laser thumbnail-1
400*600, 600*900, 1200*900mm Laser Wood Carving Machine With 60W Laser thumbnail-2
400*600, 600*900, 1200*900mm Laser Wood Carving Machine With 60W Laser thumbnail-3
400*600, 600*900, 1200*900mm Laser Wood Carving Machine With 60W Laser thumbnail-4
400*600, 600*900, 1200*900mm Laser Wood Carving Machine With 60W Laser thumbnail-5
400*600, 600*900, 1200*900mm Laser Wood Carving Machine With 60W Laser photo-1
400*600, 600*900, 1200*900mm Laser Wood Carving Machine With 60W Laser photo-2
400*600, 600*900, 1200*900mm Laser Wood Carving Machine With 60W Laser photo-3
400*600, 600*900, 1200*900mm Laser Wood Carving Machine With 60W Laser photo-4
400*600, 600*900, 1200*900mm Laser Wood Carving Machine With 60W Laser photo-5
US$ 609 - 3,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Other, CO2, hermetic co2 glass tube
Engraving Area:
1200*900mm
Contact Supplier Request Quote Chat Now
Jinan Dexian Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Shanghai Port Tianjin Port etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Laser Type Other, CO2, hermetic co2 glass tube
Engraving Area 1200*900mm
Engraving Speed 60000mm/min
CNC or Not Yes
Cooling Mode Water Cooling
Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin Shandong, China
Brand Name DeXian
Model Number DX1290
Dimension(L*W*H) 1980x1550x1080mm
Certification CCC, CE, GS, ISO, SGS, Other, CCC, CE, GS, ISO, SGS, CCPIT
After-sales Service Provided Engineers available to service machinery overseas

400*600, 600*900, 1200*900mm laser wood carving machine with 60W laser

mini laser cutting machine with low price and good quality

400*600, 600*900, 1200*900mm laser wood carving machine with 60W laser 400*600, 600*900, 1200*900mm laser wood carving machine with 60W laser
400*600, 600*900, 1200*900mm laser wood carving machine with 60W laser 400*600, 600*900, 1200*900mm laser wood carving machine with 60W laser
400*600, 600*900, 1200*900mm laser wood carving machine with 60W laser 400*600, 600*900, 1200*900mm laser wood carving machine with 60W laser



Features:

1.New design, High quality with competitive price.

2.Taiwan HIWIN linear guide with long lifetime. Lifetime is 10 times longer than other guide rail.

3.Red light positioning, help find the work point, protect workers and improve work efficiency.

4.Water break protection, when water not circulate, machine will automatically break the electronic to protect the laser tube.



Technical Parameters:

Laser Power

80W (100W is optional)

Laser Type

Hermetic CO2 glass tube

Power Supply

AC220±10%  50HZ / AC110±10%  60HZ

Working Area

1200*900mm

Max Moving Speed

0-25000mm/min

Worktable

honeycomb worktable/aluminium knife/steel nail(optional)

Locating Precision

<0.01mm

Min Shaping Character

Character 3×3mm  Letter:2×2mm

Operating Temperature

5°C-35°C

Resolution ratio

≤4500dpi

Control Configuration

DSP

Data transfer Interface

USB2.0(offline)

System Environment

WINDOWS 2000/ WINDOWS XP/Visa/win7

Cooling Way

Water Cooling and Protection System

Graphic Format Supported

files which CorelDraw,Photoshop, AutoCAD can identify

(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,etc.)

Compatible Software

CorelDraw, AutoCAD

Cutting Thickness

0–20mm(depends on different material)

Color Separation

Separation of cutting up to 256 colors

Sloping Engraving

Yes,slope can be designed discretionarily

Water break protection

Yes

Packing

plywood case or according to customer’s request

Net Weight/Gross Weight

380/430kg

Machine Dimension

1980*1300*1120mm

Package Dimension

2100*1700*1300mm

Optional parts

High-grade cooling system/imported focus lens/ double head/cylinder

 PS:All the working area and specifications can be customized according to your requests.

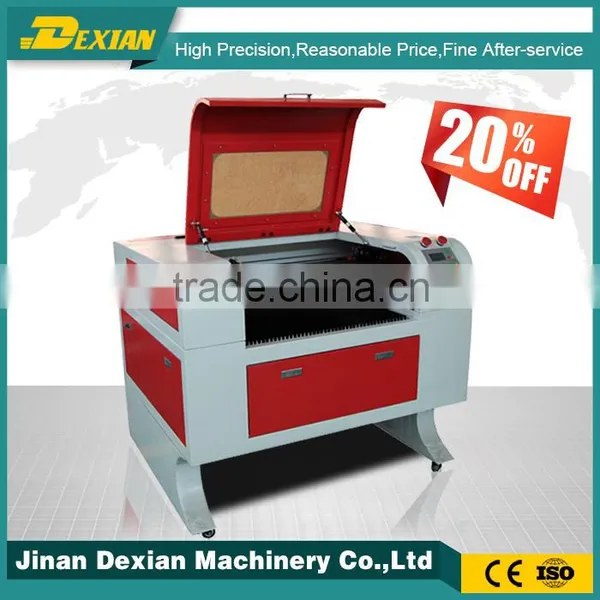

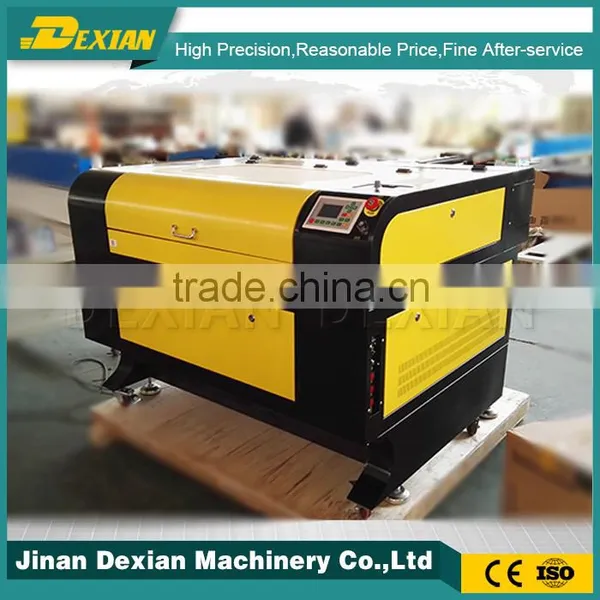

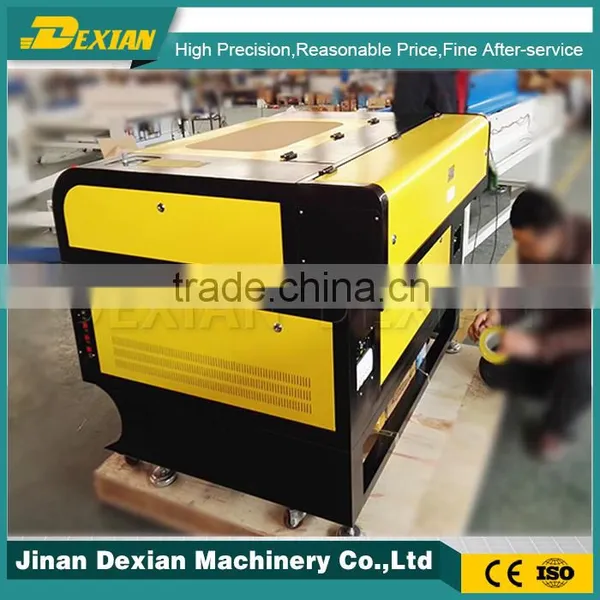

Details of laser cutting and engraving machine:

400*600, 600*900, 1200*900mm laser wood carving machine with 60W laser 400*600, 600*900, 1200*900mm laser wood carving machine with 60W laser



Applications:

     Applicable Industries

Model industry (construction models,aviation and navigation models and wooden toys),advertising,decoration,arts and crafts, electronics, and electric appliances,etc.

     Applicable Materials

Non-materials such as acrylic, wood planks (light planks,paulownia wood), bamboo ware.double- color sheets, paper, leather,shells, coconut shells,ox horns,resin animal grease, ABS boards,lamp shade,ect.



Samples:

400*600, 600*900, 1200*900mm laser wood carving machine with 60W laser

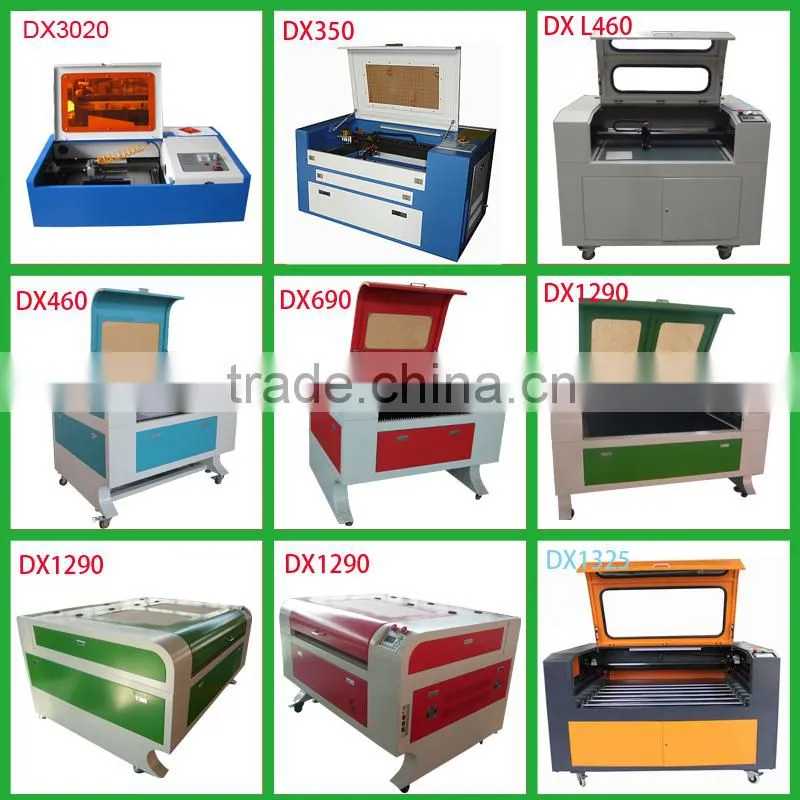

Other models:

Model Effective working area Laser power
DX3020 300x200mm 40w
DX350 300x500mm 50w
DX460 400x600mm 60w 80w
DX690 600x900mm 60w 80w 100w
DX1290 1200x900mm 60w 80w 100w 130w
DX1325 1300x2500mm 80w 100w 130w 150w

400*600, 600*900, 1200*900mm laser wood carving machine with 60W laser
