co2 laser engraving and cutting machine , printing laser machine
- 500 Set / Sets per Month
- ANY PORT
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Laser Type: | CO2 | Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plywood, Rubber, Stone, Wood |
Cutting Thickness: | letter 0.8mm, Chinese 2mm | Cutting Area: | 600*900mm | Cutting Speed: | 100-300mm/s |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | RD CAM |
Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | Shandong, China | Brand Name: | DX |
Model Number: | DX-690 | Certification: | CE, ISO, UL | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

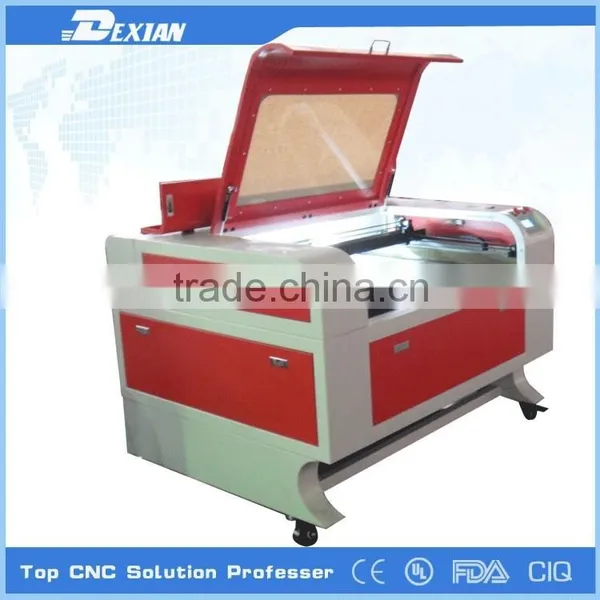

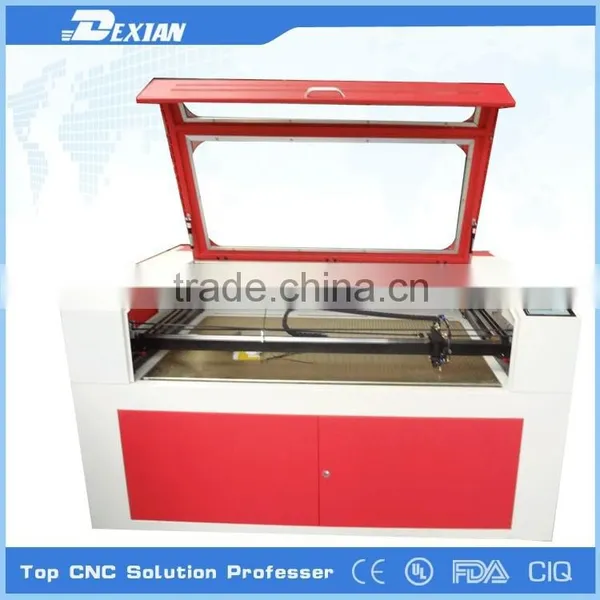

co2 laser engraving and cutting machine , printing laser machine
Description:
(1)The software can support AutoCAD/CorelDRAW/CAD/CDR and other graphical software
(2)The USB interface can support heat play & pluy
(3)Quick data transitting
(4)Chinese&English edition liquid display can make it easy
Technical Parameters:
Laser power : | 60 W (80w for option) |
Laser tube life Span | 1500 working hours for cutting 2500 working hours for engraving |
Applicable Materials | Acrylic,Glass,crystal,wood,leather,cloth,rubber,marble,ceramic,etc. |
Working area: | 600*900 mm |
Max moving speed: | 1500mm/s |
Laser energy control: | 1-100 set by hand or software |
Worktable: | Electric Up and down table. Up to 25 CM |
Locating precision: | <0.01 mm |
Min shaping character: | Character: 3*3 mm,; letter: 1*1 mm |
Operating temperature: | 5°C-35°C |
Resolution ratio: | <4500 dpi |
Laser type: | Hermetic CO2 glass tube |
Power supply: | AC220±10%50 HZ/AC110±10%50 HZ |
Control configuration: | DSP. |
Data transfer interface: | USB (offline). |
USB Ports | 2 |
System environment: | WINDOWS 2000/WINDOWS XP/MAC/Vista |
Cooling way: | Water cooling and protection system |
Graphic format supported: | The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG, DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX). |
USER MENU | Full English. |
Package Inclusion | Software,VIDEO USER MENU CD,Air pump gun,Power cables, USB cables, Water tank,Water Pipe,Smoke Vent-pipe,Air Blow Pipe ,exhaust fan,Tools bag |
Display screen | LCD(SIZE 70*40 mm) |
Protection System | Yes |
Option parts | high-grade cooling system/double-head/cylinder rotary Jig/ irregular rotary Jig/ honeycomb table/ knifes table |
Guarantee | 1 year ,damageable spare parts(like laser tube, mirrors) 3 months |
Dimensions | 1480*1000*1080mm |
Dimensions(package) | 1600*1140*1300 mm |
Net Weight | 260KGs |
Gross Weight | 306KGs |
Recommended Ship way | Air/sea |
DX 6090 CE approval wood laser cut christmas ornament supplies wholesale can work on:
Wood,Acrylic, Glass, Coated Metals, Ceramic, Delrin, Cloth, Leather, Marble, Matte Board, Melamine, Paper, Mylar, Pressboard, Rubber, Wood Veneer, Fiberglass, Painted Metals, Tile, Plastic, Cork, Corian, Anodized Aluminum.
1.Hi-precision gears and Linear rails improve work eficiency and precision .
2.Mirror are resistant and long life span. DSP off line system guarantee machine run fust and stable without computer for reducing cost.
3.3M synchronous belt make laser head long-term and stable operation. Brass and stainless screw fix mirror bracket and fittings more stable.
4.We can offer one or two laser heads and tool section or honey platform according your industry category and materials.
5.Funnel collects waste and exhaust fan draw away smoke for cleaning and environmental protection.
6.With automatic up and down lift table which hight is 400mm. Up-down lift can meet your need to engrave and cut different hight objects.

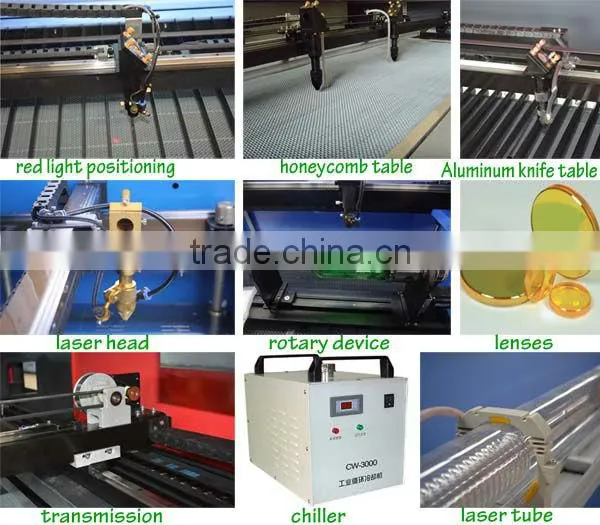

Detailed advantage of laser cutting machine:
1. For laser tube,we use RECI brand,very popular among customers,its lifetime is 3 times longer than common laser tubes.
2.We use stepper motor,providing enough power,ensuring high speed of machine.
3.We use Taiwan HIWIN/PMI linear rail for transmission,to ensure high precision,faster speed,lower noise,and its lifetime is 10 times longer than common rail ways.
4.we have two kinds of worktable: Aluminum knife table for hard material like wood,acrylic,helping small cutted pieces fall off; and honeycomb worktable for soft material like leather,cloth,to keep the material as flat as possible,ensuring cutting effect.
If you work on both hard and soft material,we can make the table with double use.
5.The control system is DSP, supporting offline work. There is USB interface on the panel,so it support U disk,very convenient.
6.We use Updated RD software LaserworkV8,the latest version.
7.Red dot will help position the laser,protecting operator.
<img
3) Samples Show of laser cutting machine:

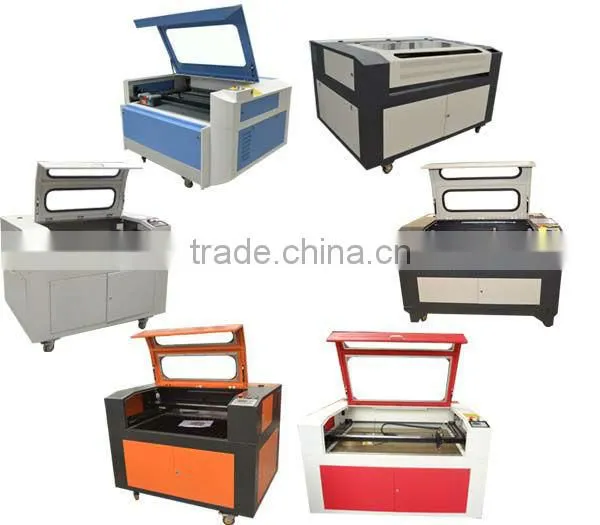

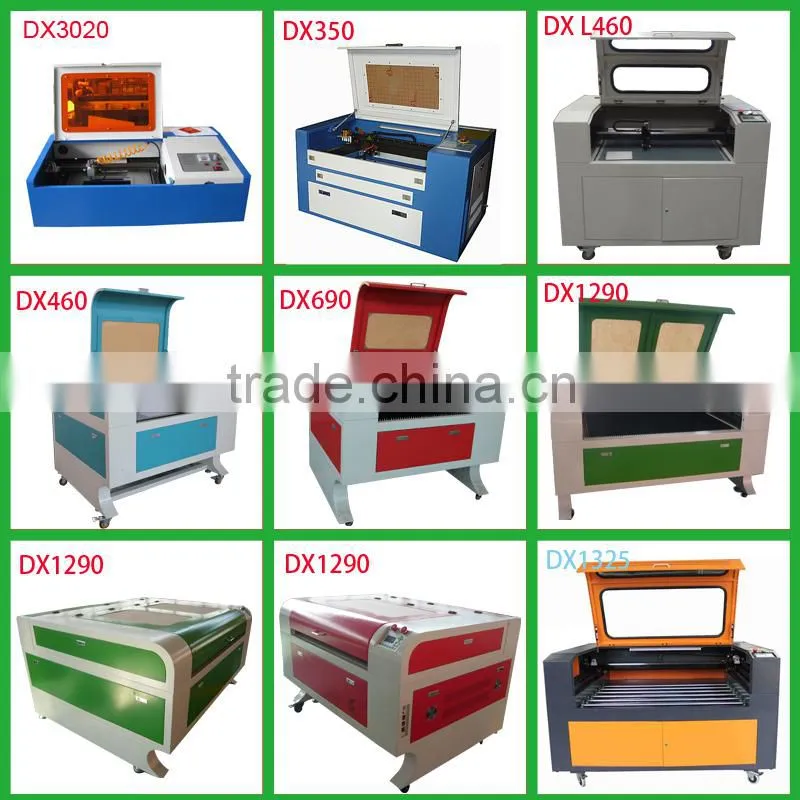

More machines for choice
How about your service & warranty?
1,before-sale:we will try to know your requests about what work you will do
and help you choose the most suitable machine specification & give you the best solution.
2.during production: we will send photos of machines during production. so customers can know more details
about the procession of making their machines. and give them suggestions.
3.before shipping:we will confirm the specification of order to avoid the mistake and we will test & adjust the machine until it has the best performence.
4.after shipping: we will give you the tracking information of the sea vessel
so customers can know when it will arrive at your port and make enough preparation.
5.after arrival: we will confirm with you if machine is in good condition. and see if any spare parts were broken during sea shipping then help to solve the insurance
6.about training: there are some manual and video about how to install & use machine , if you have any questions
you can contact me any time, then i arrange our professional technicians to help you by video, pictures,call or email.
7. about warranty: we offer 2 years warranty for whole machine and half year warranty for spindle.
if any parts of our machine is broken. we will replace it for free.
8. service in life-time: we hope our machine can bring perfect performance in life-time, of course no matter how many years passed, you always can contact me, we can give you any technical support in the future life-time.
Dear Friends:
Kindly Note:
if you do not know what model of machine is suitable for you ?please tell me:
1, what is your ing area for your material?
2, What material you want to engrave on or cut?
3, What is the Max.cutting thickness?
then i can help you choose the most suitable machine for you !
Dear Friends :do you want to know more details & prices?
OK ,please contact me.
Welcome to contact me !
Jinan Dexian Machinery Co.Ltd.
Name: Demi
Mobile: 0086-18615679775
Whatsapp:18615679775
Wechat:18615979775
Trademanager: cn1000367525
Skype: demi-dx
Web:
We are looking for agents from all over the world, welcome to be one of us!!
