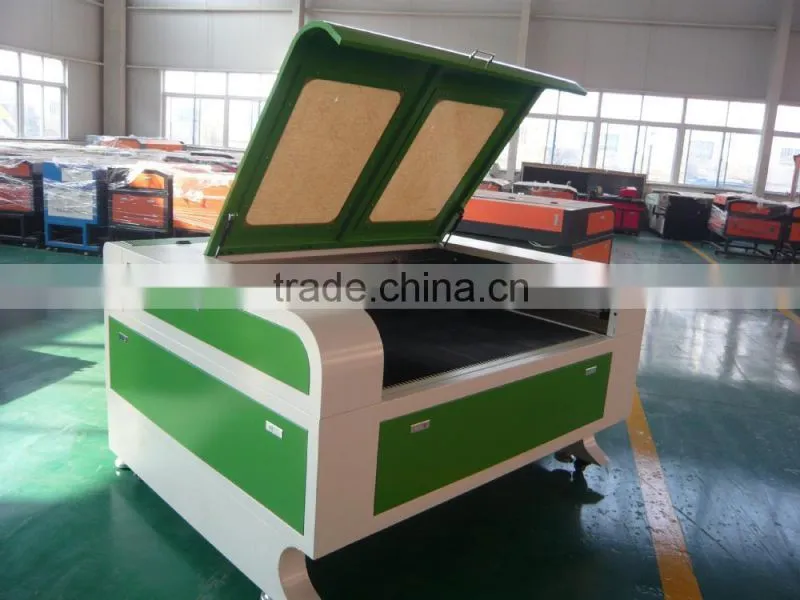

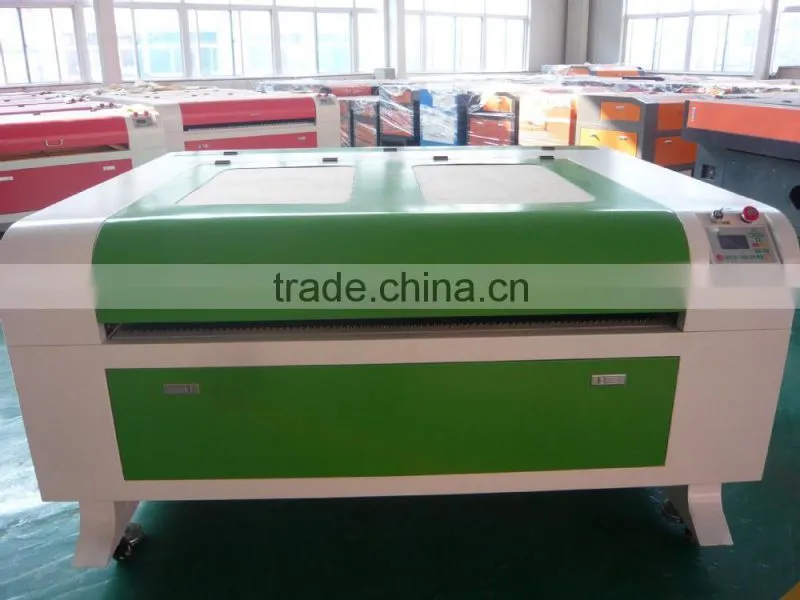

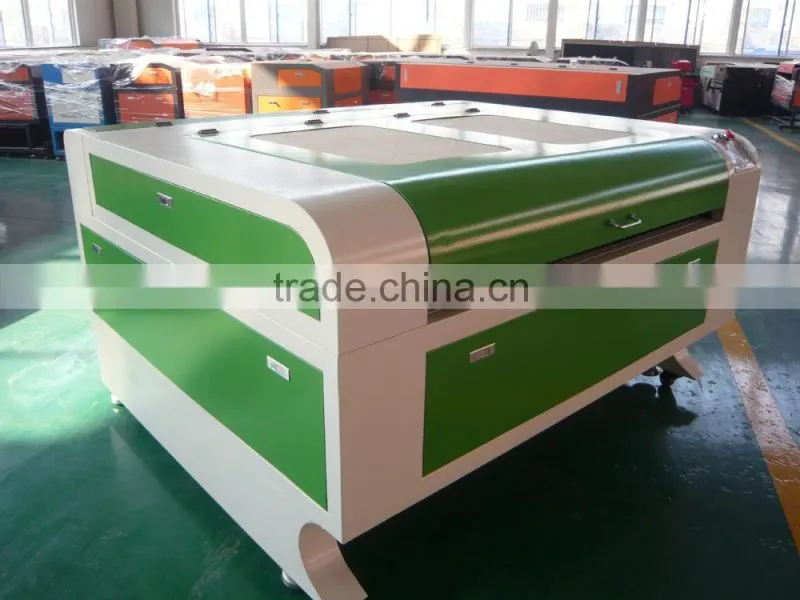

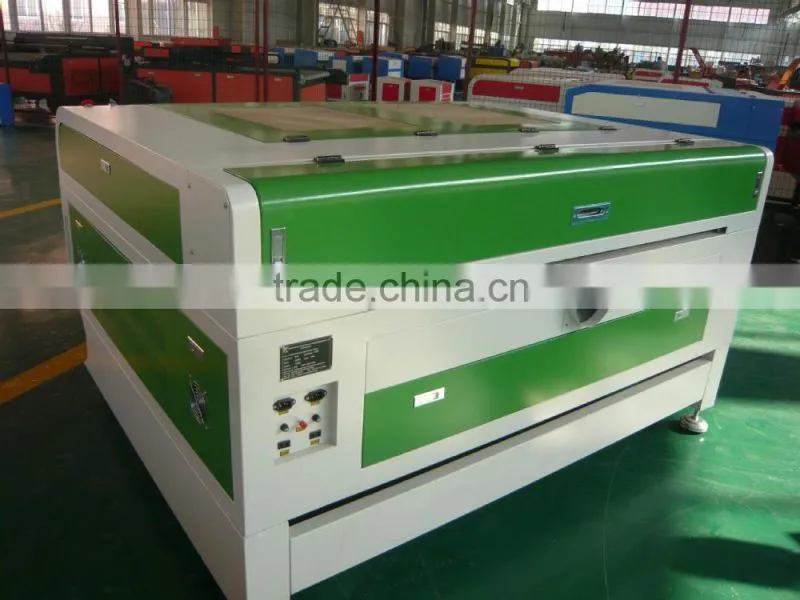

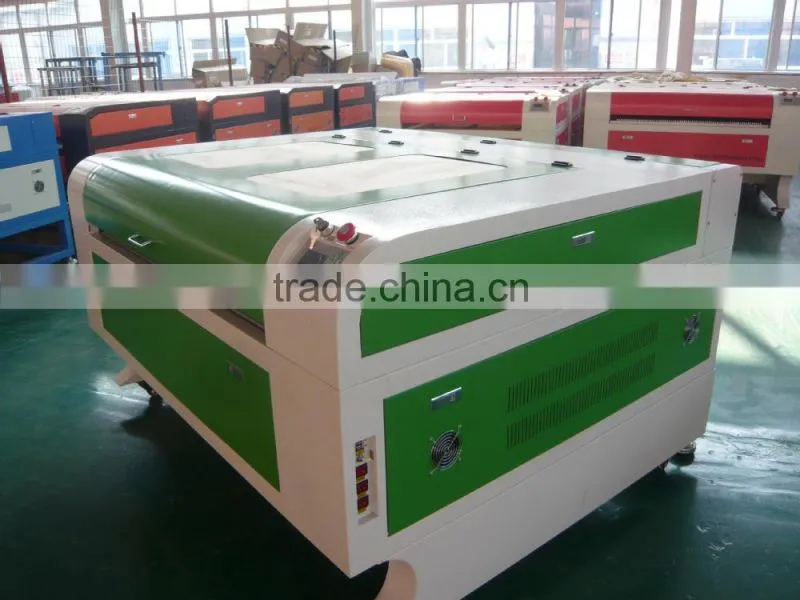

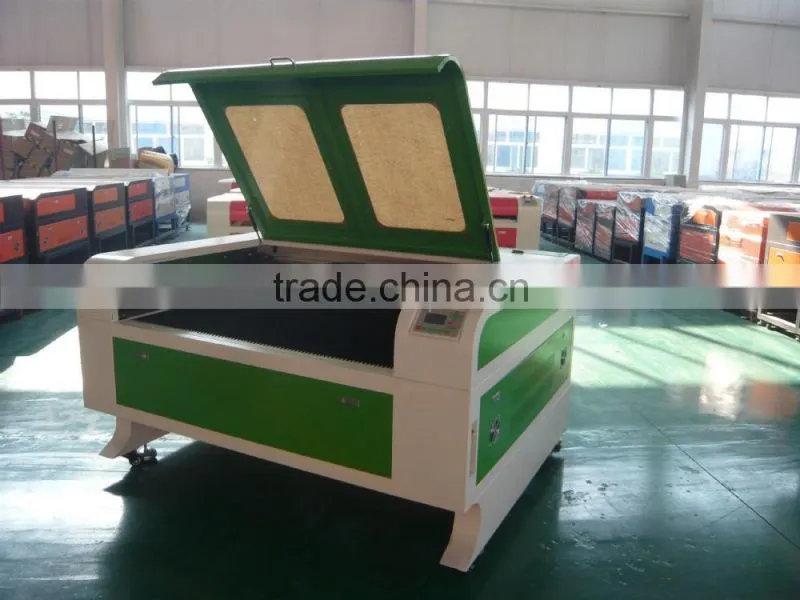

DX1290 Dexian laser leather cutting machine for shoe

Laser Power

80W (100W is optional)

Laser Type

Hermetic CO2 glass tube

Power Supply

AC220±10%  50HZ / AC110±10%  60HZ

Working Area

1200*900mm

Max Moving Speed

0-25000mm/min

Worktable

honeycomb worktable/aluminium knife/steel nail(optional)

Locating Precision

<0.01mm

Min Shaping Character

Character 3×3mm  Letter:2×2mm

Operating Temperature

5°C-35°C

Resolution ratio

≤4500dpi

Control Configuration

DSP

Data transfer Interface

USB2.0(offline)

System Environment

WINDOWS 2000/ WINDOWS XP/Visa/win7

Cooling Way

Water Cooling and Protection System

Graphic Format Supported

files which CorelDraw,Photoshop, AutoCAD can identify

(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,etc.)

Compatible Software

CorelDraw, AutoCAD

Cutting Thickness

0–20mm(depends on different material)

Color Separation

Separation of cutting up to 256 colors

Sloping Engraving

Yes,slope can be designed discretionarily

Water break protection

Yes

Packing

plywood case or according to customer’s request

Net Weight/Gross Weight

380/430kg

Machine Dimension

1980*1300*1120mm

Package Dimension

2100*1700*1300mm

Optional parts

High-grade cooling system/imported focus lens/ double head/cylinder r
