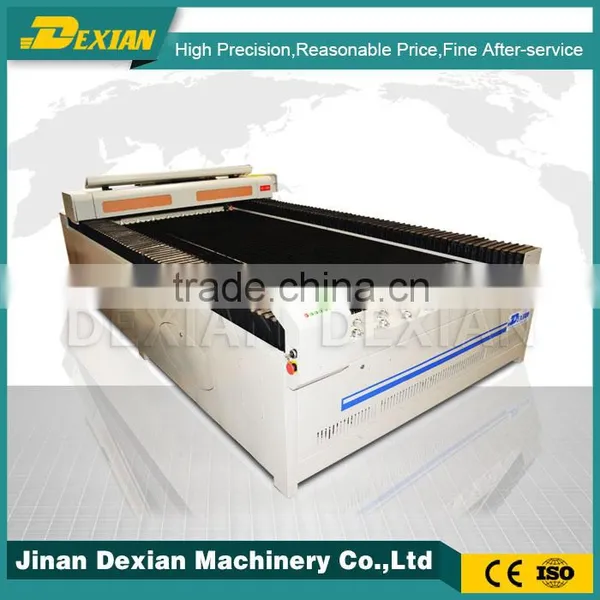

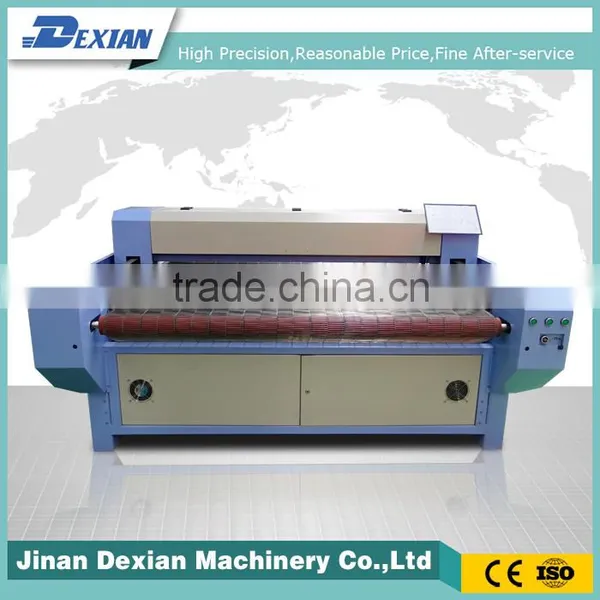

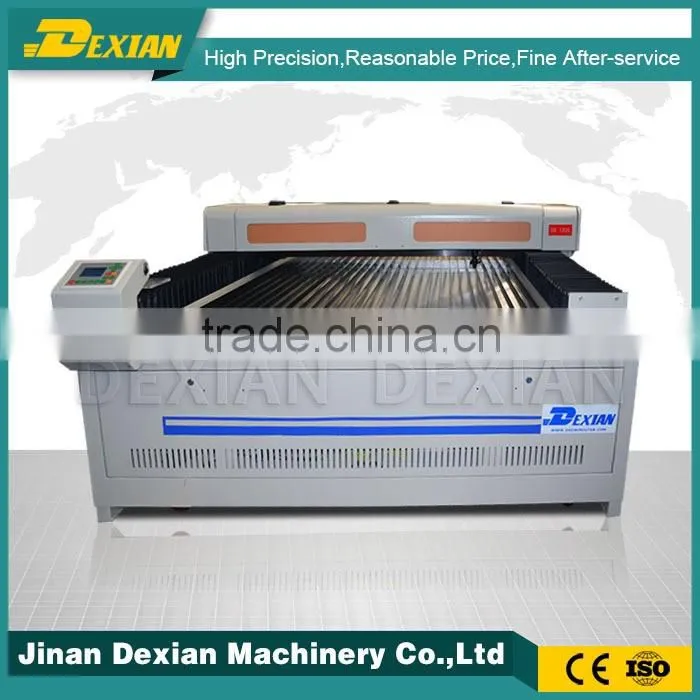

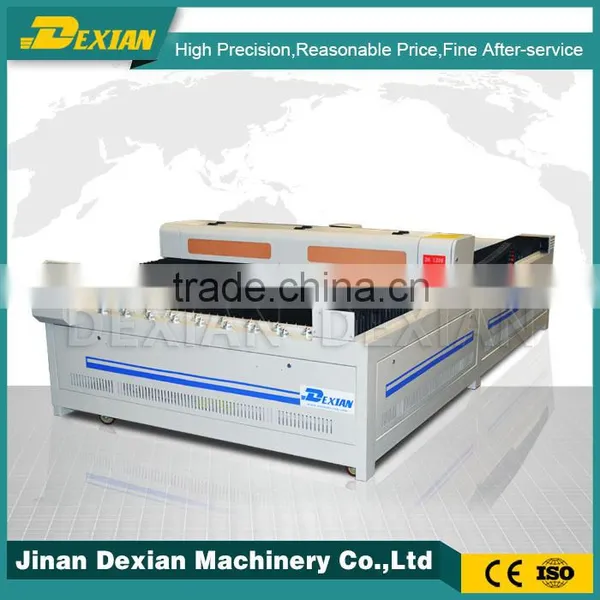

Cheap 3d laser crystal engraving machine for glass and crystal
Features
1.New design, High quality with competitive price.
2.Taiwan HIWIN linear guide with long lifetime. Lifetime is 10 times longer than other guide rail.
3.Red light positioning, help find the work point, protect workers and improve work efficiency.
4.Water break protection, when water not circulate, machine will automatically break the electronic to protect the laser tube.
Applicable Industries
Model industry (construction models,aviation and navigation models and wooden toys),advertising,decoration,arts and crafts, electronics, and electric appliances,etc.
Applicable Materials
Non-materials such as acrylic, wood planks (light planks,paulownia wood), bamboo ware.double- color sheets, paper, leather,shells, coconut shells,ox horns,resin animal grease, ABS boards,lamp shade,ect.
Technical Parameters
Laser Power |
80W (100W is optional) |
Laser Type |
Hermetic CO2 glass tube |
Power Supply |
AC220±10% 50HZ / AC110±10% 60HZ |
Working Area |
1200*900mm |
Max Moving Speed |
0-25000mm/min |
Worktable |
honeycomb worktable/aluminium knife/steel nail(optional) |
Locating Precision |
<0.01mm |
Min Shaping Character |
Character 3×3mm Letter:2×2mm |
Operating Temperature |
5°C-35°C |
Resolution ratio |
≤4500dpi |
Control Configuration |
DSP |
Data transfer Interface |
USB2.0(offline) |
System Environment |
WINDOWS 2000/ WINDOWS XP/Visa/win7 |
Cooling Way |
Water Cooling and Protection System |
Graphic Format Supported |
files which CorelDraw,Photoshop, AutoCAD can identify (BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,etc.) |
Compatible Software |
CorelDraw, AutoCAD |
Cutting Thickness |
0–20mm(depends on different material) |
Color Separation |
Separation of cutting up to 256 colors |
Sloping Engraving |
Yes,slope can be designed discretionarily |
Water break protection |
Yes |
Packing |
plywood case or according to customer’s request |
Net Weight/Gross Weight |
380/430kg |
Machine Dimension |
1980*1300*1120mm |
Package Dimension |
2100*1700*1300mm |
Optional parts |
High-grade cooling system/imported focus lens/ double head/cylinder r |

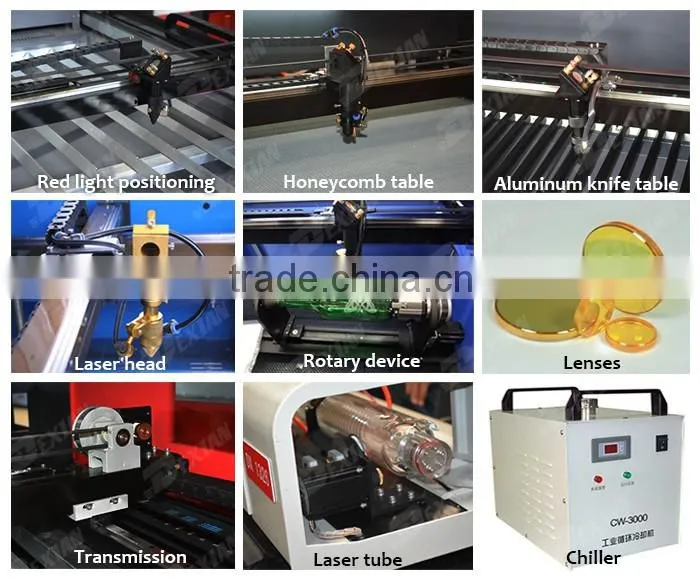

Details of laser cutting and engraving machine
|
|
Crystal and Glass Samples
Our factory:
Jinan Dexian Machinery co., ltd
Welcome to contact with us!
Looking for agents and wholesale from all over the world!
Any questions,please feel free to contact me !
-----------------------------------------------------------------
Jinan Dexian Machinery Co.,Ltd
Jenny Yang
Phone:0086-18615679773 Skype:dexian010
Wechat:18615679773 QQ:18615679773
