DX 320 350 460 690 1060 1290 1612 1325 portable laser cutting machine, laser cutting machine for sale

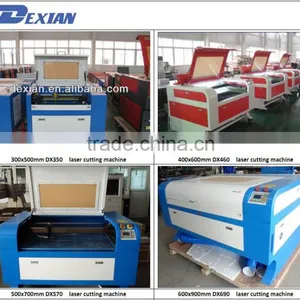

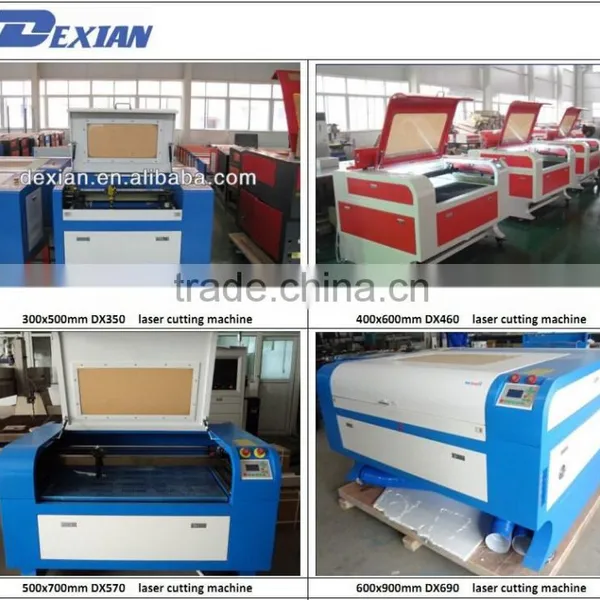

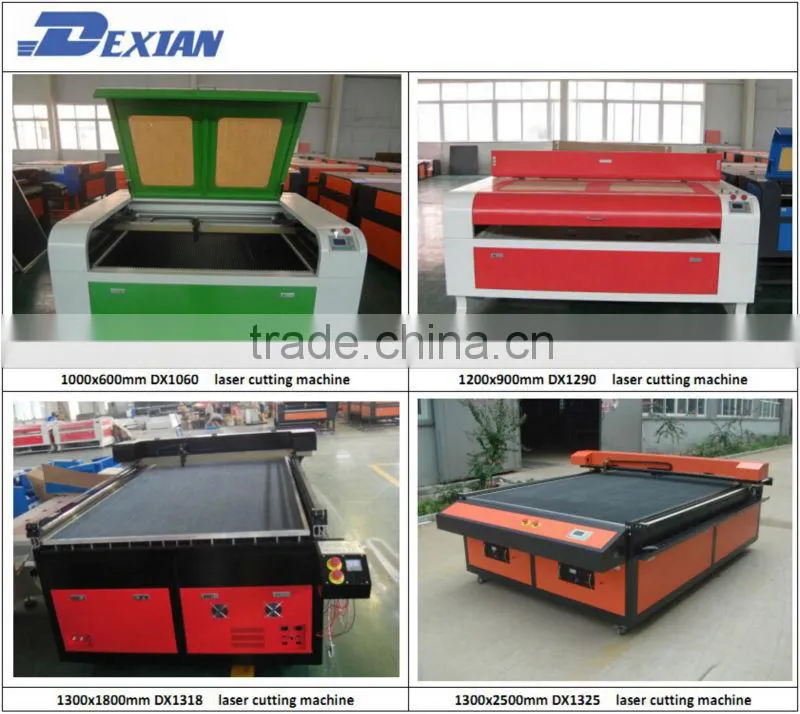

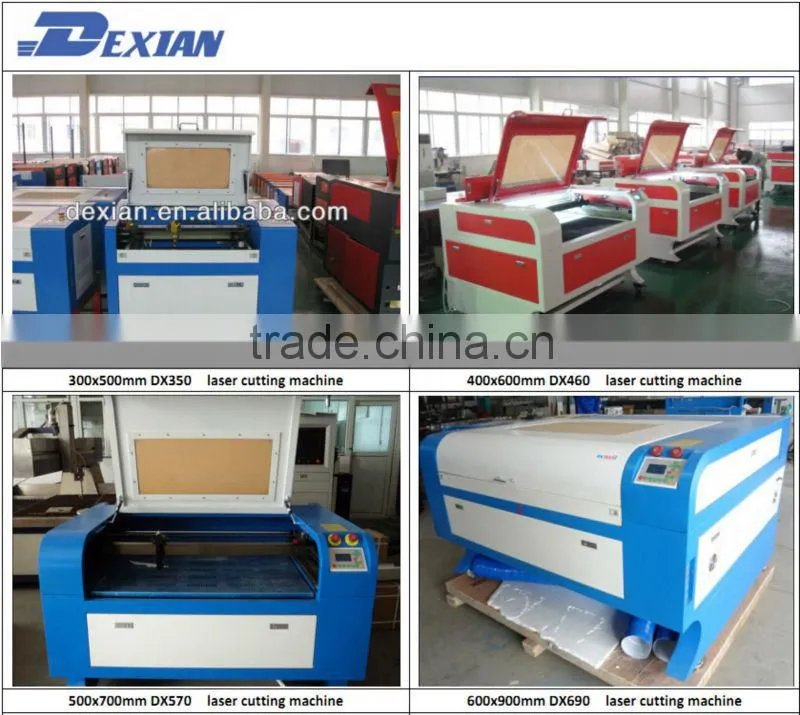

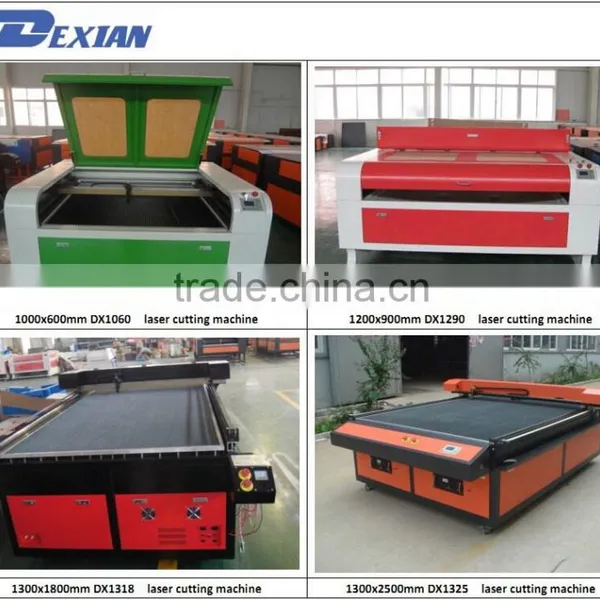

A. laser cutting machine different models you can choose
| Model | Effective working area | Laser power |
| DX3020 | 300x200mm | 40w |
| DX350 | 300x500mm | 50w |
| DX460 | 400x600mm | 60w 80w |
| DX690 | 600x900mm | 60w 80w 100w |
| DX1290 | 1200x900mm | 60w 80w 100w 130w |
| DX1325 | 1300x2500mm | 80w 100w 130w 150w |
B. What material laser cutting machine can cut/engrave?
Materials |
Engrave |
Cut |
Wood/ MDF/ Cork |
Yes |
Yes |
Acrylic/ Crystal/Plastic |
Yes |
Yes |
Glass |
Yes |
No |
Acetate/ Delrin |
Yes |
Yes |
Rubber/Stamp/ Silicon |
Yes |
Yes |
Paper/Card/ Pressboard |
Yes |
Yes |
Fiberglass / Mylar |
Yes |
Yes |
Leather/ Cloth |
Yes |
Yes |
Fabric/Cotton |
Yes |
Yes |
Silk/Textile |
Yes |
Yes |
Marble/Granite/Stone |
Yes |
No |
Ceramic/ Tile |
Yes |
No |
C. Can you show your laser cutting machine detailed info.
1) Technical Specifications of Co2 laser cutting machine:
| model | DX-350 / DX-460 / DX-570 / DX-690 / DX-1060 / DX-1290 laser cutting machine |
| Working area | 300*500mm / 400*600mm / 500*700mm / 600*900mm / 1000*600mm / 1200*900mm |
| Laser Power | 50W / 60W / 80W / 100W ( optional ) |
| Laser Type | Hermetic CO2 glass tube |
| Power Supply | AC220±10% 50 HZ / AC110±10% 50 HZ |
| Max Moving Speed | 1500mm/s |
| Locating Precision | <0.01mm |
| Min Shaping Character | Character:3x3mm, Letter:2x2mm |
| Operating Temperature | 5 oC -35 oC |
| Resolution ratio | ≤4500dpi |
| Control Configuration | DSP |
| Data Transfer Interface | USB(offline) |
| Worktable | honey comb worktable/up and down/aluminium knife/ steel nail (optional) |
| System Environment | WINDOWS 2000/ WINDOWS XP |
| Cooling Way | Water Cooling and Protection System |
| Graphic Format Supported | files which CorelDraw, Photoshop, AutoCAD can identify |
| Compatible Software | CorelDraw, Photoshop, AutoCAD |
| Cutting Thickness | 025mm/30mm(depends on different material) |
| Color Separation | Separation of cutting up to 256 colors |
| Sloping Engraving | Yes, slope can be designed discretionarily |
| Cuts off the water supply the protection | Yes |
| Packing | plywood case |
2) Detailed advantage of laser cutting machine:
1. For laser tube,we use RECI brand,very popular among customers,its lifetime is 3 times longer than common laser tubes.
2.We use stepper motor,providing enough power,ensuring high speed of machine.
3.We use Taiwan HIWIN/PMI linear rail for transmission,to ensure high precision,faster speed,lower noise,and its lifetime is 10 times longer than common rail ways.
4.we have two kinds of worktable: Aluminum knife table for hard material like wood,acrylic,helping small cutted pieces fall off; and honeycomb worktable for soft material like leather,cloth,to keep the material as flat as possible,ensuring cutting effect.
If you work on both hard and soft material,we can make the table with double use.
5.The control system is DSP, supporting offline work. There is USB interface on the panel,so it support U disk,very convenient.
6.We use Updated RD software LaserworkV8,the latest version.
7.Red dot will help position the laser,protecting operator.
<img
3) Samples Show of laser cutting machine:
D. How about your service & warranty?
1,before-sale:we will try to know your requests about what work you will do
and help you choose the most suitable machine specification & give you the best solution.
2.during production: we will send photos of machines during production. so customers can know more details
about the procession of making their machines. and give them suggestions.
3.before shipping:we will confirm the specification of order to avoid the mistake and we will test & adjust the machine until it has the best performence.
4.after shipping: we will give you the tracking information of the sea vessel
so customers can know when it will arrive at your port and make enough preparation.
5.after arrival: we will confirm with you if machine is in good condition. and see if any spare parts were broken during sea shipping then help to solve the insurance
6.about training: there are some manual and video about how to install & use machine , if you have any questions
you can contact me any time, then i arrange our professional technicians to help you by video, pictures,call or email.
7. about warranty: we offer 2 years warranty for whole machine and half year warranty for spindle.
if any parts of our machine is broken. we will replace it for free.
8. service in life-time: we hope our machine can bring perfect performance in life-time, of course no matter how many years passed, you always can contact me, we can give you any technical support in the future life-time.
