Small Electrical Connectors KDG126 5.0mm 5.08mm Pitch 300V 12A

FOB Price

Negotiable / Unit

1000 Units(Min. Order)

Port Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	XIONGSHI
Model Number	KDG126	Number of Contacts	11 - 20
Conductor Size	11 - 20 AWG	Type	Other, PCB, printed circuit board

Product Description

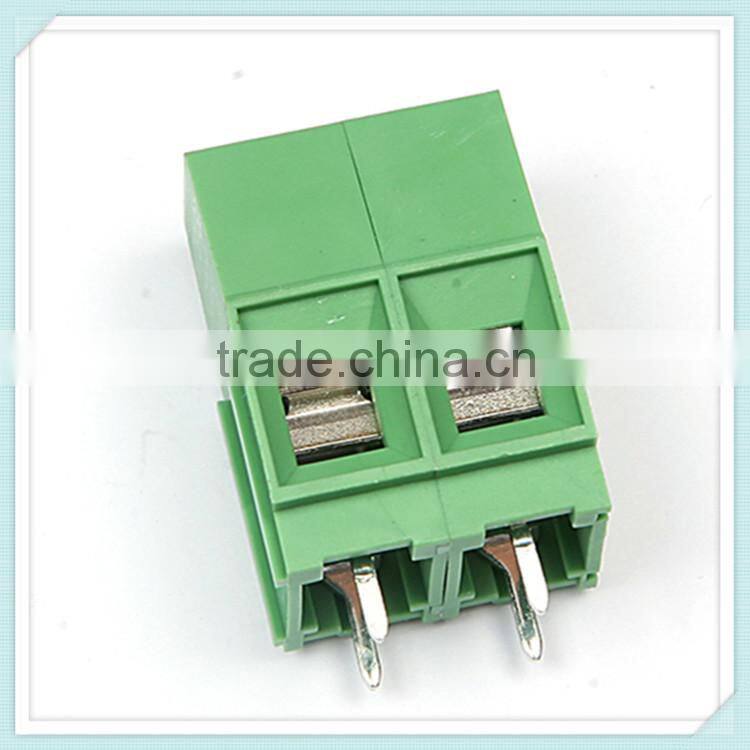

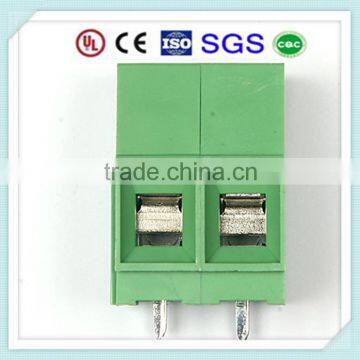

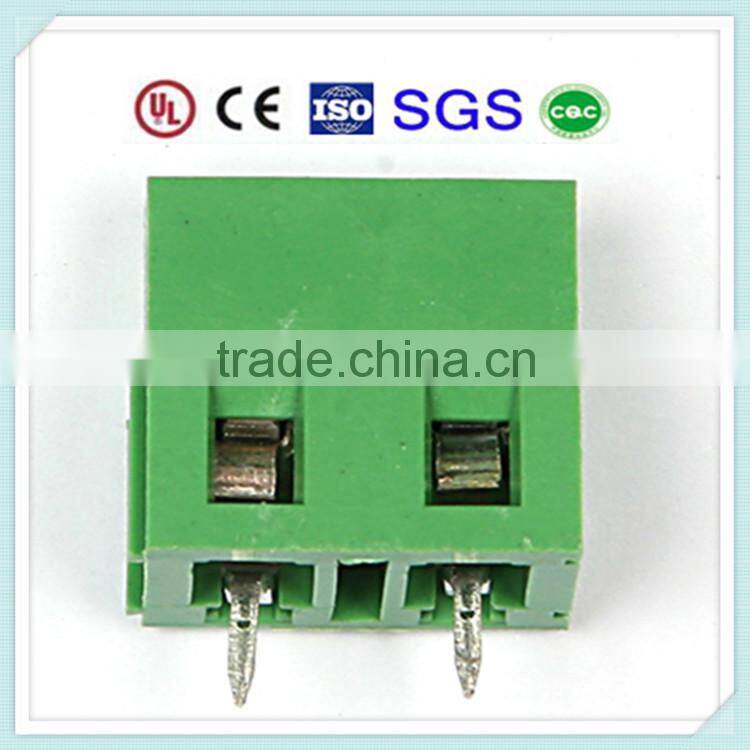

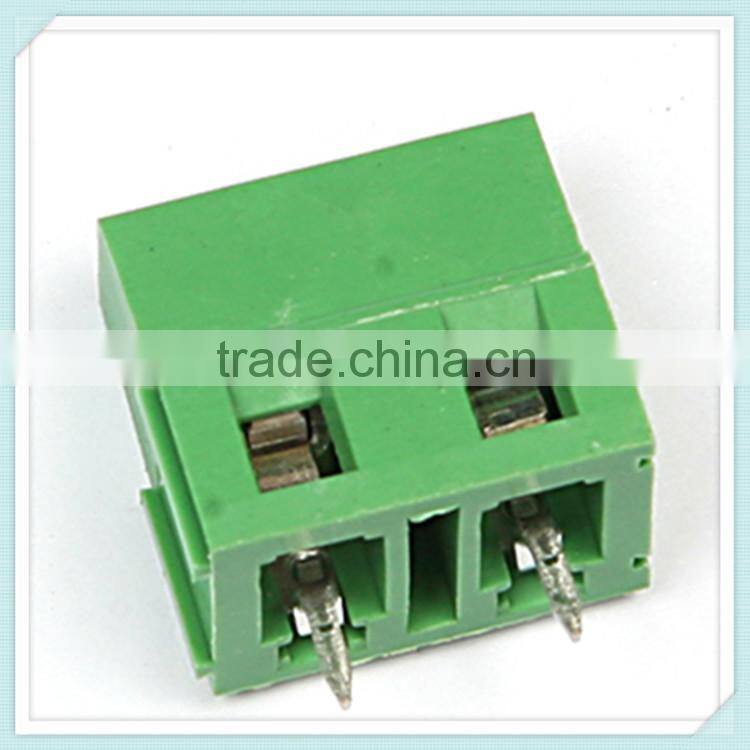

5.0mm 5.08mm Pitch 300V 12A PCB Mount 2 Pin Terminal Block Connector KDG126

with UL, CE, ISO, SGS,CQC Approved

Product Description

Character

1,Pitch:5.0mm/5.08mm

2,Terminal number:2P-24P

Material
1,Screws: M4 steel Ni plated
2,Pin header: Brass, Tin plated

3,Housing: Nylon

Electrical
1,Rated voltage: 300V
2,Rated current: 12A
3,Wire range: 24-12AWG
Mechanical
Temp. Range: -40ºC to +105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.3Nm (3.6lb.in)
Strip length: 6-7mm

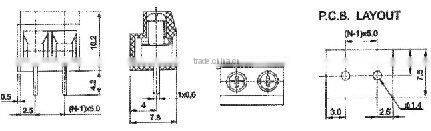

5.0mm 5.08mm Pitch 300V 12A PCB Mount 2 Pin Terminal Block Connector KDG126 Drawing:

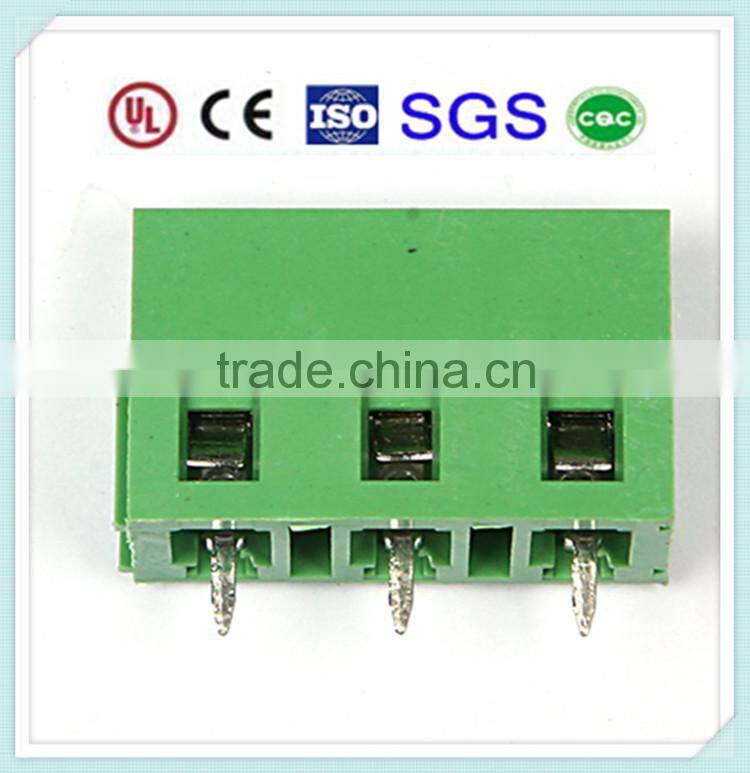

5.0mm 5.08mm Pitch 300V 12A PCB Mount 3 Pin Terminal Block Connector KDG126

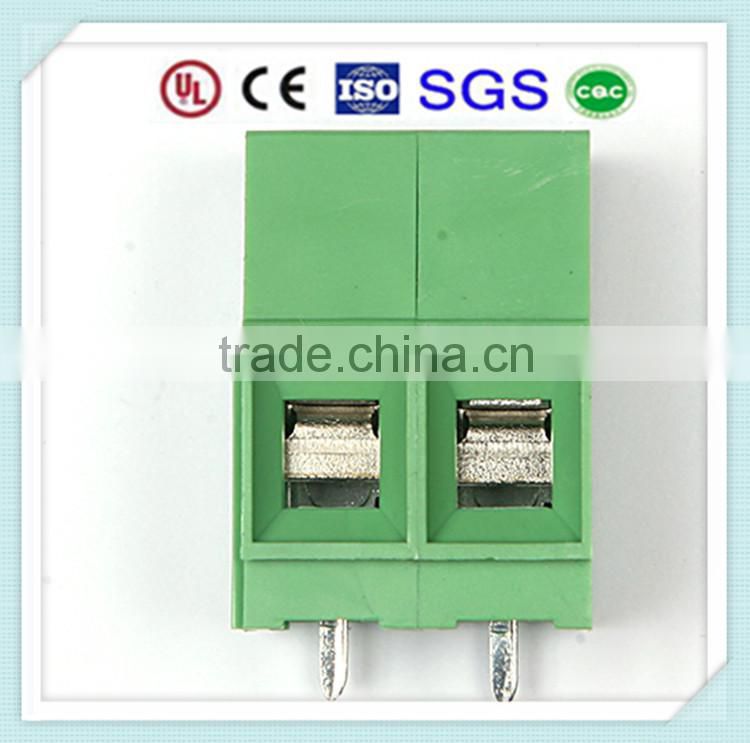

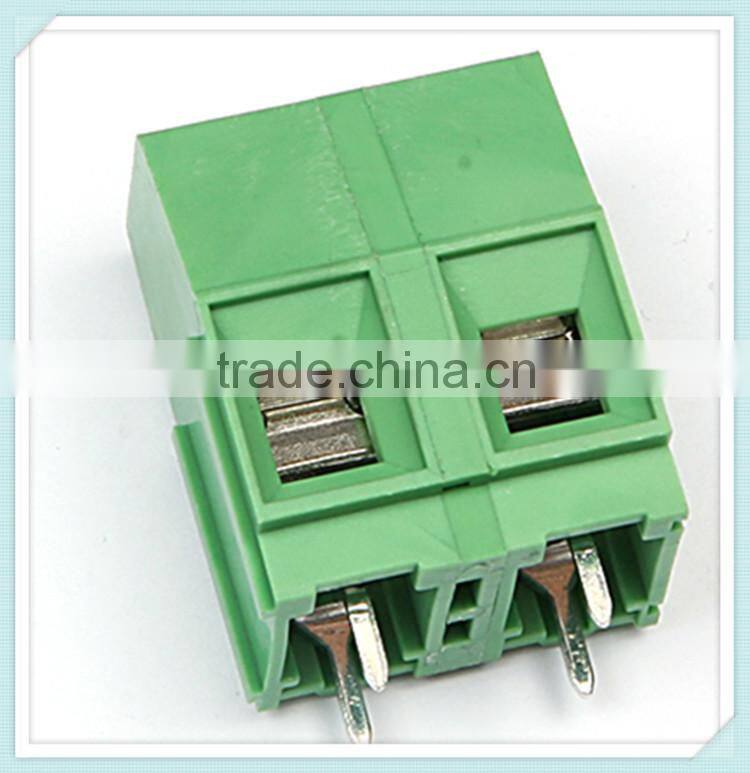

5.0mm 5.08mm Pitch 300V 12A PCB Mount 2 Pin Terminal Block Connector KDG126

12.7mm Pitch 300V 65A PCB Mount Terminal Block KDG131

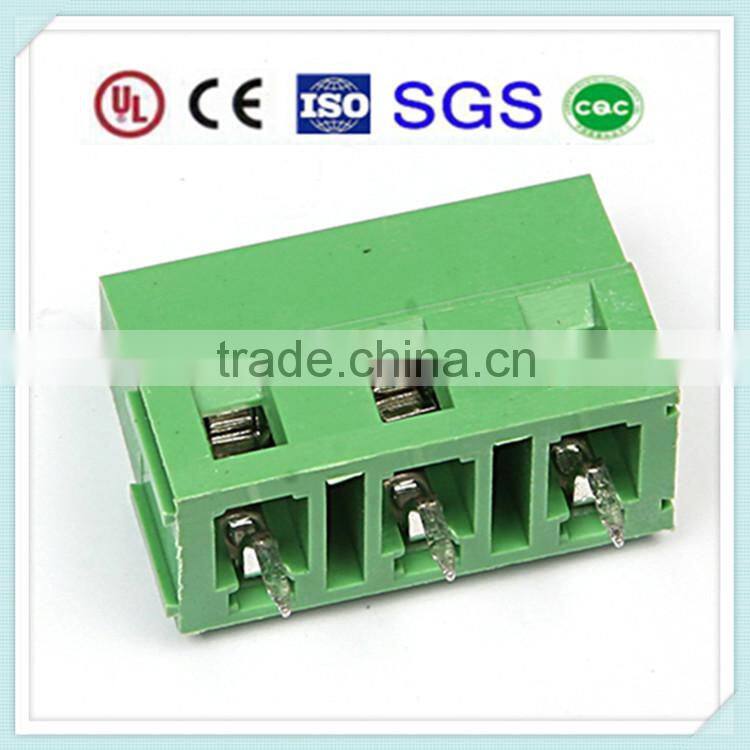

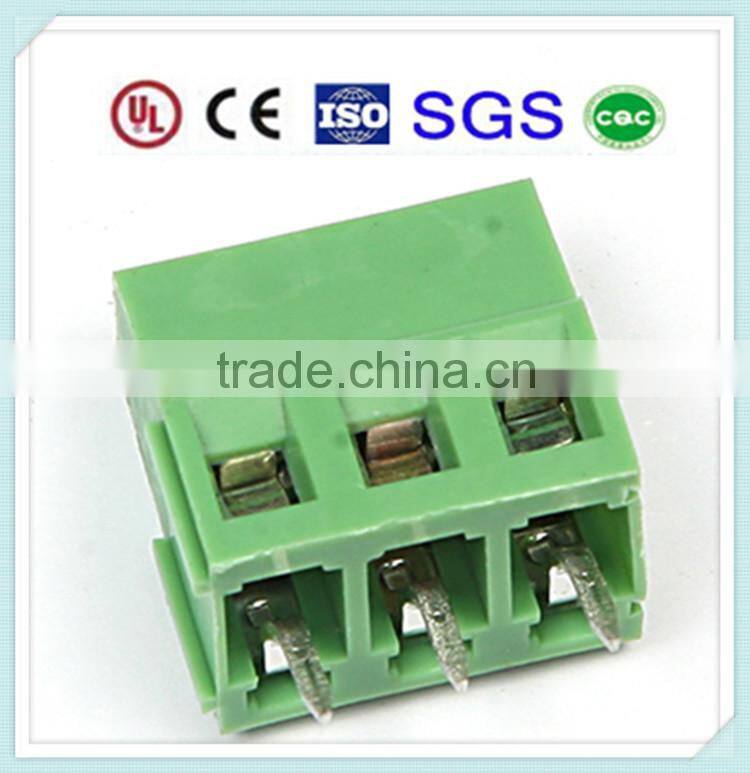

5.0mm 5.08mm Pitch 300V 12A PCB Mount 3 Pin Terminal Block Connector KDG126

5.0mm 5.08mm Pitch 300V 12A PCB Mount 2 Pin Terminal Block Connector KDG126

12.7mm Pitch 300V 65A PCB Mount Terminal Block KDG131

5.0mm 5.08mm Pitch 300V 12A PCB Mount 2 Pin Terminal Block Connector KDG126
