Brass Terminal Block Connector 4KDS 300V 10A 9.525mm Pitch
- Ningbo
- T/T Money Gram Credit Card
You May Like
-
Barrier Dual Row Screw Terminal Block
-
Barrier Terminal Connector KDT35 300V 15A 8.25mm Pitch
-
PLC Screw Brass Barrier Terminal Block 2KDS 300V 10A 7.62mm
-
Male Panel Mount Connector KDT49 300V 30A 11.11mm Pitch
-
Barrier Bakelite Terminal Connector KDT49 300V 25A 9.5mm Pitch
-
9.5mm Pitch 300V 30A KT2-1 Low Voltage Plastic Cable Wire Connectors
Product Description

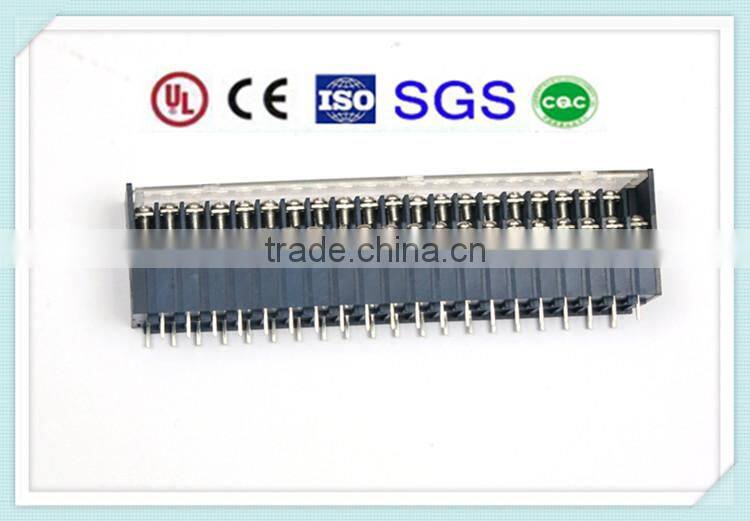

0.8mm Gold Plated Brass Pin 9.525mm Double Row Terminal Block Connector 4KDS 300V 10A

4KDS 300V 10A 9.525mm Pitch Terminal Block Specification
| 4KDS | |
| Approval | UL |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 10A |
| Wire range | 22-14AWG |
| Withstand Voltage | AC2000V for 1 minute |
| Insulation Resistance | 1000 mΩ / DC 500V |
| Materials | |
| Plastic Housing | PBT, UL94V-0, Black |
| Operation Temperature | -40℃- +130℃ |
| Terminal | Brass, Gold Plated |
| Screw | Steel, M3.0, Zinc Plated |
| Torque Value | 8Kg/cm |

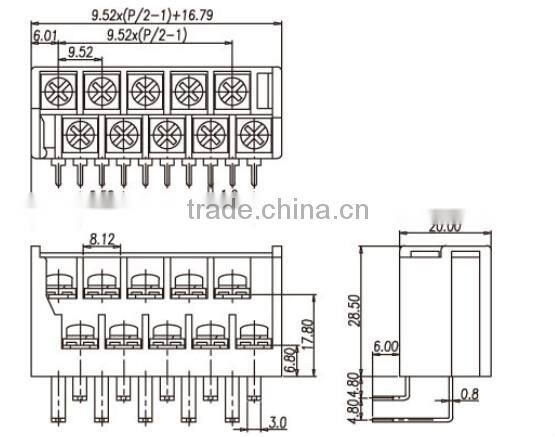

4KDS 300V 10A 9.525mm Pitch Drawing:

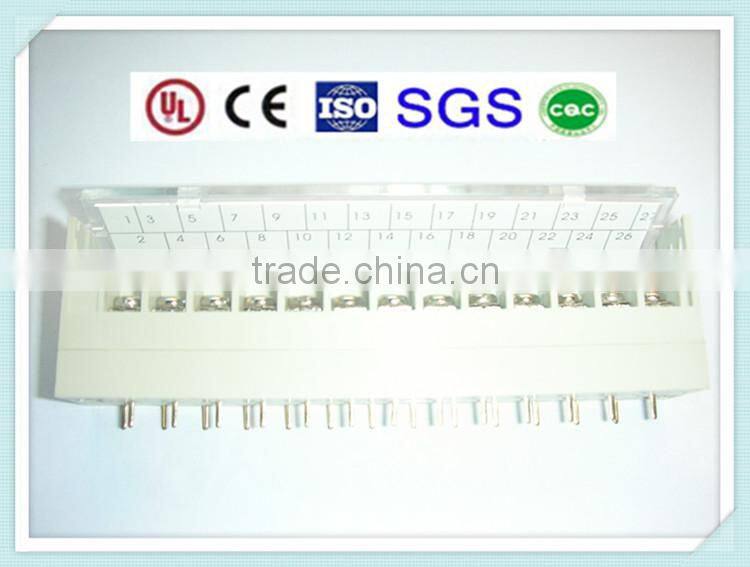

0.8mm Gold Plated Brass Pin 9.525mm Double Row Terminal Block Connector 4KDS 300V 10A, Plug and Socket Fixing By Screw, With Cover

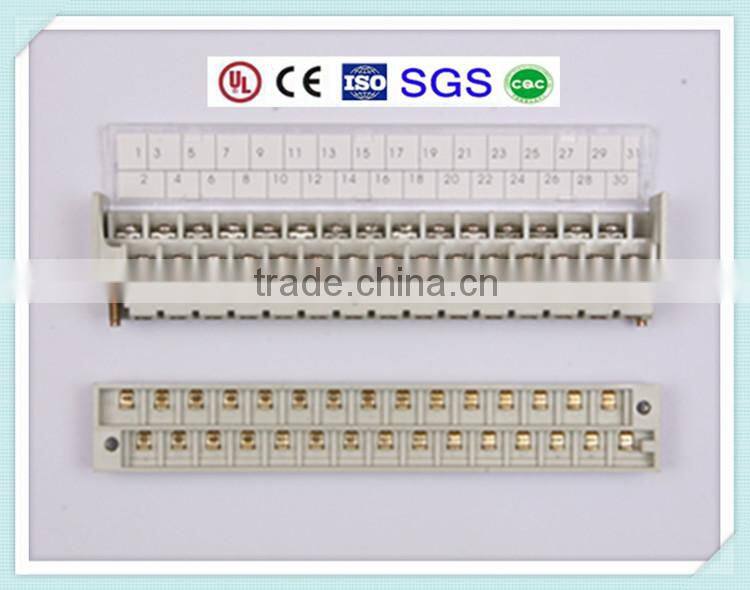

0.8mm Gold Plated Brass Pin 9.525mm Double Row Terminal Block Connector 4KDS 300V 10A, Plug and Socket Fixing By Screw, With Cover
0.8mm Gold Plated Brass Pin 9.525mm Double Row Terminal Block Connector 4KDS 300V 10A, Plug and Socket Fixing By Screw , With Cover
0.8mm Gold Plated Brass Pin Dual Row Terminal Block Connector 2KDS

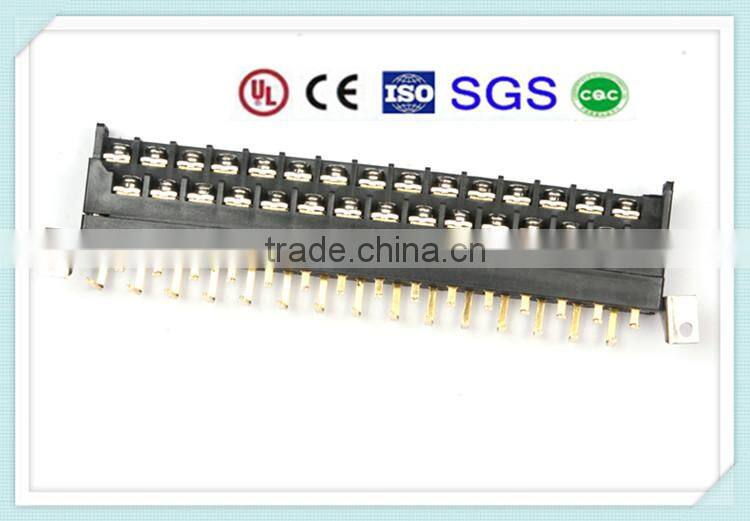

0.8mm Gold Plated Brass Right Angle Pin 9.525mm Double Row Terminal Block Connector 4KDS 300V 10A, Plug and Socket Fixing By Screw , With Cover
0.8mm Thickness Silver Plated Double Row Terminal Block Connector 2KDS 300V 10A 7.62mm
Certificate: CE, UL, ISO9001-2008, SGS, CQC



Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!
Dear valued clients, thank you for your interests to our products. We have more than 10 years professional experience in terminal blocks fields. For more details, pls feel free to contact us.
