Product Details
| Place of Origin | Zhejiang, China | Brand Name | XIONGSHI | |
| Model Number | KT4 | Type | Other | |
| Application | Power | Gender | Male |
Product Description

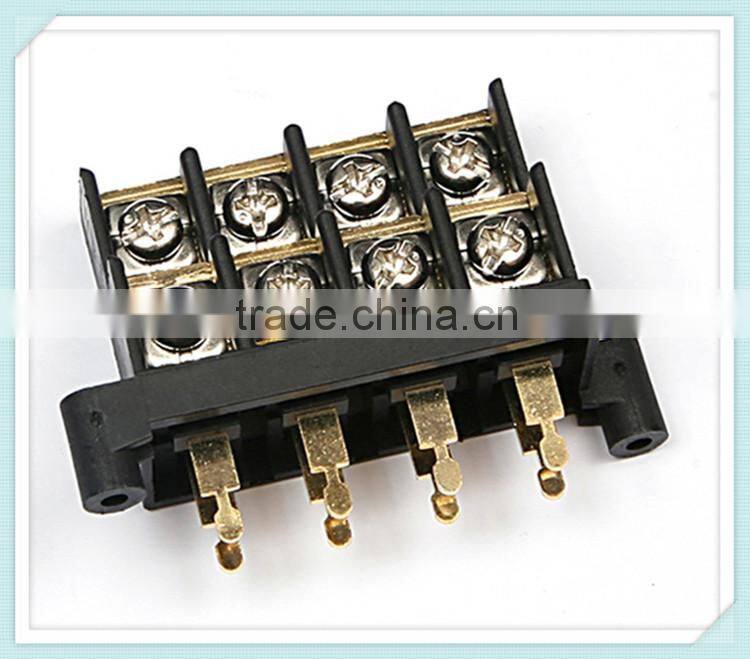

Tin Gold or Silver Plated Brass Car Speaker Terminal Block KT4
11mm/13mm Pitch 300V 30A
Gold or Silver Plated Brass Car Speaker Terminal Block KT4
11mm/13mm Pitch 300V 30A
Product Description
Termianl Block KT4 ISO9001:2000 CE CQC CUL SGS
1. Electrical Rating: 300V 30A
2. Pitch: 11mm/13mm
3. Plastic Housing: PB6.6, UL94V-0, Black
4. Terminal: Brass, 1.2, Tin Plated
5. Terminal Number: 2P~12P
6. Screw: Steel, #4-40, Nickel plated
7. Operating Temperature: -40°c~+105°c
8. Withstanding Voltage: AC1500V at 1 minute
9. Insulation Resistance: DC500V 500MΩ
10. Wire Range: 10~18AWG
11. Max. Torque Value: 18Kg/cm

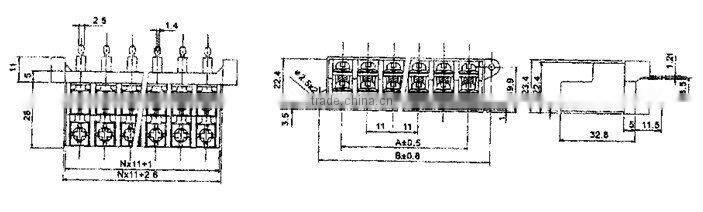

KT4 Design
Gold or Silver Plated Brass Car Speaker Terminal Block KT4
11mm/13mm Pitch 300V 30A

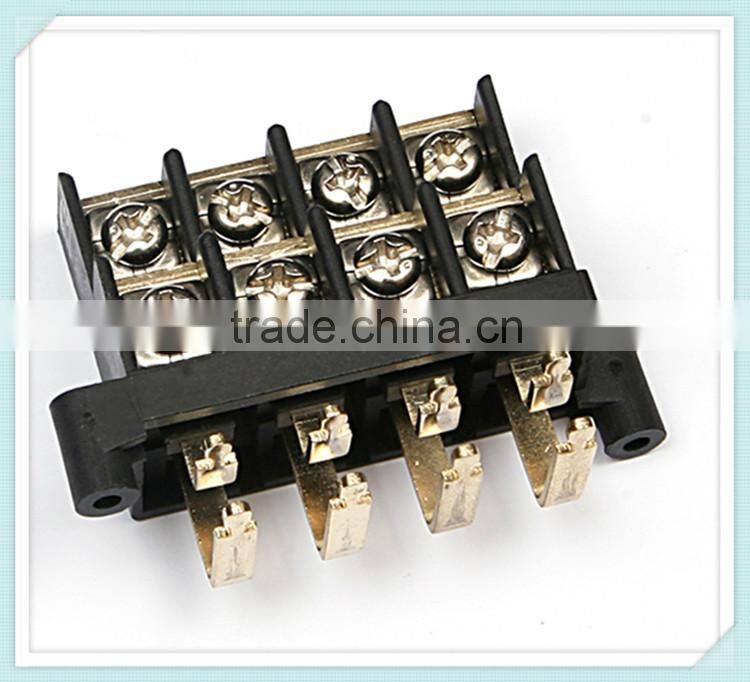

Double Row Straight Pin Gold or Silver Plated Brass Car Speaker Terminal Block KT4 11mm/13mm Pitch 300V 30A
Double Row Crimp Pin Gold or Silver Plated Brass Car Speaker Terminal Block KT4
11mm/13mm Pitch 300V 30A

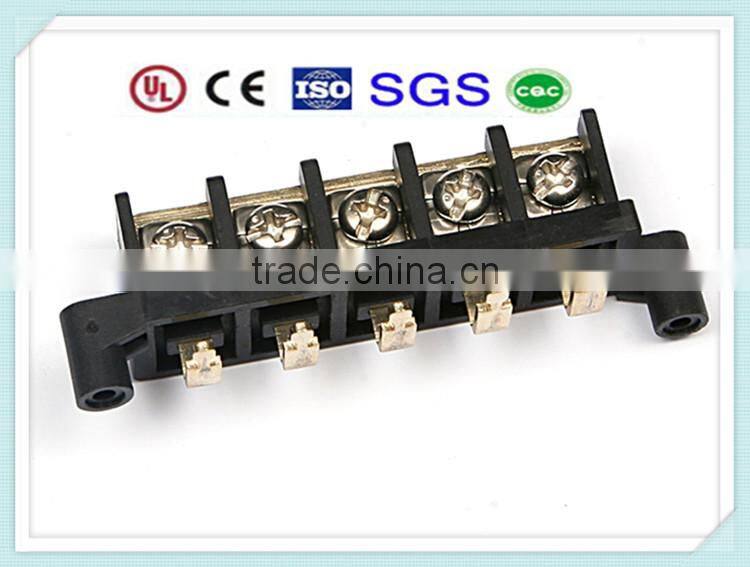

Certificate: CE, UL, ISO9001-2008, SGS, CQC
