Terminal Block Specification
| 2KDS | |
| Approval | UL |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 10A |
| Wire range | 22-14AWG |
| Withstand Voltage | AC2000V for 1 minute |
| Insulation Resistance | 1000 mΩ / DC 500V |
| Materials | |
| Plastic Housing | PBT, UL94V-0, Black |
| Operation Temperature | -40℃- +130℃ |
| Terminal | Brass, Silve Plated |
| Screw | Steel, M3.0, Zinc Plated |
| Torque Value | 8Kg/cm |
Drawing

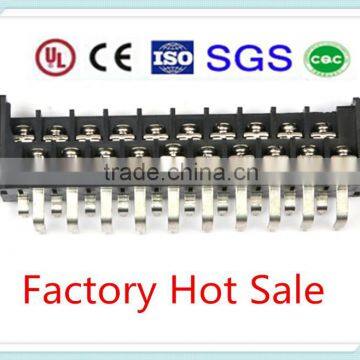

High and Low 2 Row Welding Terminal Block Connector , Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm
High and Low 2 Row Welding Terminal Block Connector with Wire Hole and Without, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm
Double Row Ladder Type Welding Terminal Block Connector with Angle Pin, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm
Double Row Terminal Block Connecto, Screw Fix Plug and Socket
Screw Double Row Ladder Type Electric Terminal with Cover, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm
Screw Double Row Ladder Type Electric Terminal with Straight Pin, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm
Certificate: CE, UL, ISO9001-2008, SGS, CQC
Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!
Dear valued clients, thank you for your interests to our products. We have more than 10 years professional experience in terminal blocks fields. For more details, pls feel free to contact us.
