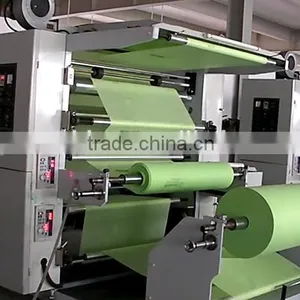

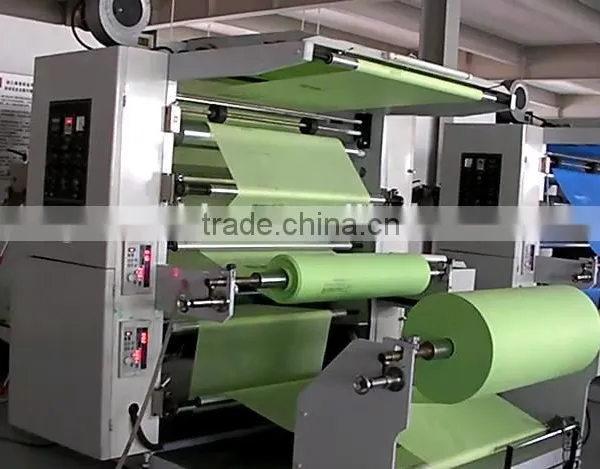

QTL Type High Speed 2 Colors Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll)

QTL Type High Speed 2 Colors Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll) thumbnail-1
QTL Type High Speed 2 Colors Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll) thumbnail-2
QTL Type High Speed 2 Colors Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll) thumbnail-3
QTL Type High Speed 2 Colors Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll) thumbnail-4
QTL Type High Speed 2 Colors Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll) thumbnail-5
QTL Type High Speed 2 Colors Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll) photo-1

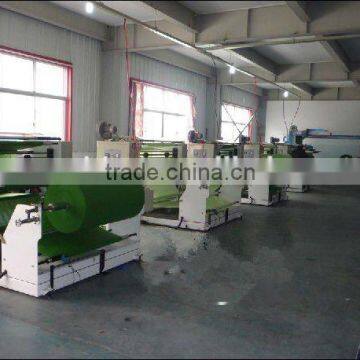

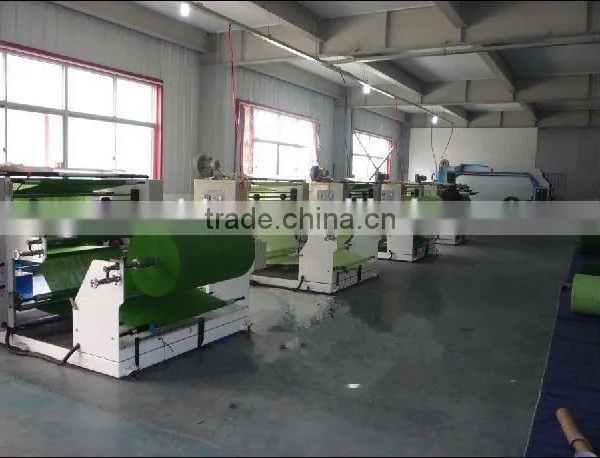

QTL Type High Speed 2 Colors Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll) photo-2

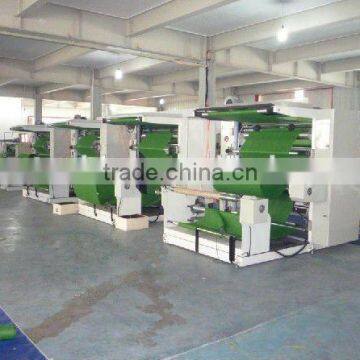

QTL Type High Speed 2 Colors Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll) photo-3

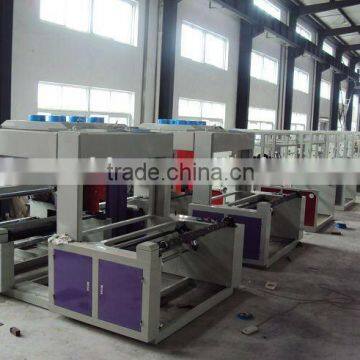

QTL Type High Speed 2 Colors Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll) photo-4

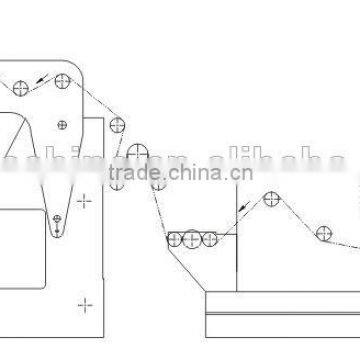

QTL Type High Speed 2 Colors Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll) photo-5
US$ 8,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Wenzhou Qiangtuo Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Letterpress
Place of Origin Zhejiang, China
Brand Name GUOXIN
Model Number QTL
Usage Paper Printer
Automatic Grade Automatic
Voltage 380V
Gross Power 15kw
Dimensions(L*W*H) 2300*2000*2300mm
Weight 2500kgs
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
QTL Type high speed 2 colors  Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll)

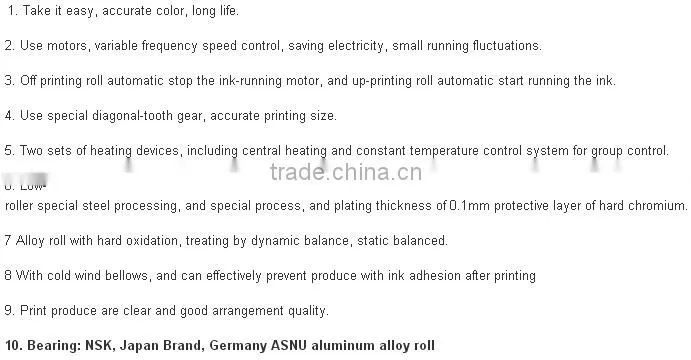

The main features

 Main technical parameter

Model

QTL 600-1200mm(below information according to 600model)

Machine Colors

2 Colors

Max. printing material width

600mm

Max. printing width

560mm

Printing material

OPP:20~70μm,BOPP:18~60μm,PE:35~100μm,

NY:20~50μm,PET:12~60μm,CPP:20~60μm,

paper: 20~100g/m2,nonwoven fabric,PP woven fabric

Printing length(repeat)

7.5"~40"(190mm~1000mm)/7.5"~50"(190mm~1270mm)

Max. Mechanical speed

90m/min

Max. Printing speed

70-80m/min

Register precision

Longitude:±0.2mm;  Transverse:±0.2mm

Press power

Mechanic control

Master motor power

2.2kw,Taiwan

Machine power

12kw

Outline size

2.3m×1.8m×2.2m

Power:

440V/380V/220V,50/60Hz

Rewind/Unwind DIA

Φ600mm( Φ1000mm can be made according to client's request)

Unwind way

Center unwind, By air shaft , with 5kg magnetic 1 pcs

EPC system:

Edge Position Controller for unwind 1 Pcs

Tension system

Automatic tension control

Unwinding loading way

By air shaft , 1 pcs

Unwind web cylinder

Φ76mm (inner diameter)

Printing plate lifting system

Automatic Hydraulic cylinder control printing roll up and down

Anilox roll amd Inking way

3 standards of machine:

1. Standard machine: metal anilxo roll (100-400PLI)

2. High quality: ceramic anilox roller (100-1000lpi), single doctor blade, one diaphragm pump

3. High speed machine:ceramic anilox roller (100-1000lpi), enclosed chamber doctor blade

Inking motor

deceleration motor,60w

Drying model

Electric heating

Drying power

6 kw

Air blower (large)

0.95kw / 2 pcs

Air blower (small)

75w / 6 pcs

Rewind way

Center rewind, By air shaft , with 5kg magnetic 1 pcs

Tension system

Full automatic tension control for rewind 1PCS

Rewinding unloading way

By air shaft , 1 pcs

Rewind web cylinder

Φ76mm (inner diameter)

Rewind material unload way

By Manual


QTL Type high speed 2 colors Non Woven Fabric Bag Flexo Printing Machine (Roll to Roll)
