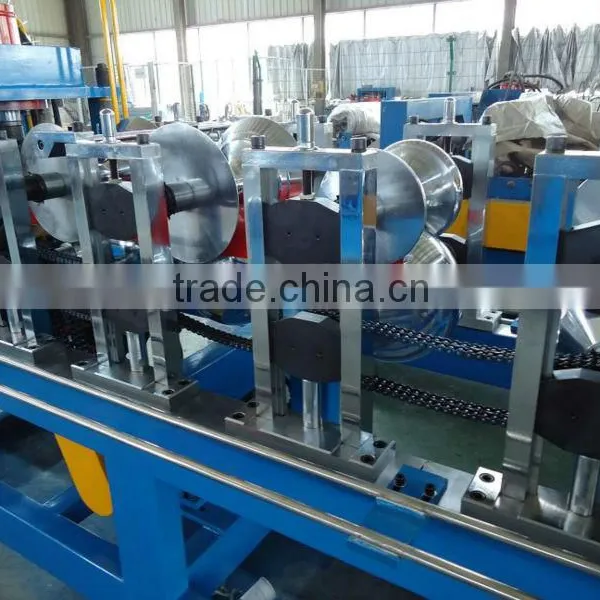

Automatic Iron Sheet Roof Plate Cold Roll Forming Machine Roll Former Colored Steel Roofing Forming Machine

Automatic Iron Sheet Roof Plate Cold Roll Forming Machine Roll Former Colored Steel Roofing Forming Machine thumbnail-1
Automatic Iron Sheet Roof Plate Cold Roll Forming Machine Roll Former Colored Steel Roofing Forming Machine photo-1
US$ 20,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Steel
Contact Supplier Request Quote Chat Now
Hangzhou Willing International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Steel
Use Wall
Place of Origin Zhejiang, China
Brand Name willing
Model Number 35-125-750
Power(W) 5.5kw
Voltage 380/220v
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.roofing cold roll forming machine
-grade service
3.factory direct price
4.easy operation
5.trapezoidal roll forme

Automatic Iron Sheet Roof Plate Cold Roll Forming Machine roll former Colored steel roofing forming machine



Technical Parameters

Material Spec           Color steel sheet;

Thickness               0.3 mm to 0.8mm

Coil stress             235Mpa

Coil width             1000mm

Working Speed         10 ~ 12 m/min.

Cutting Tolerance       ≤±2.5mm ( length≤ 5000mm)

≤±3mm ( 5000mm < length ≤ 10000mm)

Passive Uncoiler       Max. Capacity: 5000kgs

Type of cutting          Roll-formed and length-set cutting

Roller stands           about 18stands.

Material of Main Equipment

Roller MaterialHigh grade No.45 forged steel, with digital-controlled procession,

Panted with hard chrome.

Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft

Electric Elements       PLC control panel, transducer imported from Mitsubishi of Japan.

Other elements from famous suppliers in China

Cutter blade            Cr12 mould steel with quenched treatment



Working Flow

Decoiling the sheet       Sheet guiding    Roll forming      Measure length

Cutting the panel    panels to the supporter



Standard Equipment of Machine

passive Uncoiler                1pc

Guiding Equipment                1set

Roll Forming Equipment          1set

Post Cut Equipment              1set

Hydraulic Station                 1pc

PLC Control Penal                1pc

Supporter Table                 2pcs
