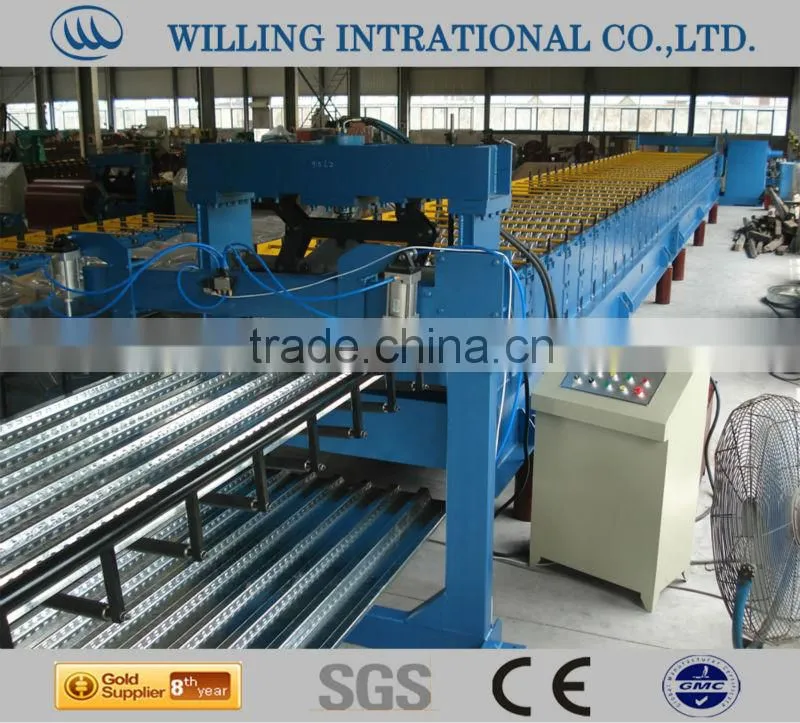

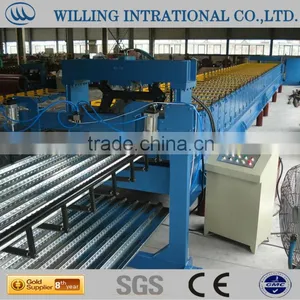

floor deck roll forming machine/steel decking forming machine/metal decking forming machine

Specifications

Material Spec           Galvanized steel sheet at stress 33KSI;

Thickness: 0.8mm to 1.2 mm

Width: 1250mm

Working Speed         10 ~ 12 m/min

Cutting Tolerance       ≤±2.5mm ( length≤ 5000mm)

                     ≤±3mm ( 5000mm < length ≤ 10000mm)

Power Requirement     Main motor power: 18.5Kw

Hydraulic station power: 4Kw

Passive Uncoiler       Max. Capacity: 5000kgs

Main roller             about 29 stands

Type of cutting          Roll-formed and length-set cutting

Machine Dimension     About 26000×1400×1400mm

1. Material of Main Equipment

Roller MaterialHigh grade No.45 forged steel, with digital-controlled procession,

Panted with hard chrome.

Active Shaft Material    High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft

Electric Elements       PLC control panel, transducer imported from Mitsubishi of Japan.

Other elements from famous suppliers in China

Cutter blade            Cr12 mould steel with quenched treatment

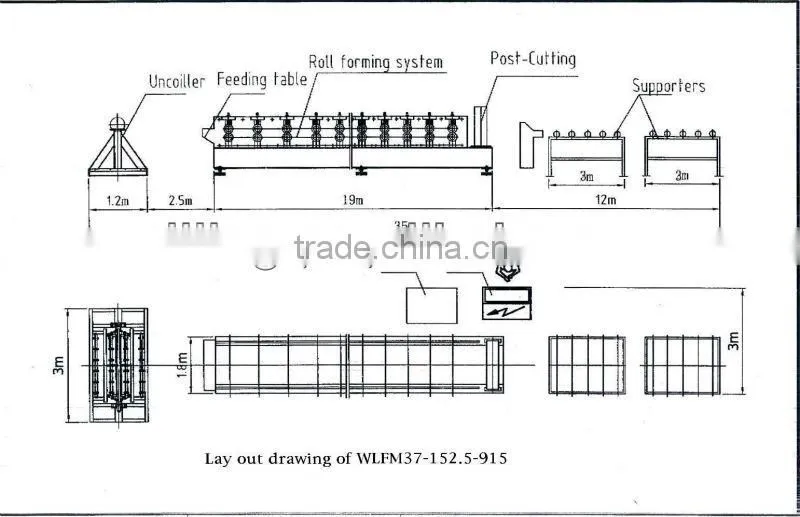

Working Flow

Uncoiling the sheet    Sheet guiding    Lubrication         Roll forming

Measure length       Cutting the panel       panel come out

 Standard Equipment of Machine

Un-powered Uncoiler            1pc

Guiding Equipment              1set

Lubricating roller                 1pc

Roll Forming Equipment          1set

Post Cut Equipment              1set

Hydraulic Station                1pc

PLC Control Panel              1pc

Supporter Table                2pcs
