New Design Corrugated Sheet Metal Roof Making Machine

New Design Corrugated Sheet Metal Roof Making Machine photo-1
New Design Corrugated Sheet Metal Roof Making Machine photo-2
New Design Corrugated Sheet Metal Roof Making Machine photo-3
New Design Corrugated Sheet Metal Roof Making Machine photo-4

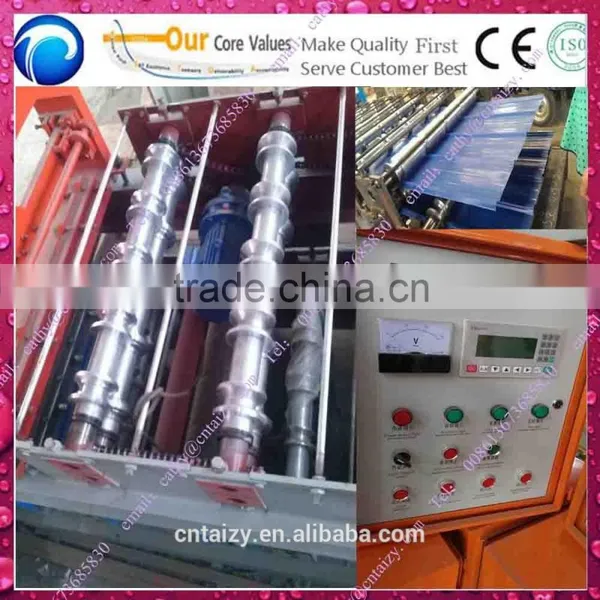

New Design Corrugated Sheet Metal Roof Making Machine photo-5
New Design Corrugated Sheet Metal Roof Making Machine photo-6
US$ 7,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Glazed Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Tile Forming Machine
Tile Type Glazed Steel
Use Roof
Production Capacity 12m/min
Place of Origin Henan, China
Brand Name TZ
Model Number TZ-840
Power(W) 4kw
Voltage 380V
Dimension(L*W*H) 7100x1500x1510mm
Weight 3.6 T
Certification CE ISO
Warranty 2 years
After-sales Service Provided Engineers available to service machinery overseas

new design corrugated sheet metal roof making machine

Contact information

Mobile: 0086-13673685830
Phone No: 0086-371-86660712
Fax No: 0086-371-86660713
Skype: Taizy2031

Viber:13673685830
WhatsApp:13673685830
QQ:2415066501

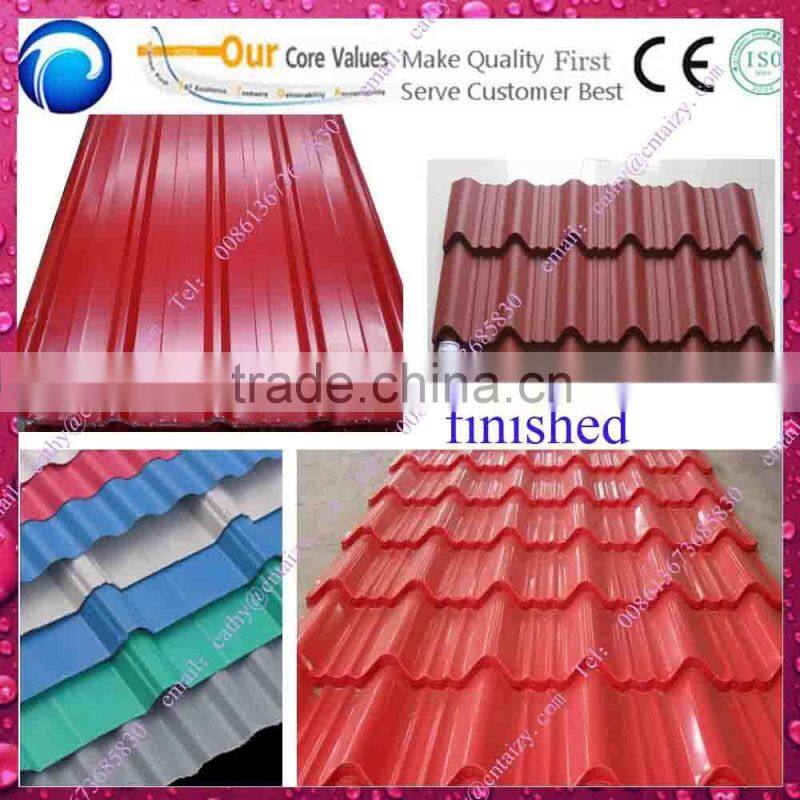

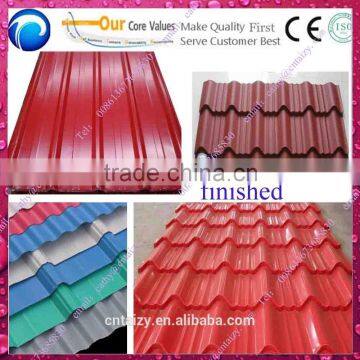

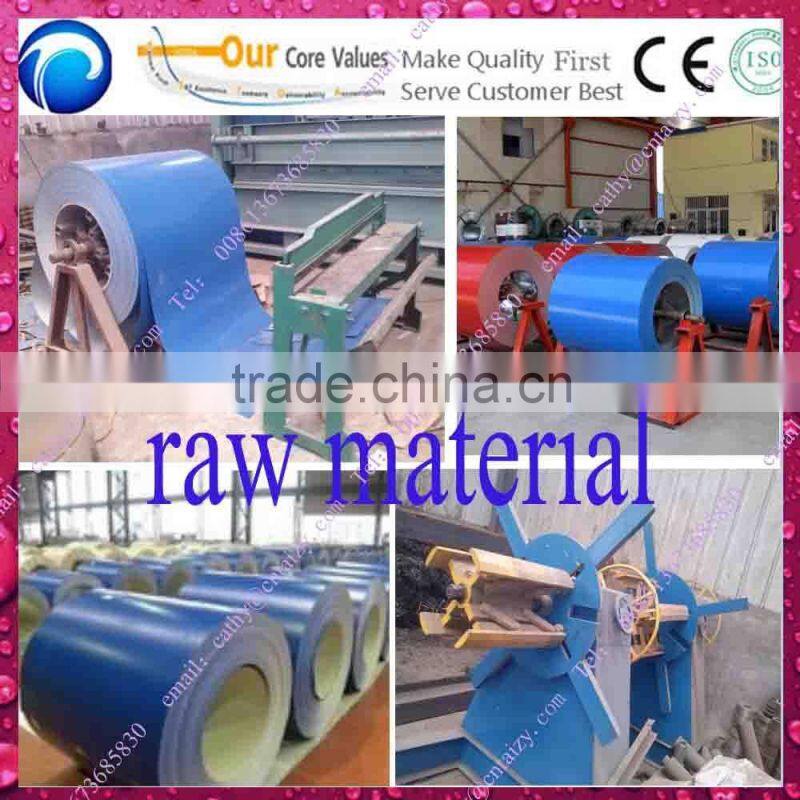

raw material and finished picture
new design corrugated sheet metal roof making machinenew design corrugated sheet metal roof making machine

1. Application

The steel panel produced by this machine is beautiful and durable. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

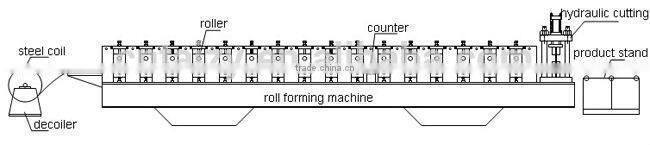

2. working process

decoiling-sheet feeding-roll forming-length measuring-stop and cutting-panel to product stand

 new design corrugated sheet metal roof making machine

3.parameter

No.

        Roofing Tile Making Machine

1

Suitable material

Color steel sheet ,galvanized steel sheet, aluminium sheet

2

Width of material

1000mm or as you required

6

Thickness of material

0.3-0.6mm or as your needs

2

Working speed

12m/min, can be 20m/min

3

Main motor power

4kw with cycloidal reducer

4

Hydraulic station power

4kw

5

Electrical control system

PLC control system

7

Shaft diameter

70mm

8

Roller station

14 rows  Depends on profile drawing

10

Dimension

7100x1500x1510mm

11

Weight

About 3.6 T

12

Voltage

380V 3phase 50HZ or as the customer's requirements

13

Material of roller

High grade 45# forged steel plated with hard chrome plating

14

Material of cutting

Cr12 mould steel with quenched treatment

15

Working time

Can be 24 hours

16

Workers

1-2 only

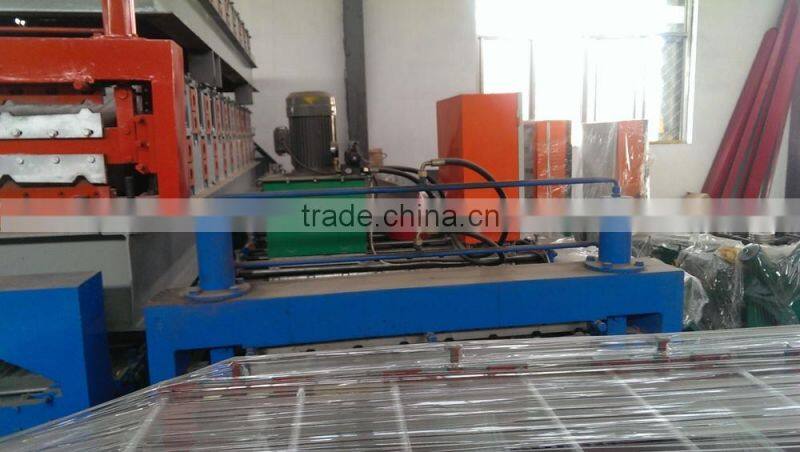

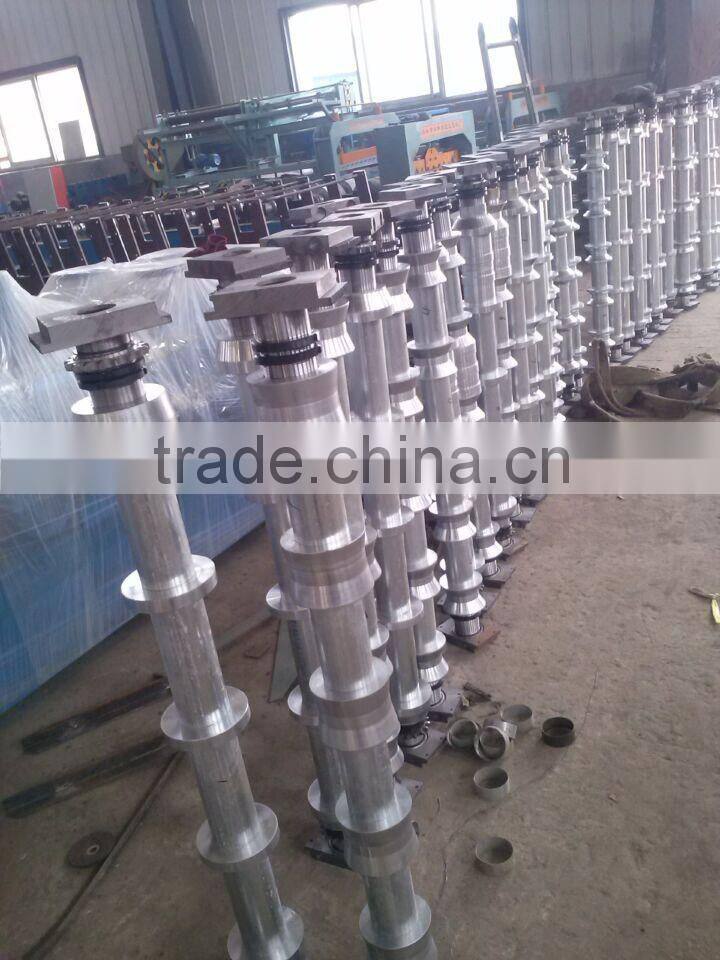

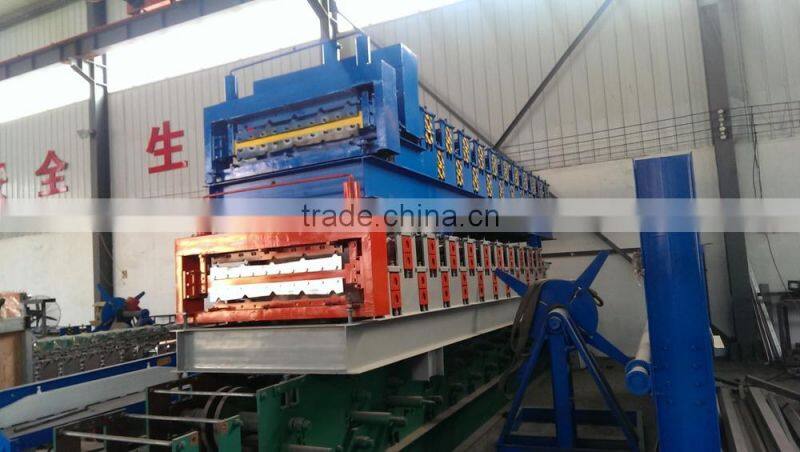

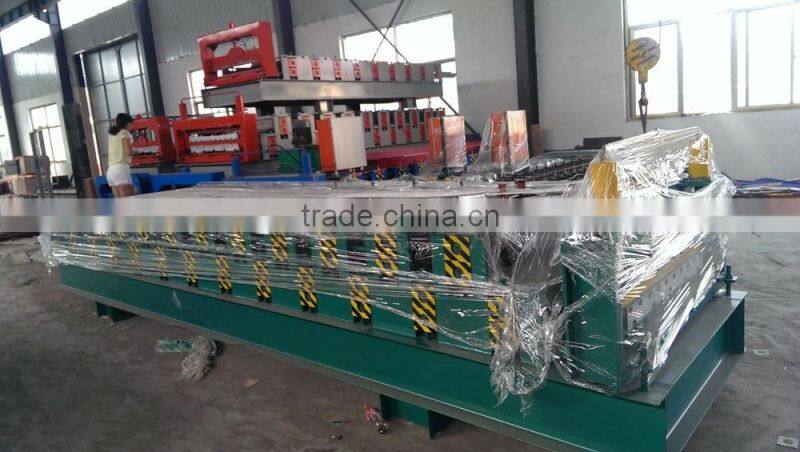

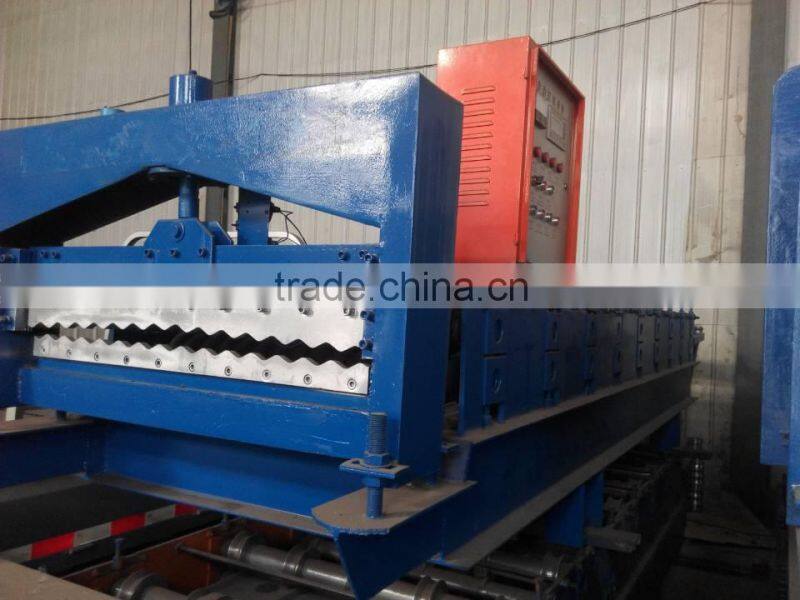

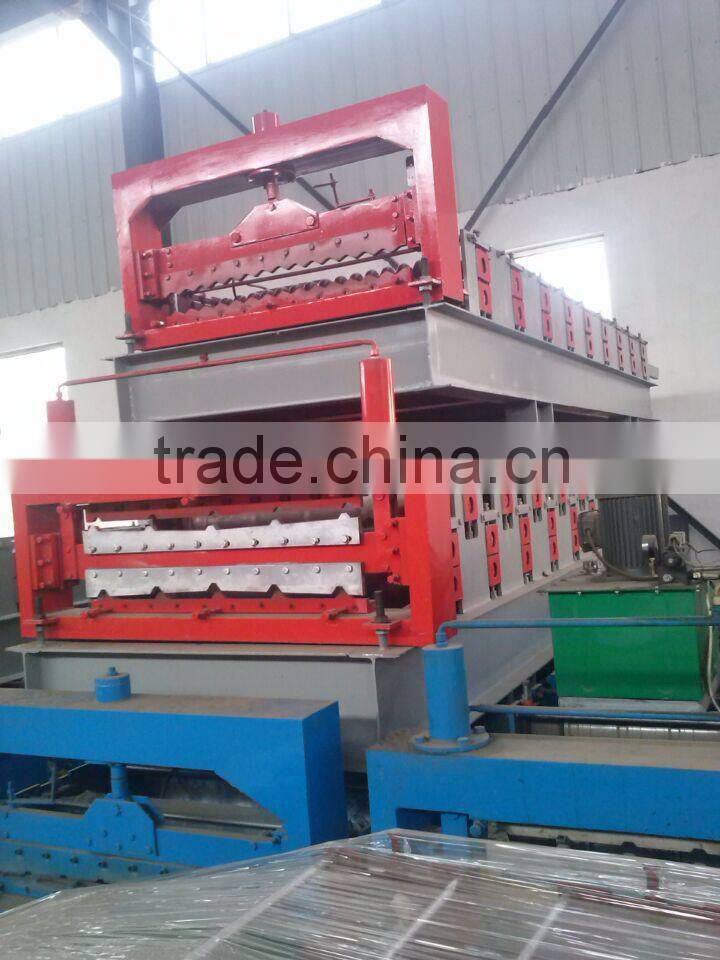

4. more photos

new design corrugated sheet metal roof making machinenew design corrugated sheet metal roof making machinenew design corrugated sheet metal roof making machinenew design corrugated sheet metal roof making machinenew design corrugated sheet metal roof making machinenew design corrugated sheet metal roof making machine

new design corrugated sheet metal roof making machine

new design corrugated sheet metal roof making machine

our customer

new design corrugated sheet metal roof making machinenew design corrugated sheet metal roof making machine

Purchase process

new design corrugated sheet metal roof making machine
