Specifications

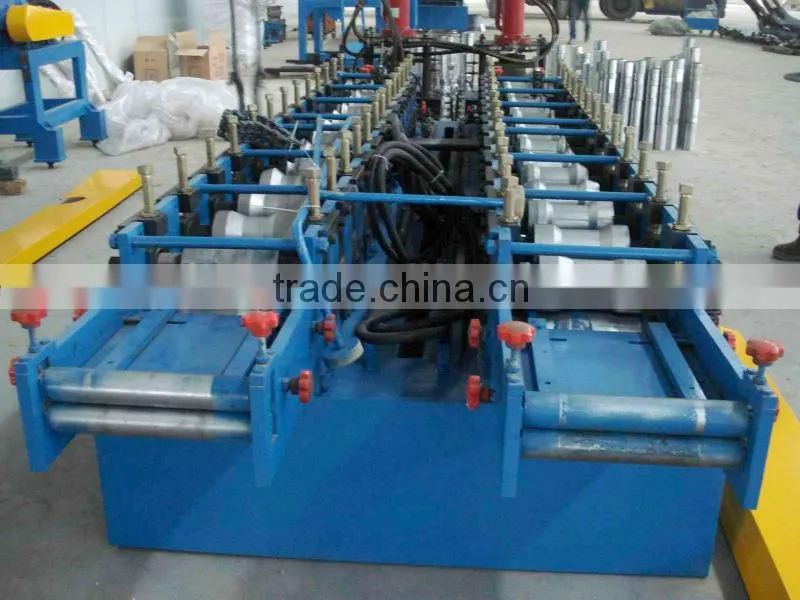

roller shutter door machine
TECHNICAL PLAN
Material Spec Color steel sheet;
thickness of material 0.4-0.8mm
Coil stress 235Mpa
Main motor power 5.5kw
hydraulic station power 3kw
Working Speed 10 ~ 12 m/min.
Cutting Tolerance ≤±2.5mm ( length≤ 5000mm)
≤±3mm ( 5000mm < length ≤ 10000mm)
Type of cutting Roll-formed and length-set cutting
Roller stands about 26 stands.
Voltage 380V 3 phase 60Hz
Material of Main Equipment
Roller Material High grade No.45 forged steel, with digital-controlled procession,
plated 0.05mm on one side with hard chrome.
Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft Φ75mm.
Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan.
Other elements from famous suppliers in China
Cutter blade Cr12 mould steel with quenched treatment
Working Flow
Decoiling the sheet Sheet guiding Roll forming Measure length
Cutting the panel panels to the supporter
Standard Equipment of Machine
Guiding Equipment 1set
Precutting 1set
Roll Forming Equipment 1set
Post Cut Equipment 1set
Hydraulic Station 1pc
PLC Control Panel 1pc
Supporter Table 2pcs
