Specifications

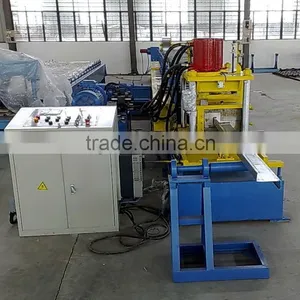

c/z purlin foming machine ,c and z purlin machinecan change the size by moving the whole stands rollers
delivery time 60 days after receiving down payment.
payment: 30% T/T down payment,and 70%T/T balance before delivery
one machine usual need one 40" container.
Components

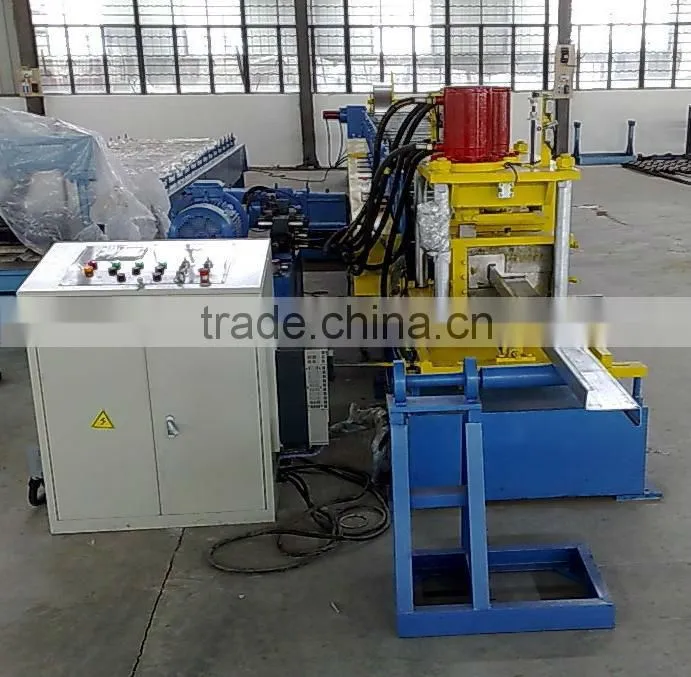

This line includes hydraulic uncoiler, sheet guiding equipment, leveling system, roll forming system, cutting equipment, hydraulic station, electric controlling system and run out table
Technical Parameters
Material Spec galvanized steel sheet at stress 235Mpa (33ksi); Thickness: 1.5-3.0 mm,
Roll Forming Speed about 10-12m/min

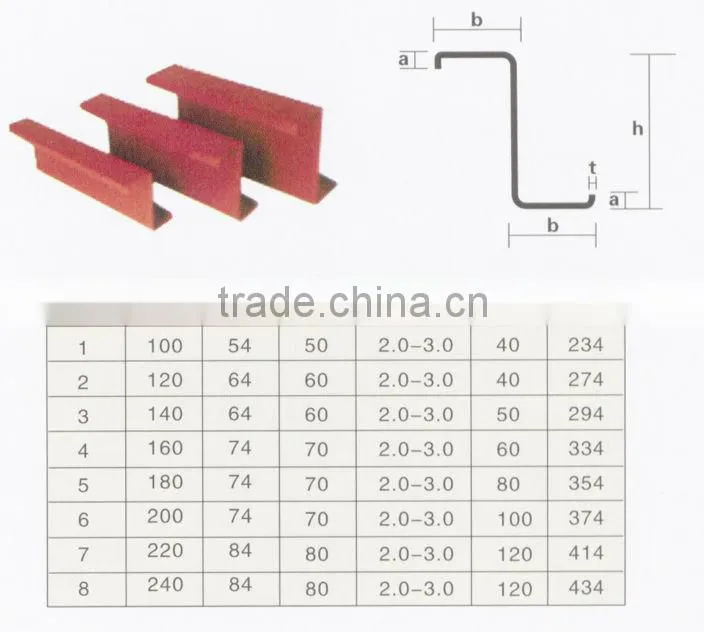

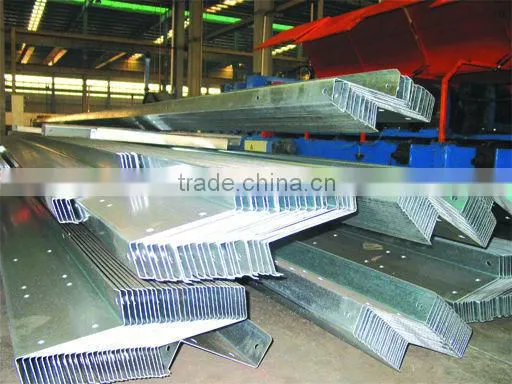

Specs as per our profile
Material of Main Equipment
Roller Material &
Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated
mechanic feature of the shaft
Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan.
Cutter blade Cr12 mould steel with quenched treatment
Component and Function
Coil Feeding Equipment Consists of one uncoiler with capacity of 5000kgs and its base. The steel sheet is
manually fed to the guiding equipment under the function of friction and traction
Guiding Equipment Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.
Leveling system making the coil sheet flat before forming
Roll forming system: The main frame of machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface.The rollers are surface-chromeplated after being machined by the exact machine tool.
Post Cutting Equipment Cut the panel after roll forming. The cutting power is supplied by the hydraulic station, it is stable.
Hydraulic Station Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
PLC Control Panel Main parts imported from Mitsubishi. The operation is easy and steady and can be choose operation by manual or automatically.
Supporter Table To support the finished panels. The quantity we supply is 2 pieces with length 3000mm, it can support panels with 10000mm at normal condition.
Working Flow
Decoiling the sheet Sheet guiding strip leveling Roll forming
Cutting the panel Panels come out to the supporter
Standard Equipment of Machine
passive Uncoiler 1pc
Guiding Equipment 1set
Leveling system 1set
Punching system 1set
Cut Equipment 1set
Roll Forming Equipment 1set
Hydraulic Station 1pc
PLC Control Penal 1pc
Supporter Table 2pcs
