C z Change Purlin Roll Forming Machine / C Z Purlin Cold Roll Forming Machine
- Shanbghai
- T/T Money Gram Credit Card
You May Like
-
C z Purlin Roll Forming Machine / C Z Purlin Cold Roll Forming Machine
-
C z Purlin Adjustable Forming Machine / C Z Purlin Cold Roll Forming Machine
-
Steel Purlin Prices / C Z Purlin Cold Roll Forming Machine
-
Concrete C Purlin Forming Machine/cold Forming Machine
-
Steel Frame and Purlin Machine
-
Steel Purlin Making Line
Product Details
| Condition | New | Type | Other, Pur;in forming machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 10-12m/min | Place of Origin | China | |
| Brand Name | willing | Model Number | at buyer`s requirement | |
| Power(W) | 15kw(confirmed by final design) | Voltage | 380V 3Phase 50Hz | |
| Certification | CE and ISO9001:2008 | Warranty | 1year |
Product Description
Specifications
1.Use:roof board2.Roll forming thickness:1.5-3mm
3.Roll forming speed: 10-12m/min
4.Warranty period:one year
C/Z -shape Purlin Roll forming machine
1. Main Parameters
Material Spec | Galvanized or Carbon steel sheet (Q235) |
| Coil thickness | 1.5~3.0mm |
| Working speed | 10~12m/(cutting time is not included) |
| Cutting tolerance | ≤±2.5mm ( length ≤5000mm ) |
| ≤±3.0mm (5000mm <length ≤10000mm) | |
| Power requirement | Main motor power: 15Kw(Confimed by final design) |
| Hydraulic station power: 5.5Kw (Confimed by final design) | |
| 3 tons manual un-coiler | Max. capacity: 3000kgs; Inner Dia.: 508mm |
| Main roller quantity | Around 14 stands (Confimed by final design) |
| Type of cutting | Roll-formed and length-set cutting |
| Voltage | 380V 3phase 50HZ or as customers' requirements |
2. Material of main equipments
Roller Die Material | G G Cr15 bearing steel with quenched treatment |
| Active Shaft Material | High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft, shaft diameter 90mm |
Electric elements:
| Control system PLC panel, transducer and touch screen originally imported from Mitsubishi of Japan. Other elements from famous suppliers in China |
| Cutter blade: | Cr12 mould steel with quenched treatment |
We can produce this kind machine according to custmer`s requirement

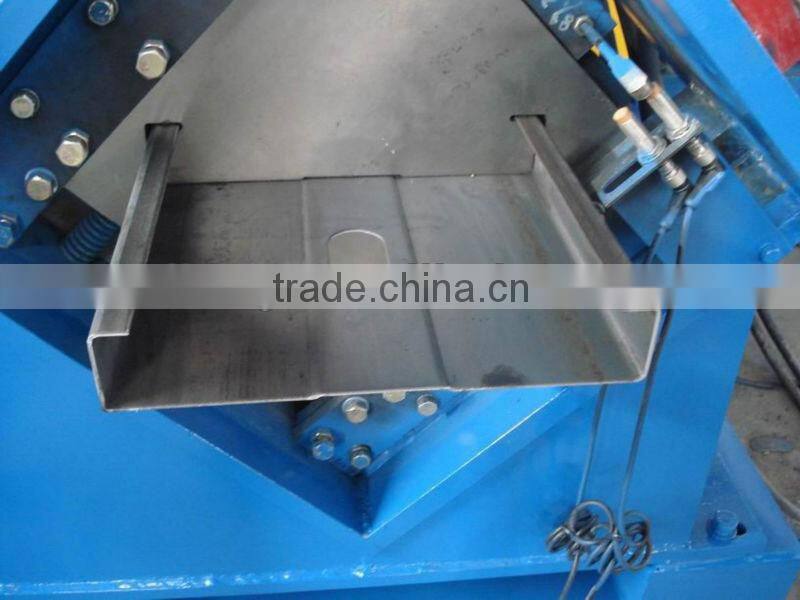

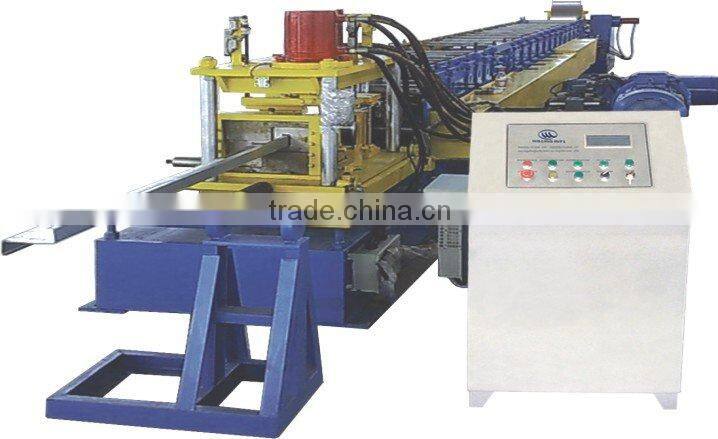

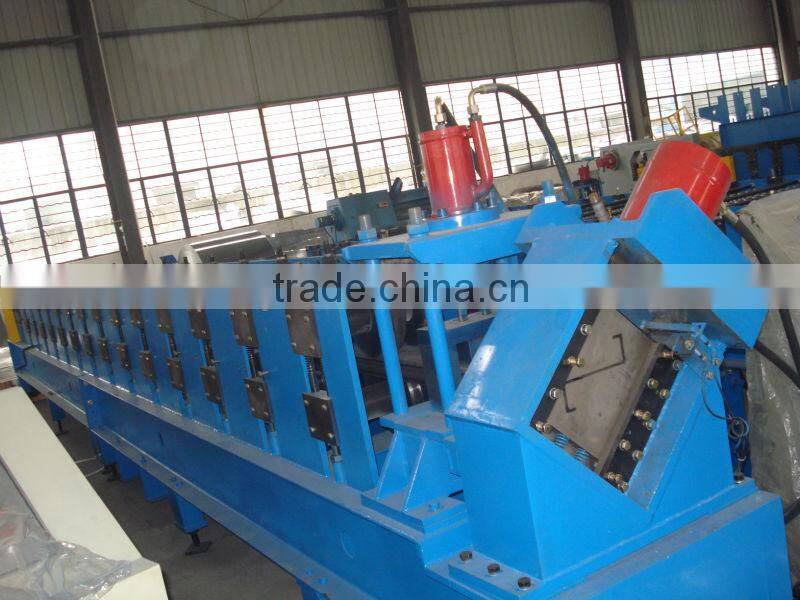

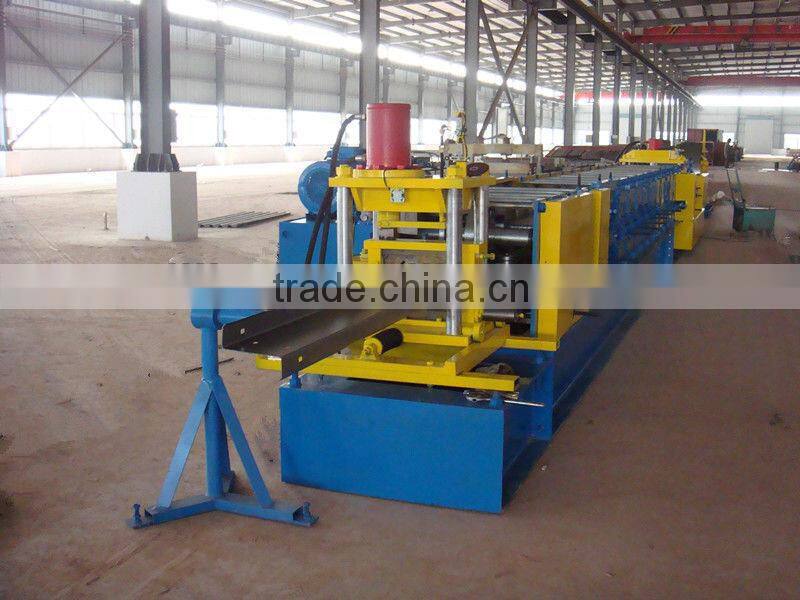

Example Machine Picture

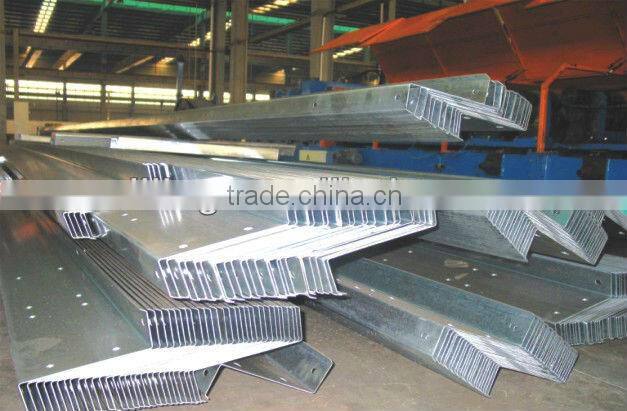

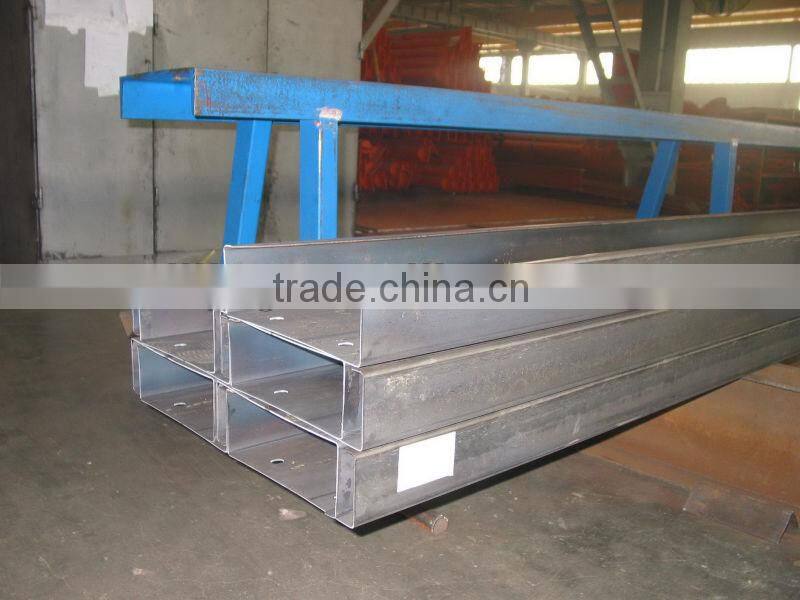

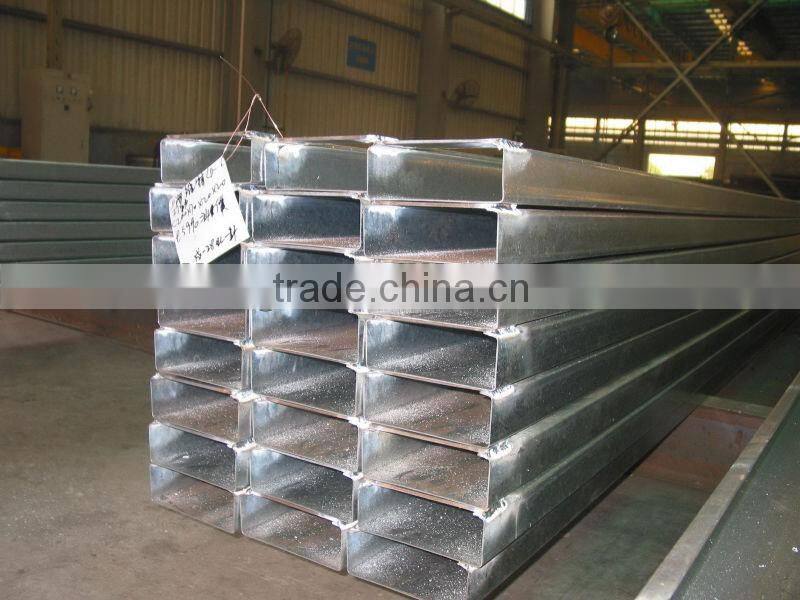

Example Finish Products
