Used Steel Frame c Shape Roll Forming Machine
- Shanghai/Ningbo
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Willing | |
| Model Number | WLFM |
Product Description
Specifications
High QualityCompetitive price
Excellent Service
Purlin Roll Forming Machine
(Pls kindly note: we can make different roll forming machine according to your request )
Specification Sheet

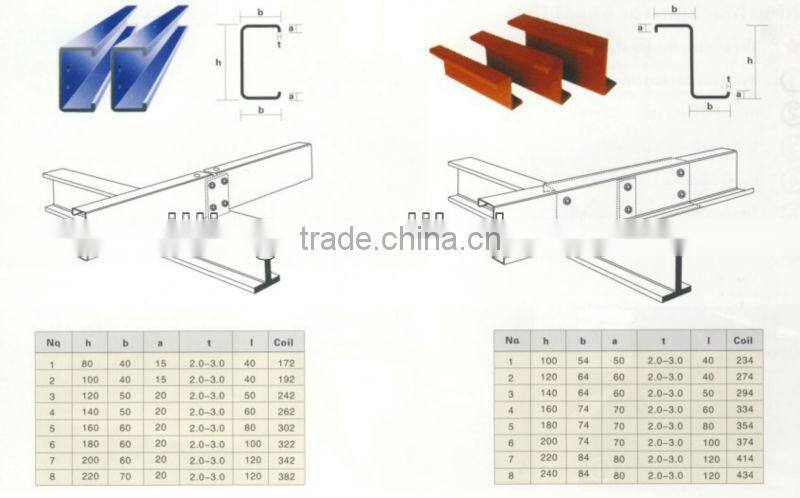

Profile

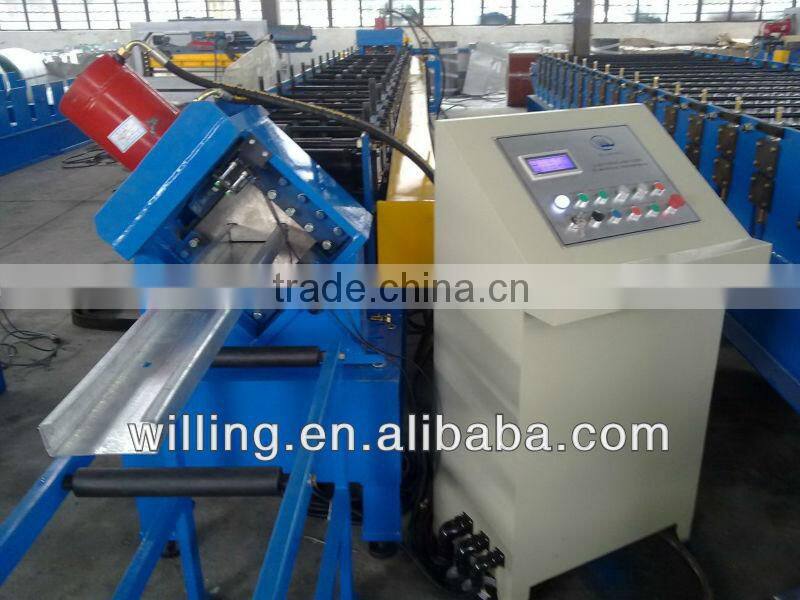

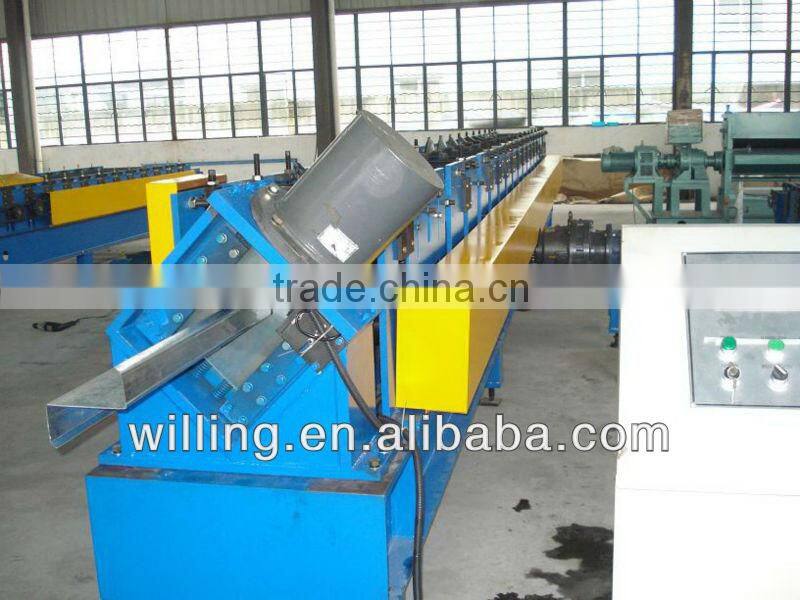

Machine Picture
Final Product

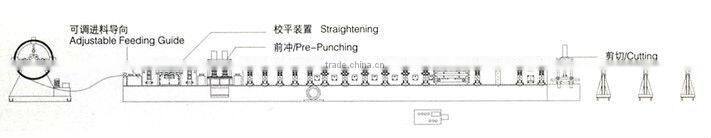

Working Flow
1. decoiling → guiding and feeding → straightening/leveling→pre-cutting →punching(optional) → roll forming→run out table
2. decoiling → guiding and feeding → straightening/leveling→punching(optional) → roll forming→length cutting→run out table
Components of the Roll Forming Machine
| 3T Manual Uncoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Straightening/Leveling Equipment | 1 Set |
| Punching Equipment(optional) | 1 Set |
| Roll Forming Equipment | 1 Set |
| Post Cut Equipment | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control Panel | 1 Set |
| Supporter Table (2M length one piece) | 2 Pcs |
Material of Main Equipment
Roller Material GCr15 bearing steel, with quenching treatment
Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft
Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan.
Cutter blade Cr12 mould steel with quenched treatment
