Steel Tile Sheet

Specifications

Product Name: WLYX70-171-855 Steel Tile Sheet

Products Feature:
1. A stylish and attractive design,giving the apperance of a traditional roof tile.
2. Resistant to frost,heat,hail and gales;100% waterproof,thanks to the lateral run-off channel on each sheet for several model.
3. Quick and easy to install.
4. On renovation jobs the old roofing won’t,in most circumstances,need to come off.
5. No problem with bad weather conditions during roof-on-roof assembly.
6. Reduces the load to borne by the roof support structure to a minimum(low self-weight:5kg/m2).
7. Longer lasting,thanks to the use of perfectly coated,high grade steel(coating:plastisol).

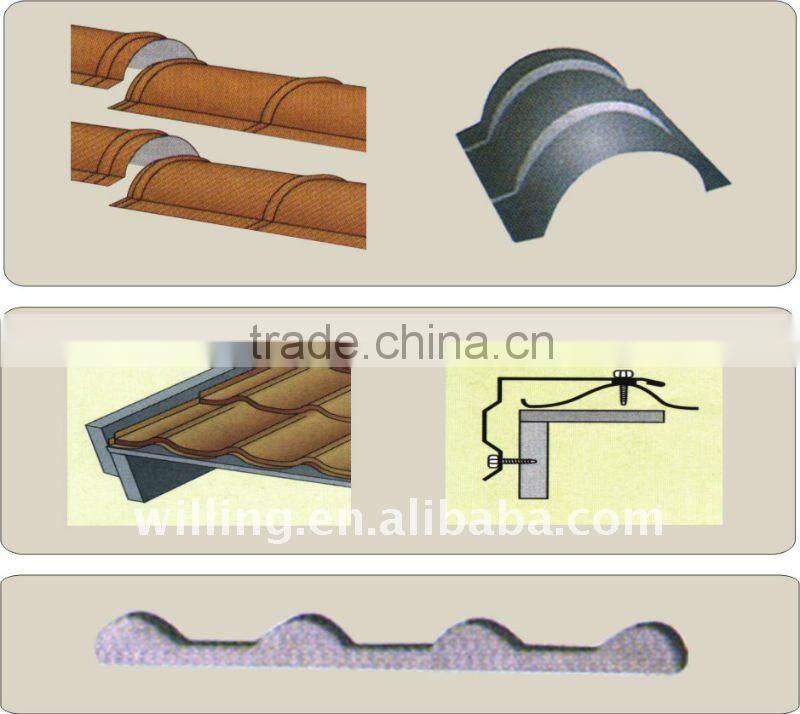

Sealing profiles
There is a sealing profile available for sealing the gap between the wall sheet and the roof-tile panel, the “positive ”type.A flat foam profile is provided for the cut-off between the verge flashing and the sheet. Another “negative”type is available for the cut-off between the ridge tile and the roof-tile panel.


Ridge cap and terminal tiles
A terminal tile is located at each end of the ridge and screwed down.the seams are sealed with a silicone mastic.


Verge flashing(verge board)
To hide the side walls and protect them from rain,verge flashings are available in length of 2-6m if desired,a profile filler can be inserted between the tile and the bargeboard.on the left-hand side you can,if desired,bend the far end of the cut-off sheet a little.
