Model No.:LM-WHD05

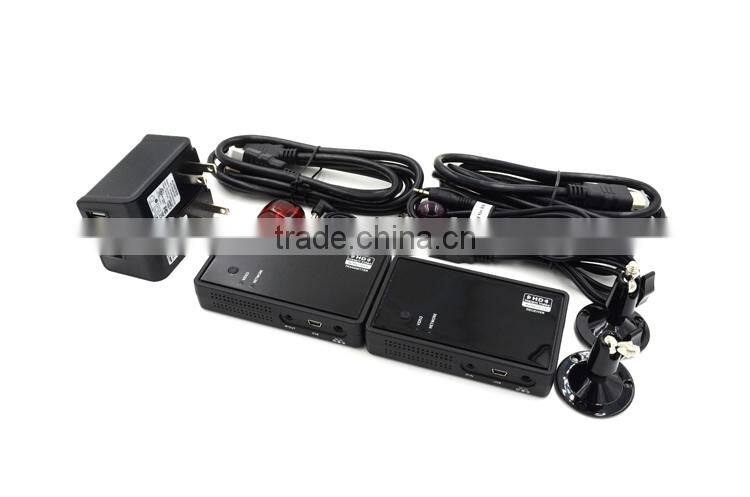

Introduction

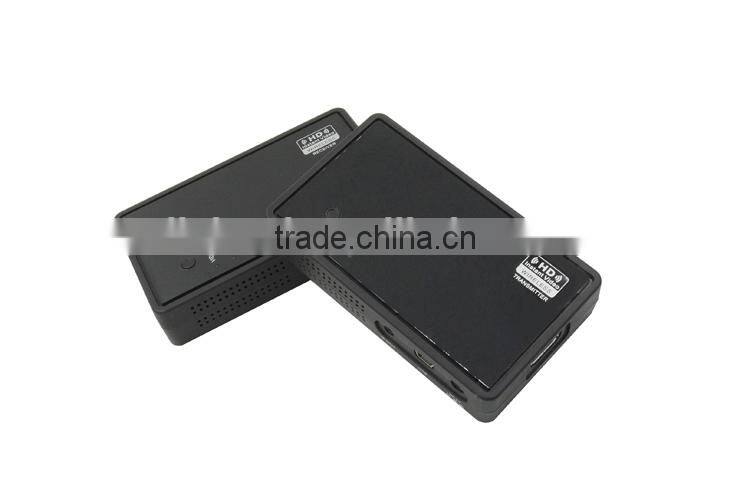

    LM-WHD05 Wireless Transmission Kit enables wireless transmission of video/audio from any HDMI video source such as PC/HDTV to display devices includes HDTV/HD Monitor over the 5GHz band, with very low latency.

   It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments.

   This Wireless HDMI Extender is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.

Features

1. Support HD devices with HDMI input/output, include Blu-ray player, DVD player, PC, laptop, HDTV etc.

2. 5GHz Wireless HD Video Transmission

3. Supports Multi resolution up to 1080p

4. HDMI Input / Output, support multi devices with HDMI

5. Low latency <100ms

6. Effective Range: 50m ( Line of sight )

7. WPS Transmitter – Receiver Pairing

8. Plug & Play – full hardware design, no software is required

9. AES128/256 Encryption

Specification

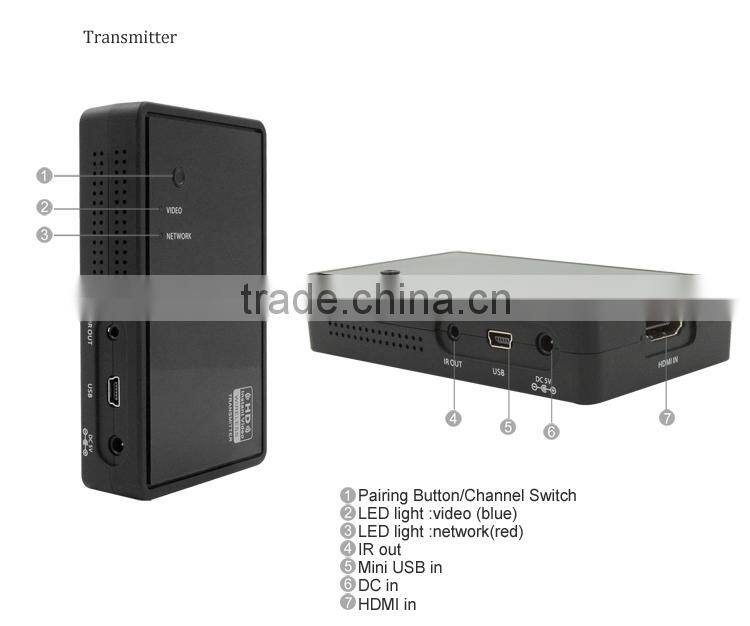

 Panel Description

1. Pairing:

For Devices paring, use a pinpoint to press for about 5 seconds then release, the devices will be paring.

2. LED Indicators:

Red for Networking; Blue for Video

4. IR Out Socket:

Connect with IR extension connector to transmit IR signal

5. USB:

   USB Socket for upgrading

6. DC Power:

Power socket for DC adapter

7. HDMI In:

Connect to HD Video Source device such as DSLR/DV, Blu-ray Player, Laptop, HDTV etc.

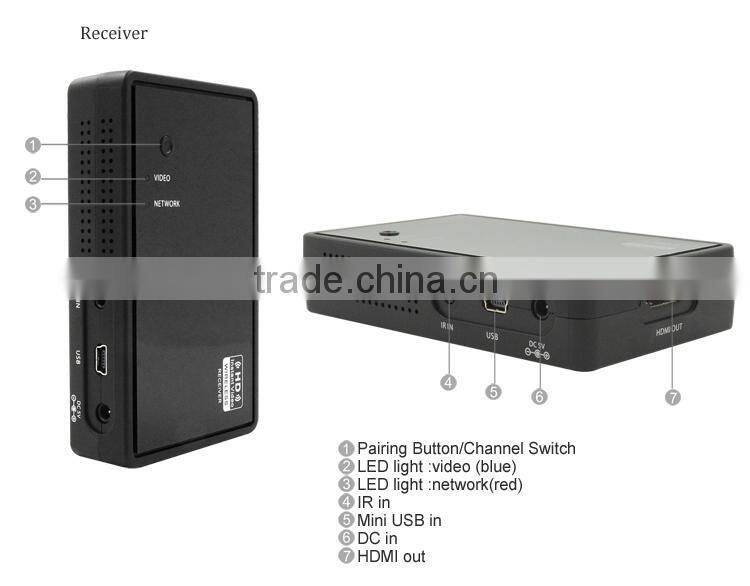

1. Pairing:

For devices paring, use pin to push for about 5 seconds then release, the devices will be paring.

2. LED indicators:

Red for Networking; Blue for Video.

4. IR In Socket:

Connect with IR extension connector to receive the IR signal

5. USB:

USB socket for upgrading.

6. DC Power:

Power socket for DC adapter

7. HDMI Output:

  Connect to HD display device such as HDTV, Projector, LED Screen etc.

Indicators

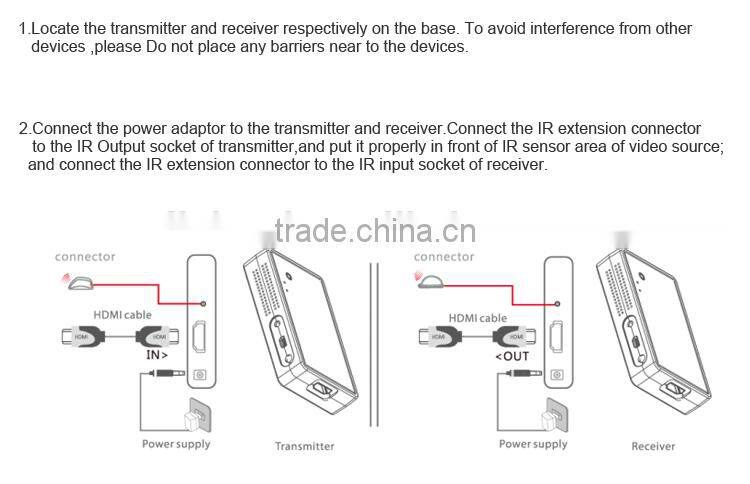

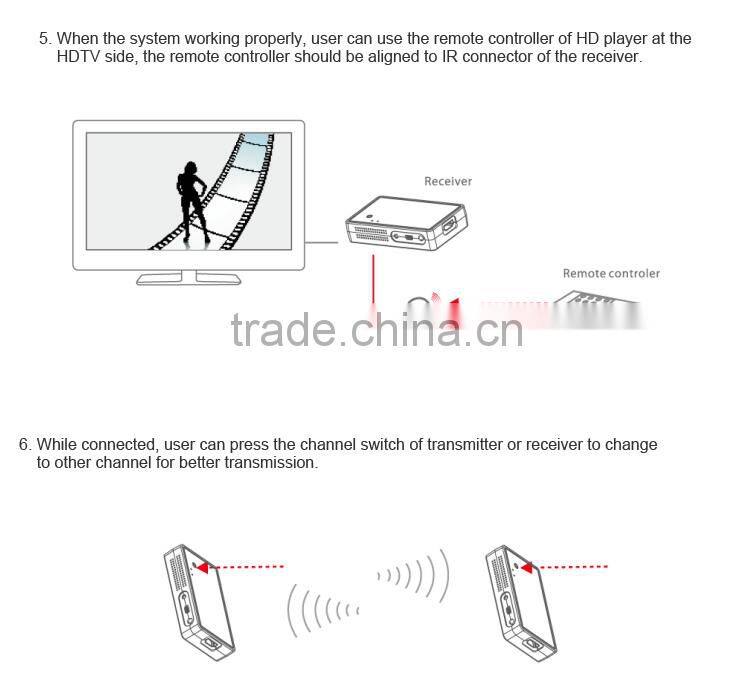

Connecting and Operating

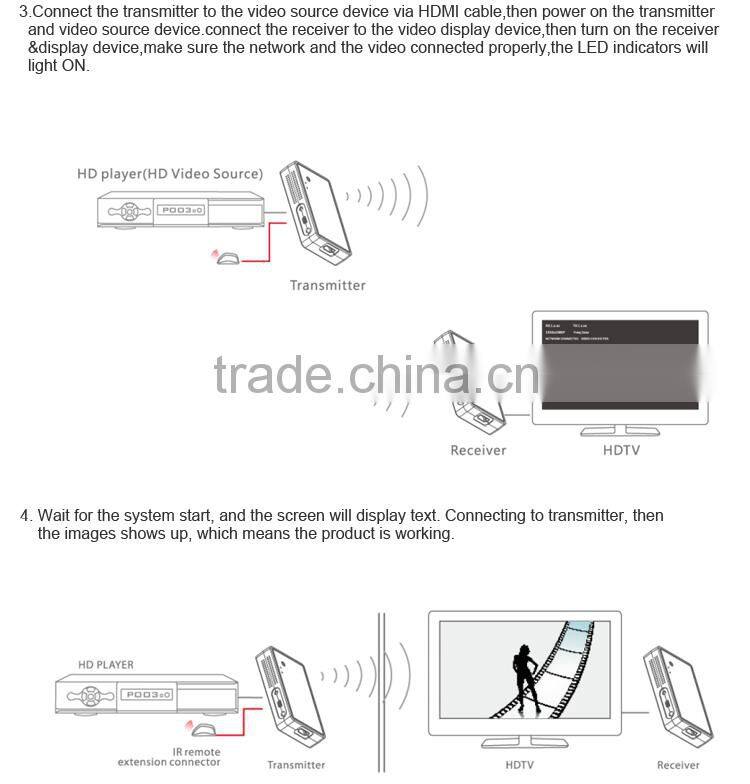

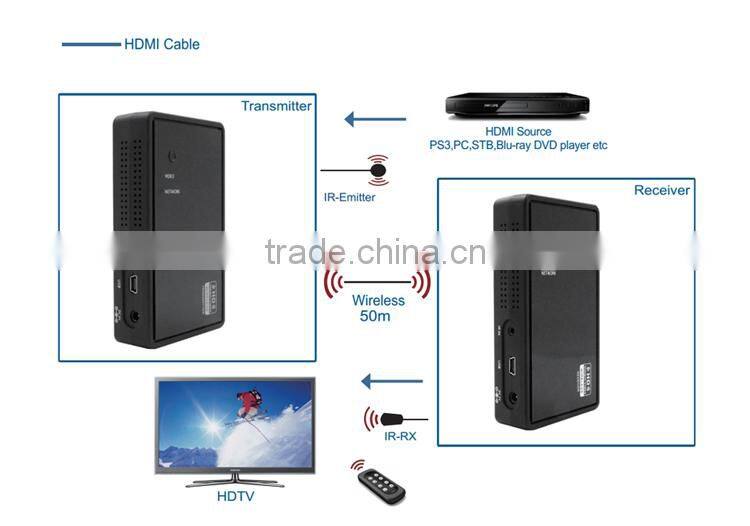

Connection Diagram
