LINK-MI LM-EX60-3DIR 60m 3D Video HDMI Extender Transmitter and Receiver Over Cat6 With IR Control
- Shenzhen
- Money Gram Credit Card PayPal
You May Like
-
LINK-MI LM-EW60-3DIR North American Wall Plate 60m HDMI IR Extender 3D
-
LINK-MI LM-DT100N HDMI 1.3 Full HD Video HDMI Extender 120m Over TCP IP
-
China Supplier LM-EW06 50m HDMI Extender Wallplate Over Cat5e/6 Following North American Wall Plate Standard
-
LM-EPN22 Cascade 1080p HDMI Transmitter Over IP,120m HDMI Over Gigabit Ethernet Extender
-
China 120m POE HDMI Over IP TCP Transmitter and Receiver With H.264 Encoder
-
LM-EX11 50m HDMI Extender Over Cat5e x1 With EDID Copy Function
Product Details
| Brand Name | LINK-MI | Model Number | LM-EX60-3DIR | |
| Place of Origin | Guangdong, China |
Product Description
Specificaton
HDMI Extender Over Cat6
♦ Extend HDMI Signal Up to 60m Over Single Cat5e/6 Cable
♦ Support 3D Video, With IR
♦ Signaling Rates Up to 2.25Gbits at 1080p
LINK-MI LM-EX60-3DIR 60m 3D Video HDMI Extender Transmitter and Receiver Over Cat6 With IR Control
Introduction
LM-EX60 HDMI Extender Over Cat6 is a high quality HDMI Extender, includes one transmitter and one receiver, allows HDMI audio/video signals and IR to be transmitted over a 60m single cat5e/6 cable. This HDMI Extender Over Cat6 with infrared control, supports 3D 1080P HD Video, signaling rates up to 2.25Gbits at 1080p.

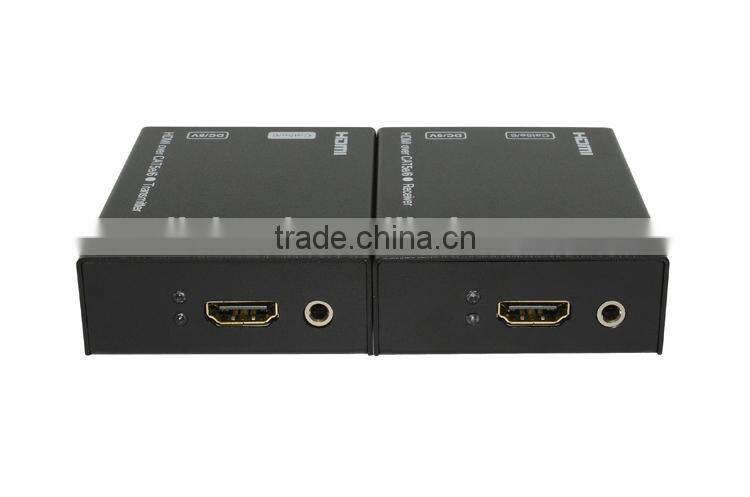

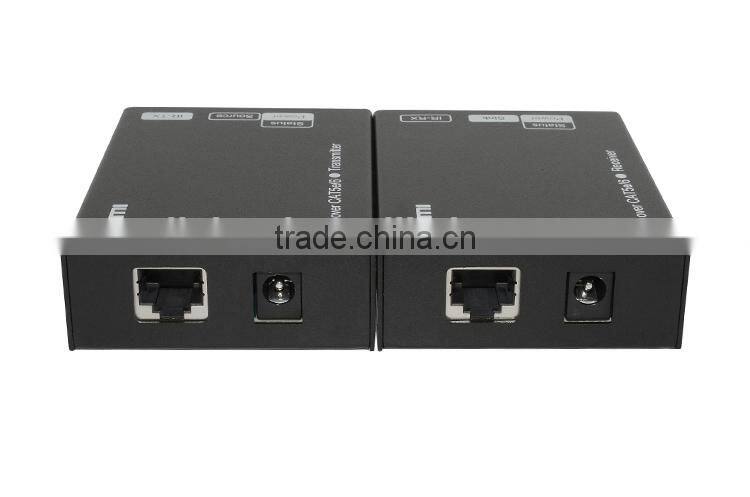

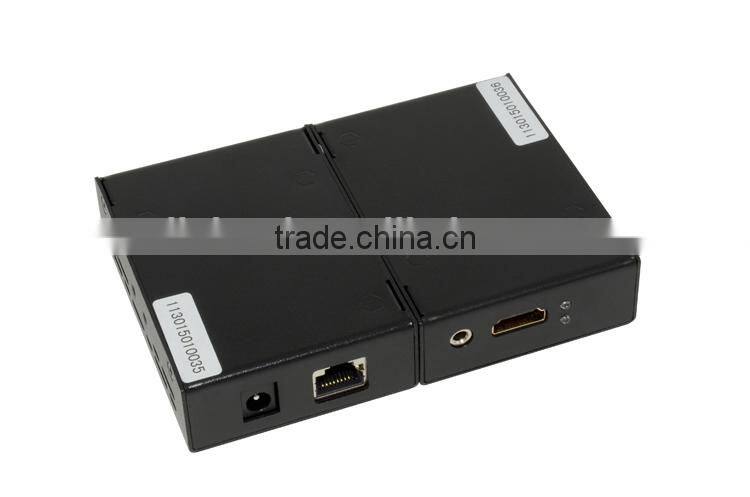

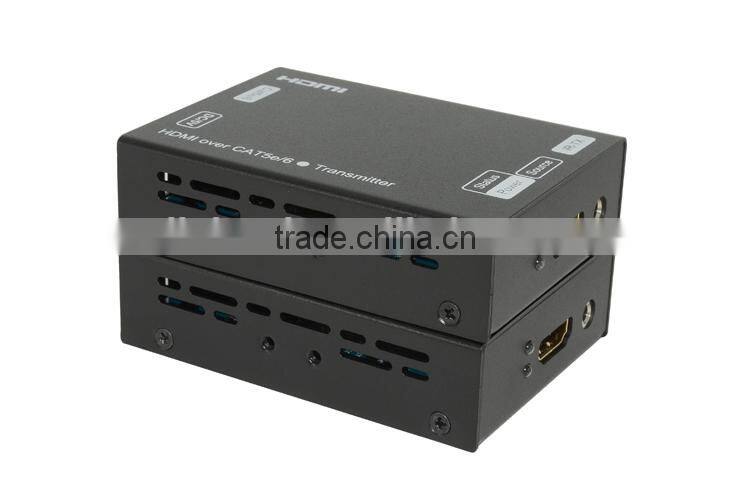

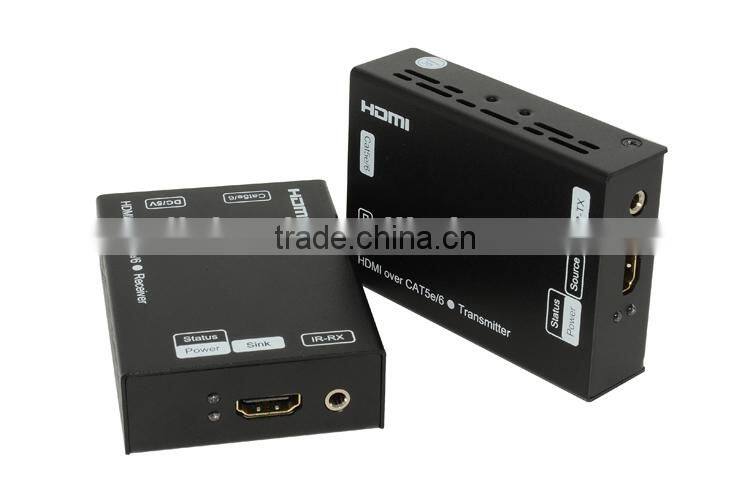

Product Picture
Model No.: LM-EX60-3DIR
Product Type: HDMI Extender Over Cat6
HDMI Extender Over Cat6
Features
♦ Each set includes one transmitter and one receiver
♦ Allows HDMI Audio/Video Signals and IR to be transmitted over a 60m single cat5e/6 cable ( UTP Cable )
♦ Use single cat5e/6 cable to substitute HDMI cable to achieve long distance transmission, cat5e/6 cable follows the standard of IEEE-568B
♦ Transmission distance reaches up to 60 meters under the video format of 1080p
♦ Auto-adjustment of feedback, equalization and amplify
♦ Signaling Rates up to 2.25Gbits at 1080p
♦ With Infrared control signal passing through function
♦ Supports 3D Video Format
Specification
| Product Type | HDMI Extender Over Cat6 |
| Operating Temperature Range | -5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit ) |
| Operating Humidity Range | 5 to 90% RH ( No Condensation ) |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC Signal | 5 Volts P-P ( TTL ) |
| Video Format | DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p/3D Video |
| Video Output | HDMI |
| Audio Format | DTS-HD Master Audio, Dolby True-HD etc. |
| Transmission Distance | 1080P 8-bit 60m ( Max. ) Over Cat5e/6/24AWG/Solid ( Recommend to use 23AWG Cat6 Cable ) |
| Power Consumption | 3 watts ( Max. ) |
| IR Wavelength & Frequency | Wavelength: 940nm; Frequency: 38KHz |
| DImension ( L*W*H ) | 115*70*35mm |
| Net Weight | 260g |

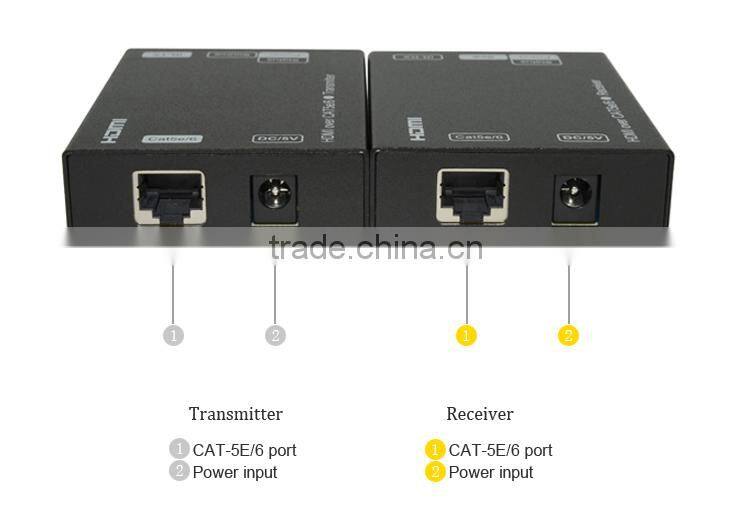

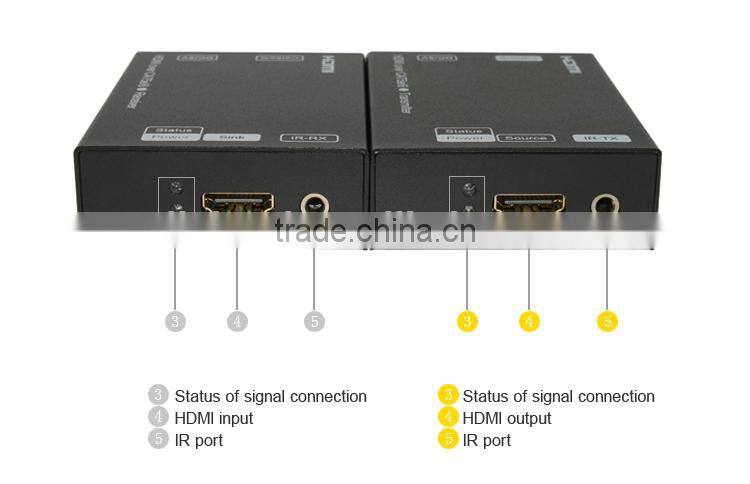

Panel Description
Connection and Operating
♦ Connect the HDMI Input Source ( Such as HD-DVD/PS3/STB etc. ) into transmitter over HDMI Cable
♦ Connect the output of transmitter and input of receiver over Cat5e/6 cable
♦ Connect the HDMI Output ( Such as: HD-LCD/HD-DLP ) into receiver over HDMI Cable
♦ Connect the IR TX Cable into " IR TX " port of the transmitter ; Connect the IR RX cable into " IR RX " port of the receiver
♦ Connect Power Adapter into the transmitter and receiver

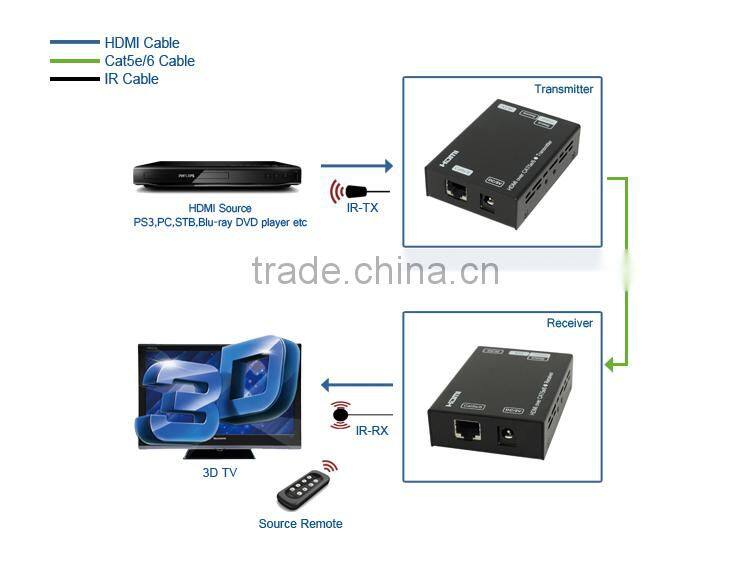

Wiring Diagram
Packing Contents: HDMI Extender Over Cat6
♦ Main Unit. HDMI Extender Over Cat6
♦ Operating Instructions
♦ IR TX Unit ( IR Emitter Cable )
♦ IR RX Unit ( IR Receiver Cable )
♦ 2pcs Power Adapter DC 5V 1A
