LINK-MI LM-MX444 Ultra HD 4K2K 3D Video Audio 4x4 HDMI Matrix Switcher with RS232
Model Number: LM-MX444
Keywords: hdmi matrix switcher
Introduction: hdmi matrix switcher
The LM-MX444-HD4K2K 4×4 Matrix with IR matrix for HDMI routes four Hi-Def sources to any four HDTV displays, supporting 1080p Full HD up to 4K plus all 3D formats, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Each source can be routed to any display using the front-panel push buttons, IR remote control,and RS-232 interface.
Features
1. Supports resolutions up to 1080p@60HZ,48-bit deep color, 4k@30HZ
2. Allows any source to be displayed on multiple displays at the same time
3. Allows any HDMI display to view any HDMI source at any time
4. Dolby True HD and DTS-HD master audio pass through HDMI output
5. Advanced EDID management for rapid integration of sources and displays
6. Multiple switching mode, push-in button, IR remote control,and RS-232 control
7. Easy installation with rack-mounting ears
8. Full 3D pass- through.
9. HDCP compliant
Specifications
Product Type |
4*4 HDMI Matrix Switch ( Router Type) |
Model No. |
LM-MX444-HD4K2K |
Bandwidth |
2.97Gbps per color |
Video Input Connectors |
4*HDMI Type A, 19-pin, female, locking |
Video Output Connectors |
4*HDMI Type A, 19-pin, female, locking |
RS232 Serial Port |
DB-9, Female |
IR Input Ports |
5*3.5mm stereo jack |
IR Output Ports |
4-3.5mm stereo jack |
Rack-Mountable |
Rack ears included |
Dimensions ( W*H*D ) |
256*114*43mm, without feet |
Shipping Weight |
1.0kg |
Operating Temperature |
32 to 104 Degree Fahrenheit ( 0 to 40 Degree Celsius ) |
Storage Temperature |
-4 to 140 Degree Fahrenheit ( -20 to 60 Degree Celsius ) |
Power Supply |
12V/2A DC |

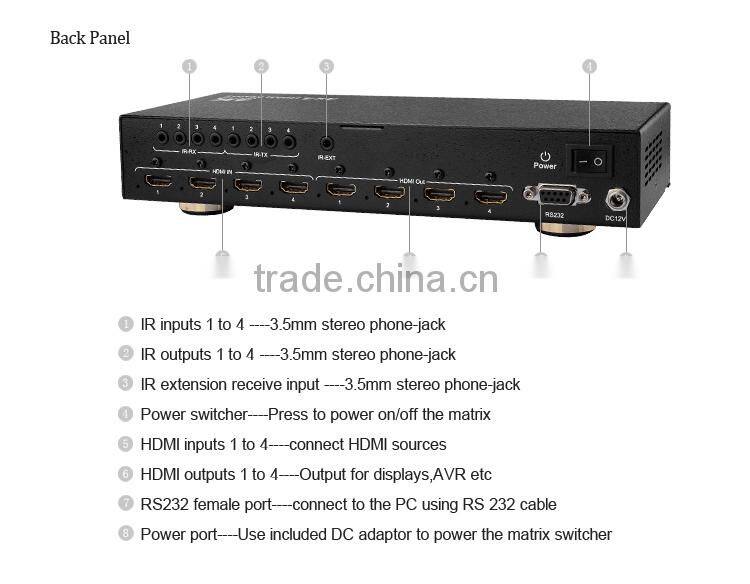

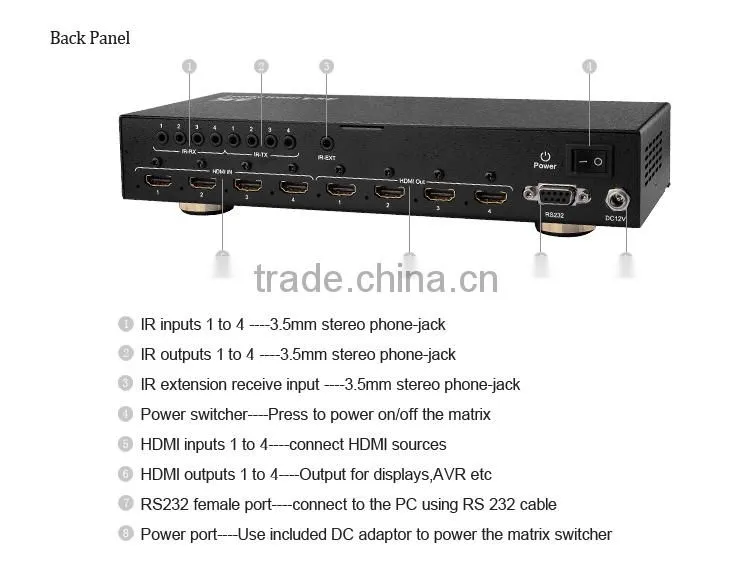

Product Introductions

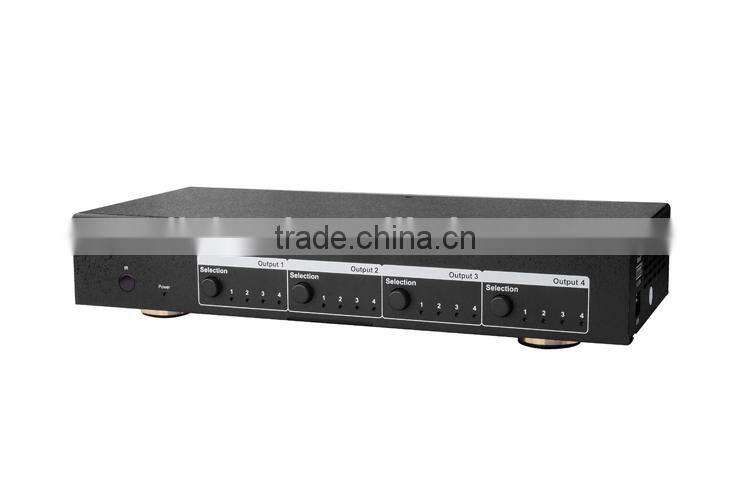

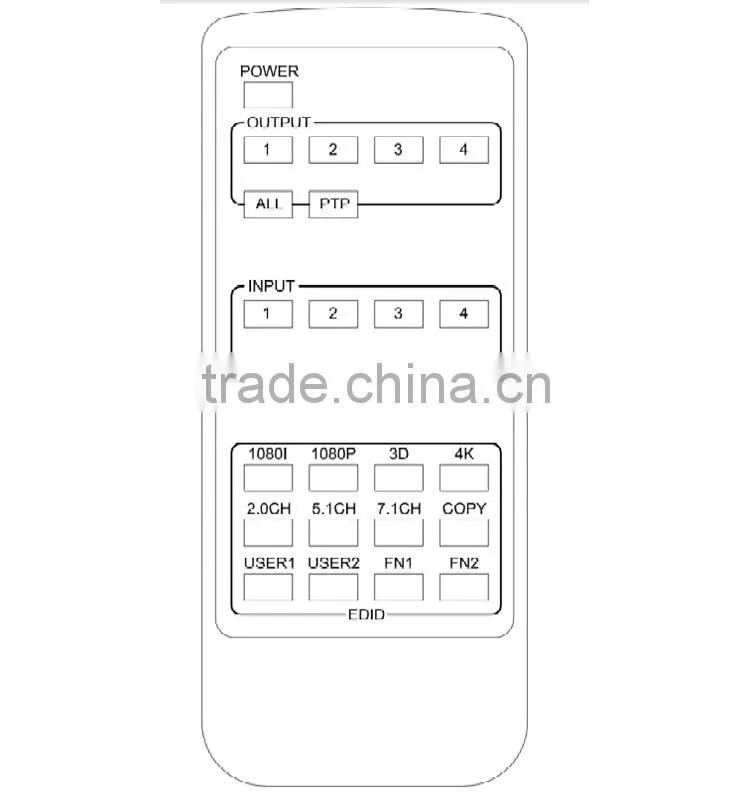

Output and Input select
A. OUTPUT-X select INPUT-Y:
1. Press OUTPUT-X (X means 1 to 4 of outputs)Press INPUT-Y ( Y means 1 to 4 of inputs )
2. Press OUTPUT-X (X means 1 to 4 of outputs) press the left and right arrow buttons to select the input.
B. All outputs select INPUT-Y: Press ALL button in zone OUTPUTPress INPUT-Y button ( Y means 1 to 4 of inputs ), then INPUT-Y switched to ALL OUTPUTS
C. Mirror all inputs and outputs (Ex. Input 1 to output 1, input 2 to output 2, etc): Press PTP button in Zone OUTPUT

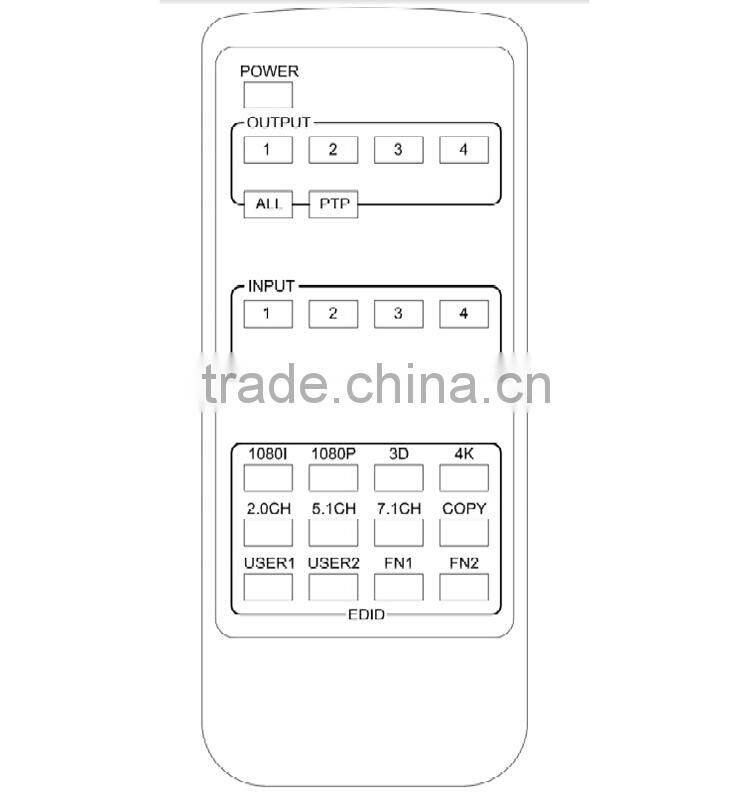

EDID Set Up
A. Fixed EDID to INPUT-Y/ALL
Press 1080I/1080P/3D/4KPress 2.0CH/5.1CH/7.1CHINPUT-Y/ALL button in Zone INPUT
B. Copy EDID of OUTPUT-X to INPUT-Y/ALL
Press COPY buttonPress OUTPUT-X buttonPress INPUT-Y/ALL button
C. User defined EDID to INPUT-Y/ALL
Press USER1/USER2 buttonPress INPUT-Y/ALL
NOTE: Pressing button sequence should be finished in 5 seconds, otherwise, operation discarded.

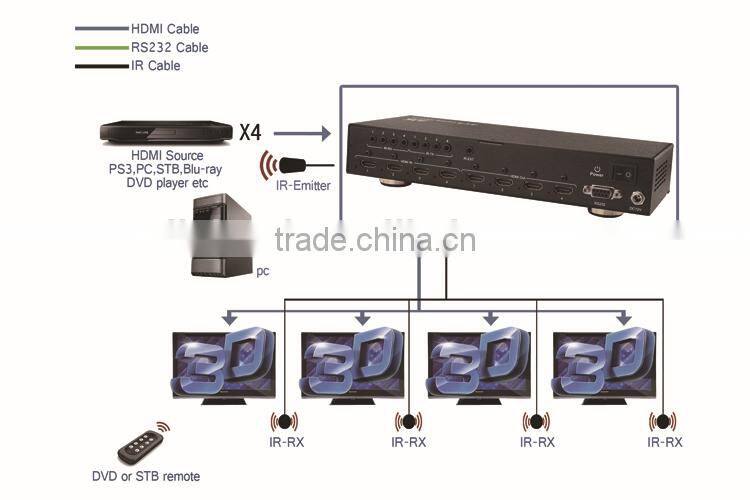

Connection Diagram

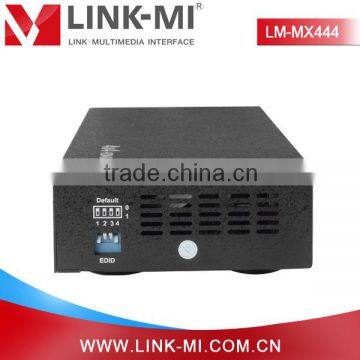

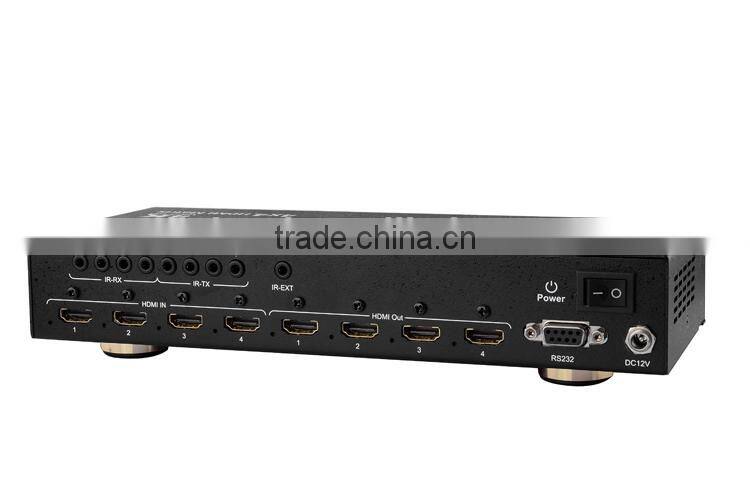

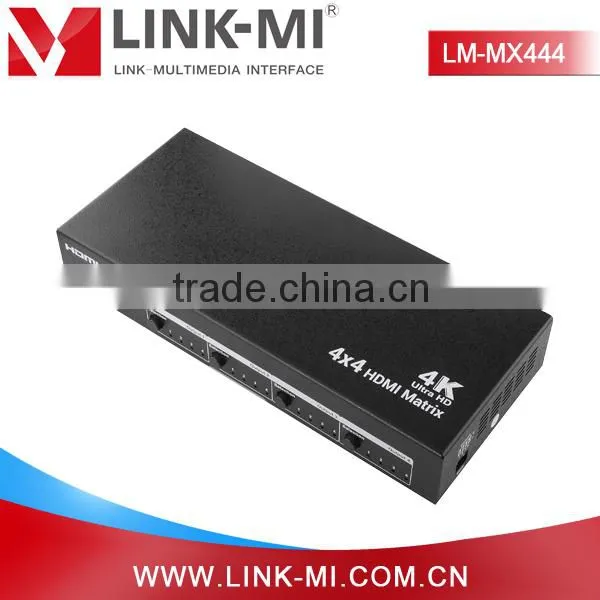

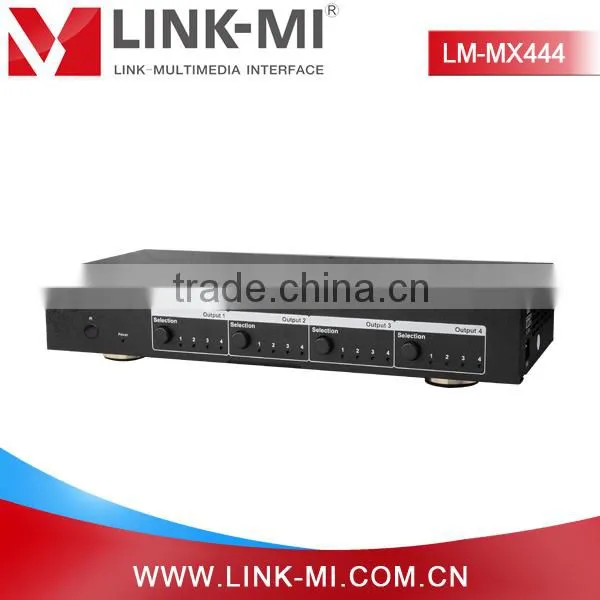

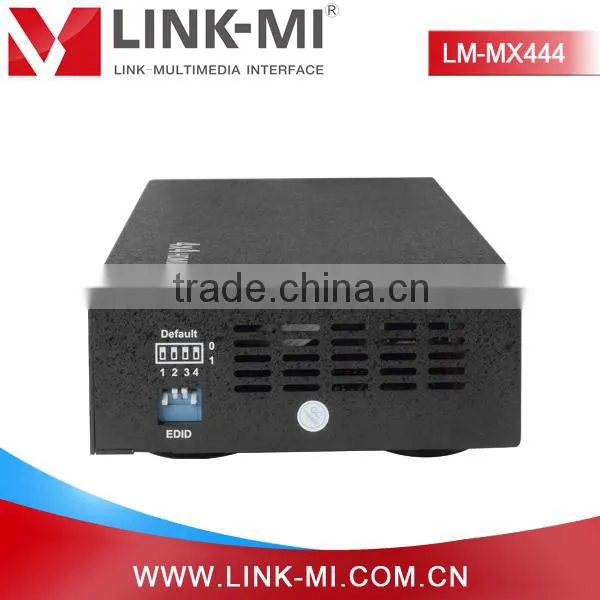

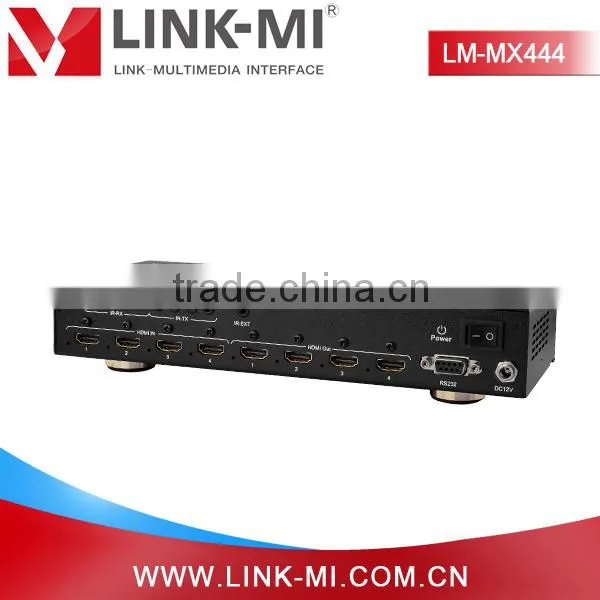

Product Display
PACKING CONTENTS: LINK-MI LM-MX444 Ultra HD 4K2K 3D Video Audio 4x4 HDMI Matrix Switcher with RS232
1. 1x LM-MX444-HD4K2K 4*4 HDMI Matrix Switch
2. 1x 12V DC power supply
3. 1x Remote control
4. 4x IR Transmitter,
5. 5x IR Receiver.
6. 1x mounting kit.
7. 1x CD for control software & user manual.
