LM-GES24 Work with LM-EX22 HDMI Smart Matrix,24-Port 8K MAC Address Ethernet Switch
Model Number: LM-GES24
Keywords: Ethernet Switch
Introductions: Ethernet Switch
LINK-MI LM-GES24 24-Port HDMI Smart Matrix Over Cat6 Cable, which have 24 RJ45 Ports, work with LM-EX22, can supports one to more and more to more. This HDMI Smart Matrix supports default configuration which can be restored to overwrite the current configuration which is working on via Web UI and Reset button of the switch.
Features
(1).Supports default configuration which can be restored to overwrite the current configuration which is working on via Web UI and Reset button of the switch.
(2).Supports user management and limits one user to login.
(3).8K MAC address.
(4).Full-duplex flow control (IEEE802.3x) and half-duplex backpressure.
(5).Supports Unknown Unicast / Broadcast / Multicast Storm Control.
Specifications
Support Standards and Protocols |
IEEE802.3 10Base-T Ethernet IEEE802.3U 100Base-TX Fast Ethernet CSMA/CD Ethernet |
Data Transfer Speed Rate |
FE 100Mbps Half-duplex, 200Mbps Full-duplex |
The Network Medium |
100Base-TX: Cat5 or Better UTP/STP |
Indicator |
Power Indicator LINK/AC T and SPEED Indicator |
Transmission Method |
Memory Forwarding |
MAC Address |
Update Automatically, Support 8K Address |
Packet Forwarding Rate |
Wire-Speed Forwarding |
Power Input |
100-260V, 50/60Hz, 0.6A, AC Input |
Operating Temperature Range |
0 to 40℃ |
Storage Temperature Range |
-40 to 70℃ |
Operating Humidity Range |
10 to 90%RH |
Storage Humidity Range |
5 to 90%RH |
Dimension ( L*W*H) |
225*103*42mm |

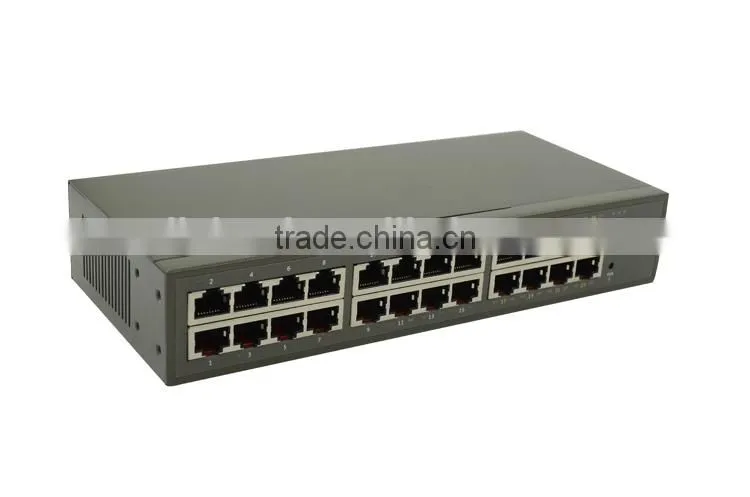

Product Introductions

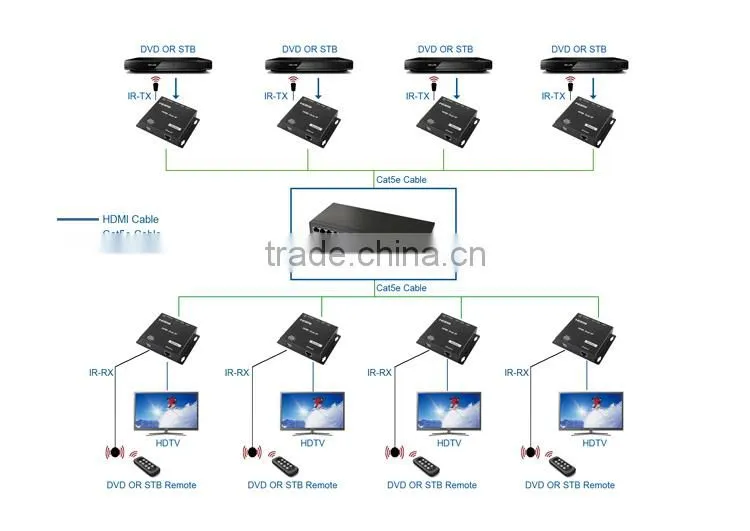

Connection Diagram
Product Display
