HDMI Repeater
Specification
1)Extend HDMI via HDMI cable, the distance up to 50 meters
2)3D Supports and CEC
3)Compatible With VGA
Best CEC LM-EX02 3D 1080P Video Audio Mini HDMI Repeater 50m Via HDMI cable
Model NO.:LM-EX02
Key words: HDMI Repeater
HDMI Repeater
Introduction
LM-EX02 50m HDMI Repeater extend HDMI signal up to 50m via HDMI Cable, supports 3D video, with CEC pass through, 40dB receiver equalization, is a mini high quality HDMI product, easy to use, don't need outside power supply, don't need any system control.
Main feature
1) Extend via HDMI cable, the distance up to 50 meters
2) Compact size
3) No need outside power supply ( The power input is optional )
4) No system control required
5) Support 3D video formats
6) CEC pass-through
7) Signaling rates up to 2.25 Gbps in support of UXGA and 1080p display
8) 40dB receiver equalization
Parameter
| Operating Temperature Range | -5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit ) |
| Operating Humidity Range | 5 to 90% RH ( No Condensation ) |
| Input Video Signal | 0.5-1.0 volts P-P |
| Signaling rates | Up to 2.25 Gbps |
| Compatible Computer Signal | VGA, SVGA, XGA, SXGA, UXGA |
| Support Audio Format | DTS-HD Master Audio, Dolby True-HD etc. |
| Transmission Distance | Extend HDMI cable length as follows: |
| 0 to 50 meter over HDMI cable, 26 AWG STP ( Shielded-Twisted Pair ) | |
| 0 to 36 meter over HDMI cable, 28 AWG STP ( Shielded-Twisted Pair ) | |
| 0 to 30 meter over HDMI cable, 30 AWG STP ( Shielded-Twisted Pair ) | |
| Auto Equalization | Up to 40 dB at 825 MHz ( 1.65 Gbps ) |
| Power Consumption | 0.7 watts ( Maximum ) |
| Dimension ( L*W*H ) | 52*36*19mm |
| Net Weight | 16.5g |
| Gross Weight | 34g |
| Gift box measurement | L7.5*W2.8*H7.5cm |
| Master carton measurement | L39.5*W30.5*H17.5cm, 100pcs/CTN |
Synopsis
This LINK-MI compact and high-performance HDMI Repeater Extender , the transmission distance up to 50m, It can eliminate digital noise (sparkles) to obtain perfect HDTV picture after long cable transmission.It offers HD video solution for data control center;conference rooms;education and training; Showroom display/control;Home entertainment systems etc.

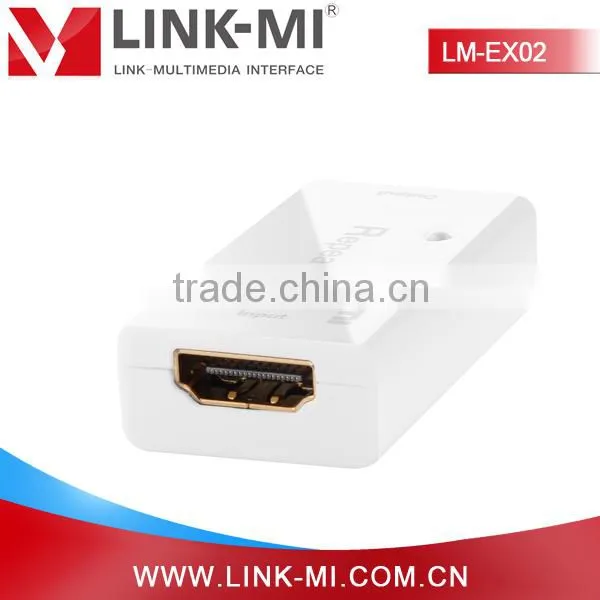

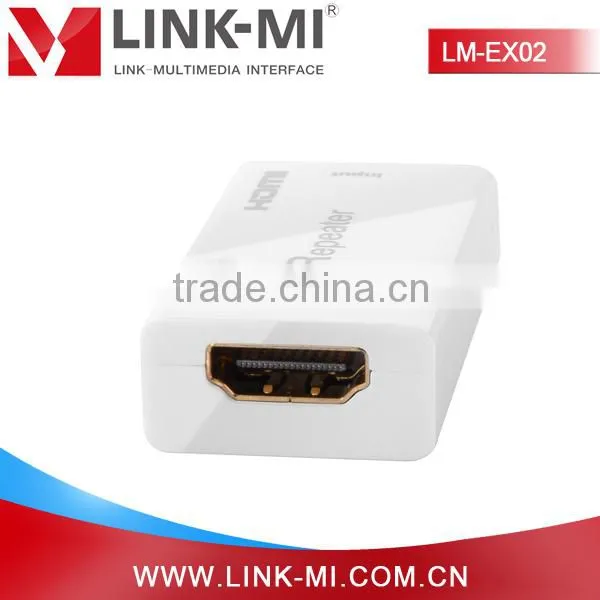

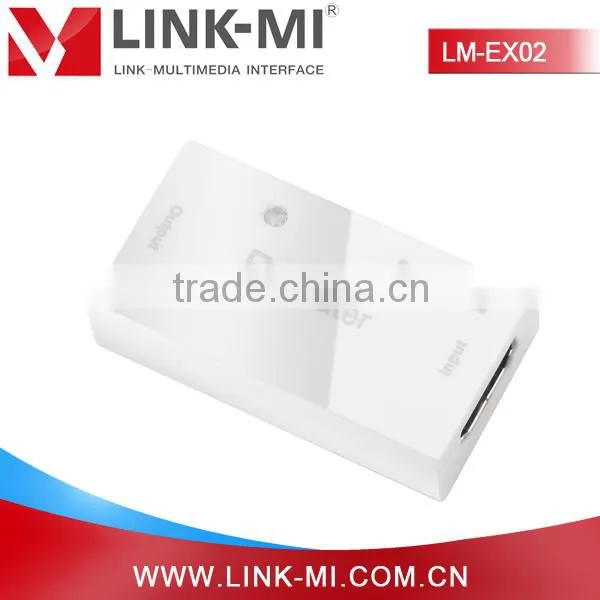

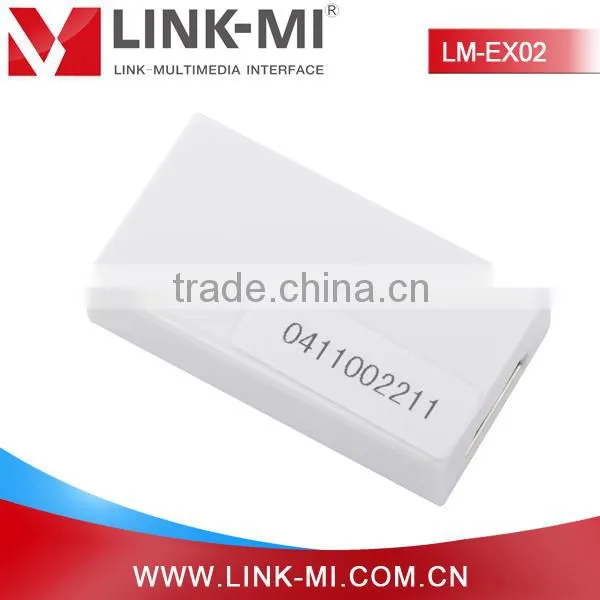

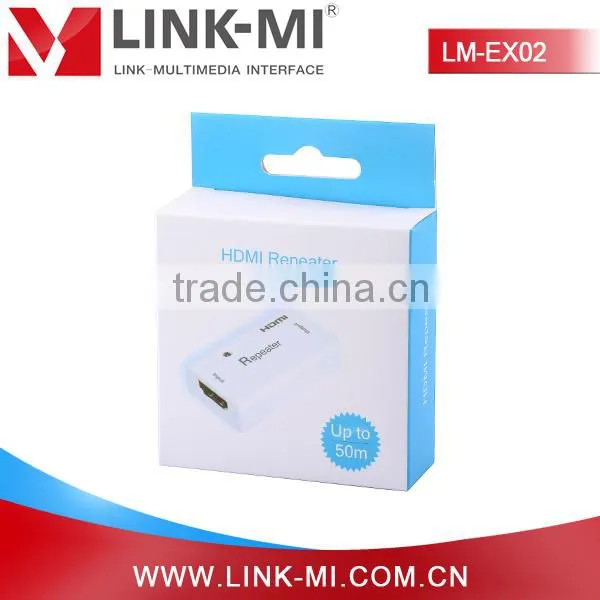

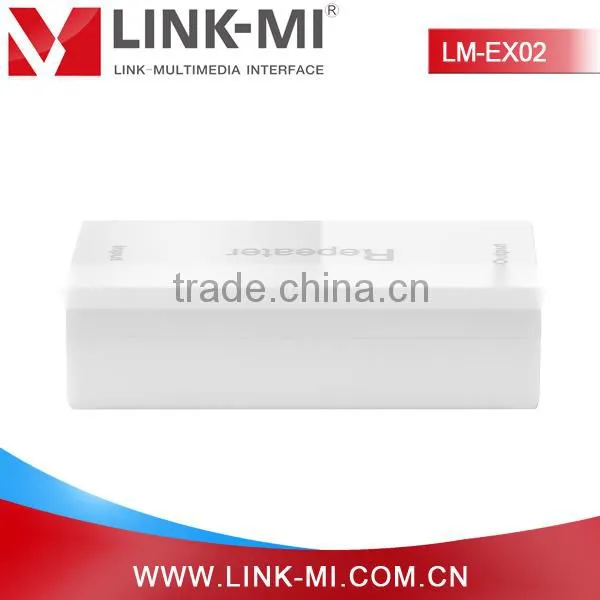

Product photo
Connection diagram
Looking forward to your order about HDMI Repeater Extender LM-EX02
