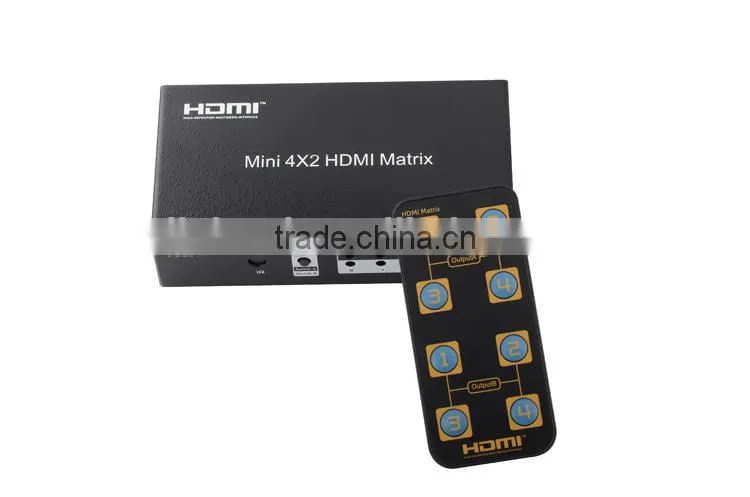

LINK-MI LM-MX03 HDMI 1.3 HDCP 2.0 High Definition Audio Video Mini HDMI Matrix 4x2
Model NO.:LM-MX03
Keyword: hdmi matrix switch
Product Name: hdmi matrix
Product NO.: LM-MX03
Main feature
1. 4 HDMI inputs,2 HDMI standard outputs
2. High Definition Audio support: Dolby TrueHD, and DTS-HD Master Audio
3. The 2 HDMI output ports can be from the same or different sources.
4. Manual or remote select source input signal to different sink.
5. Auto Signal Enhancement feature can improve signal quality after long distance transmission.
6. With remote controller
7. High-definition Resolutions support: HDTV - up to 1080p
8. Support 3D video format(Side-by-Side Horizontal )
9. Supports 30/36bit deep color display
Sprcification
Operating Temperature Range |
-5 to +35℃(+23 to +95℉) |
Operating Humidity Range |
5 to 90%RH (No Condensation) |
Input Video Signal |
0.5-1.0 Volts P-P |
Input DDC Signal |
5 volts p-p(TTL) |
Data transfer speed rate |
6.75Gbps(Maximum) |
Video Format Supported |
DTV/HDTV: 480i/576i/480P/576P/720P/1080i/1080P 3D video support((Side-by-Side Horizontal ) |
Video Output |
HDMI +HDCP2.0 |
Support Video Color Format |
xv-YCC/deep color 36bit |
Support Audio Format |
DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD |
Transmission Distance |
15m(Maximum)over standard HDMI cable/26AWG |
Power consumption |
5watts(Maximum) |
Dimension (L×W×H) |
115x60x32mm |
Net Weight |
245g |
Connection and operation
1) Connect the HDMI signal sources(Such as PS3,STB etc) into HDMI input.
2) Connect the cables from your displays (monitor or projector) into the HDMI outs of the output A and output B.
3) Plug the 5VDC power supply into Power input and the unit is ready to use .
4) Use the remote controller or press buttons to select input signal source for output A and output B

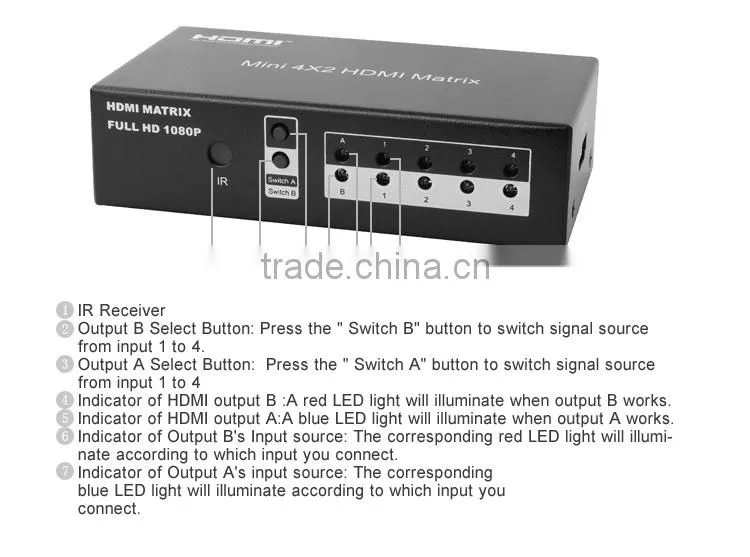

Panel description

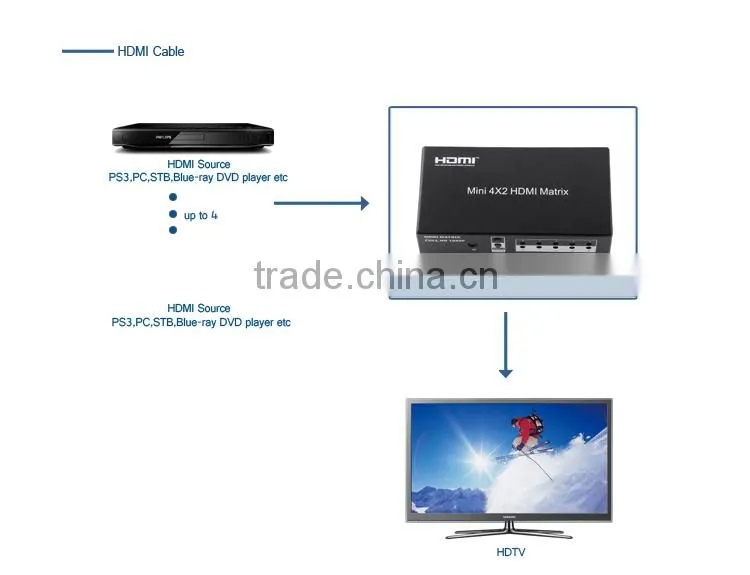

Connection diagram
Package diagram
1) Main Unit. Mini 4x2 HDMI Matrix
2) 5VDC 2A Power Supply.
3) Operating Instructions

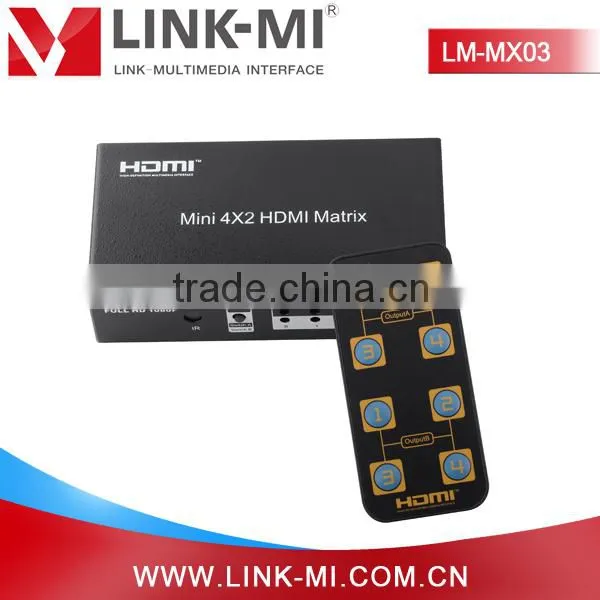

4) Infrared Remote Controller
