Specifications

paper cup, paper carton,paper bag,milk wide web flexo press1.Easy operation
2.Low power consumption
3.Fully Auto,High Effiency

paper cup, paper carton, paper bag,milk wide web flexo



1. Features:

This machine is a printing machine which adopts flexible photosensitive resin plates,

rubber plates as the base material, anilox rollers for transferring ink, liquid ink for printing.

It is controlled centrally by PLC system and generally consists of unwinding section,

in feed section, printing section, drying section, outfeed section, rewinding section

and control section. This machine is an ideal machine for printing paper cup, carton,

paper bag, paper package, and so on.

2. Advantages:

1)Unwinding station
2)Electronic rectifying system(imported from America)
3)Unwinding braking system(magnetic powder braking-imported original)
4)Manual tension control unit
5)Printing unit
6)Output tension unit
7)Still image inspecting system(imported from America)
8)Catwalk
9)Rewinding unit

3.Technical Parameters:



MODEL	WIDE WEB SERIES
	YH810	YH1000	YH1200
Max.Web Width	825mm	1015mm	1215mm
Max.Printing Width	810mm	1000mm	1200mm
Max.Die-cut Width	810mm	1000mm	1200mm
Printing Repeat Length	260-710mm	260-710mm	260-710mm
Die-cut Repeat Length	260-710mm	260-710mm	260-710mm
Max. Unwinder Diameter	1524mm	1524mm	1524mm
Max. Rewinder Diameter	1524mm	1524mm	1524mm
Gearing Size	1/8CP	1/8CP	1/8CP
Max. Mechanical Speed	152m/min	152m/min	152m/min
OD of Web Roller	100mm	100mm	100mm
Main Drive Motor	15-18kw	20-30kw	20-30kw
Lubricating System	auto	auto	auto
Air Pressure	0.6mp	0.6mp	0.6mp
Power Required	380v3ph50hz	380v3ph50hz	380v3ph50hz

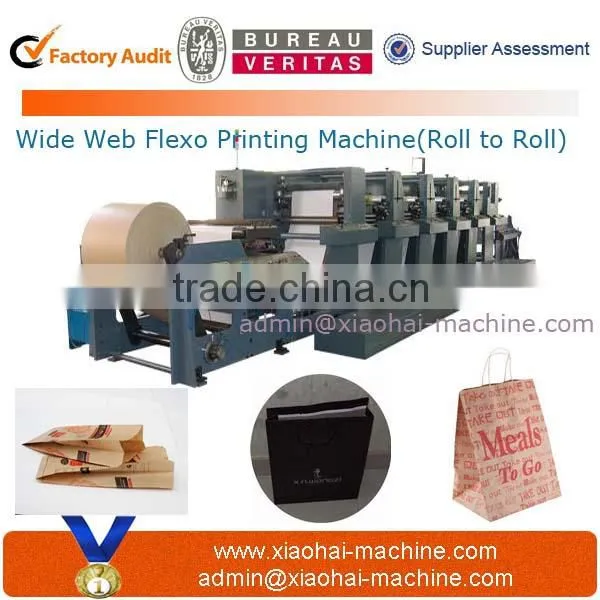

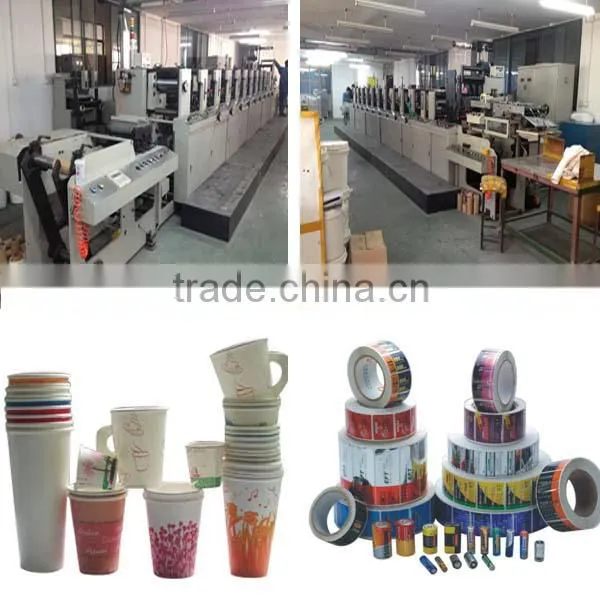

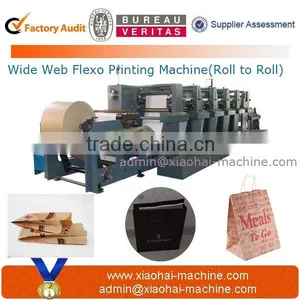

4. Machine Pictures:





5.Sample Pictures:









6.Machine Package Pictures:













We are specializing in making paper bag making production line, including paper bag making machine, flexo printing machine, rope making machine and handling making machine etc.

We have both paper bag making machine with roll feeder and sheet feeder.



1. Factory Show:



2.Certificates





3. Advantages&Service



1)We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.

2)Machines with good quality in one year, life-long maintenance.

3We have many machines can be monitored via the Internet, solve customer requirements

 in a timely manner.

4We have several senior,continuous innovation and reform, in order to ensure the quality of

mechanical stability.

5)Undertake various non-standard machinery, solve the customers' requirements.
