Specifications
Wenzhou Six Color Flexo Printing Machine1.Easy operation
2.Low power consumption
3. Fully Automatic,High efficiency
Wenzhou Six Color Flexo Printing Machine
1. Features:
The flexo printing machine is suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper,etc.
It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
2. Advantages:
1.simple operating, soft starting, accurate color register.
2.meter counter can set printing quantity, automatic shutdown, automatic stop-off material.
3.pneumatic landing plate cylinder, automatic mixing ink after lifting.
4.the knurled cylinder with ink, ink evenly.
5.Reliable drying system coordinated with high-speed operation, automatic shutdown circuit. 6,360 degrees continuous and adjustable longitudinal photo checking device.
7. frequency control, adapt to different printing speeds.
8. the roller seats and rewind shelves are loaded moving and stop buttons, easy to operate when the machine is installed.
3.Technical Parameters:
Model of Machine |
YT-6600 |
YT-6800 |
YT-61000 |
Max.Width of Substrate |
600mm |
800mm |
1000mm |
Max.Printing Width |
560mm |
760mm |
960mm |
Range of printing Length |
191-914mm |
191-914mm |
191-914mm |
Max.Diameter of web |
φ 450mm |
φ 450mm |
φ 450mm |
Printing Speed |
5-50m/min |
5-50m/min |
5-50m/min |
|
Plate Thickness(both side adhesive tape included) |
2.38mm |
2.38mm |
2.38mm |
Total Power |
13kw |
15kw |
18kw |
Weight of Machine |
3500kg |
4200kg |
5000kg |
Overall Dimensions |
3900*1660*2950mm |
3900*1860*2950mm |
3900*2060*2950mm |

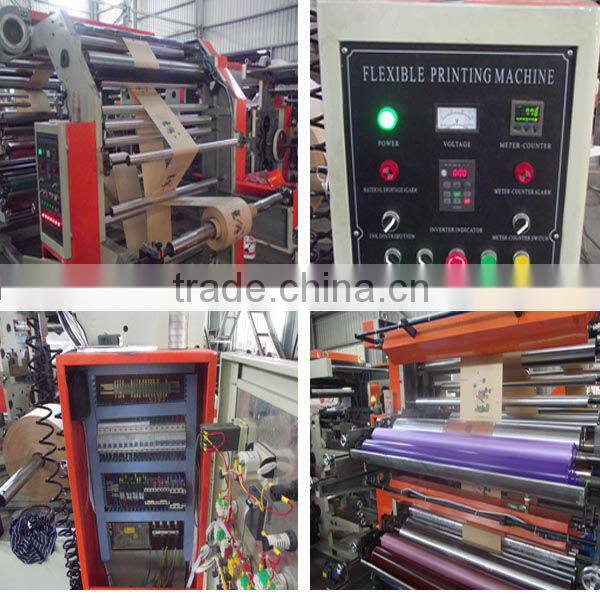

4. Machine Pictures:

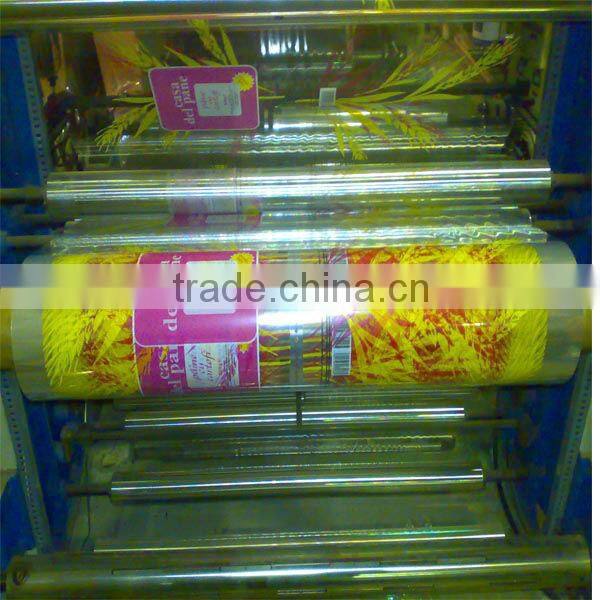

5.Sample Pictures:
6.Machine Package Pictures:
We are specializing in making paper bag making production line, including paper bag making machine, flexo printing machine, rope making machine and handling making machine etc. We have both paper bag making machine with roll feeder and sheet feeder.
1. Factory Show:
2.Certificates
3. Advantages&Service
1.We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2.Machines with good quality in one year, life-long maintenance.
3.We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4 .We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
5.Undertake various non-standard machinery, solve the customers' requirements.
4. Contact Information:
Regarding this High Efficiency Paper Bag Making Machine,
any further information can feel free to contact Jenny.
Contact Person: Jenny Xu
Skype: paperbagmachine
Mobile:+86-15167722977 Tel:+86-577-256933332
Add:Shangwang Industrial, Ruian city, Zhejiang province, China
Web:
